Agricultural Concrete Tanks, Troughs & Farm Infrastructure

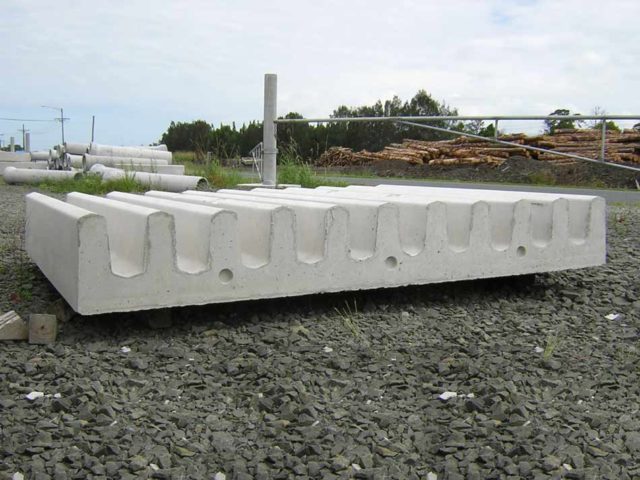

Durable concrete cattle stop installed for farm access control
CATTLE DETERRENTS
SIZES AVAILABLE:

2 Units = 1 Cattle Stop

Individual Unit Specifications

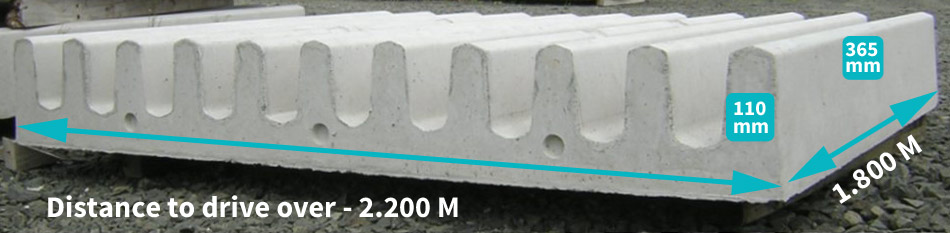

Cattle stop specifications for one unit
Durable concrete cattle stop installed for farm access control
Suggested Installations

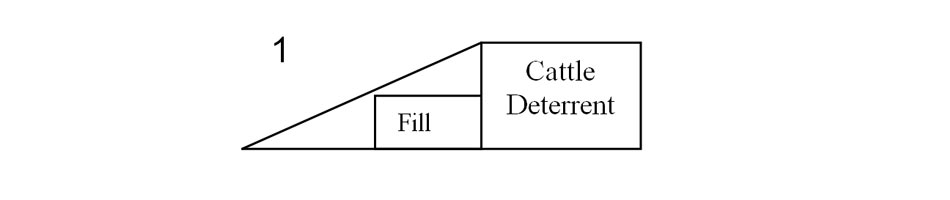

Set cattle deterrent at road level. Build up road to cattle deterrent.
Concrete cattle deterrent for livestock control

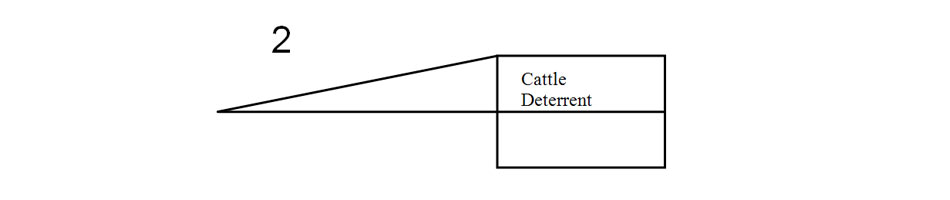

Set cattle deterrent part way into ground. Make hole and place cattle deterrent in. Build up road to cattle deterrent.
Concrete cattle deterrent installed at road level for livestock control
Double chamber concrete water trough for livestock and farm use

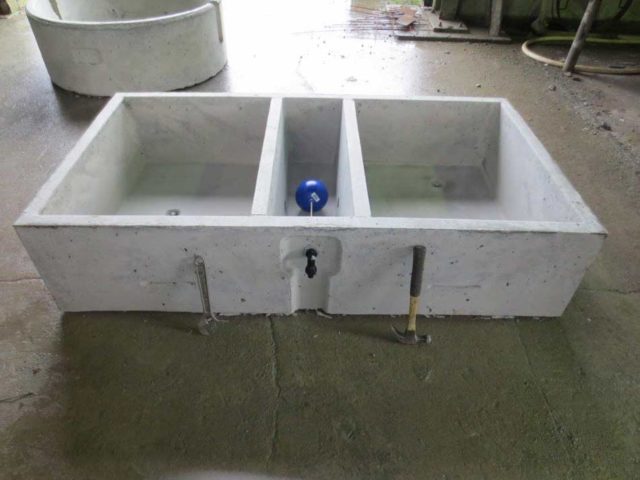

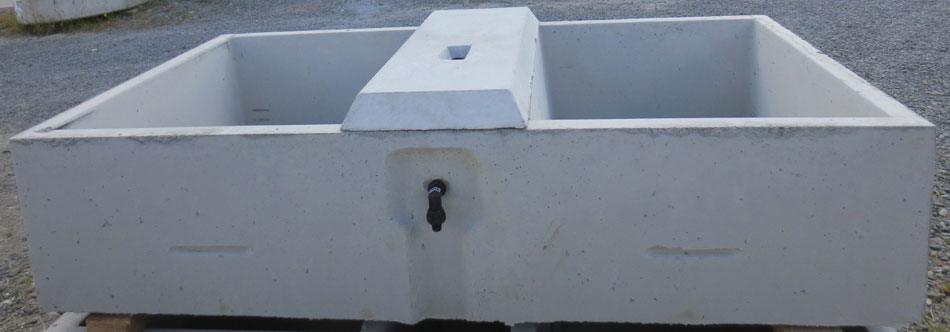

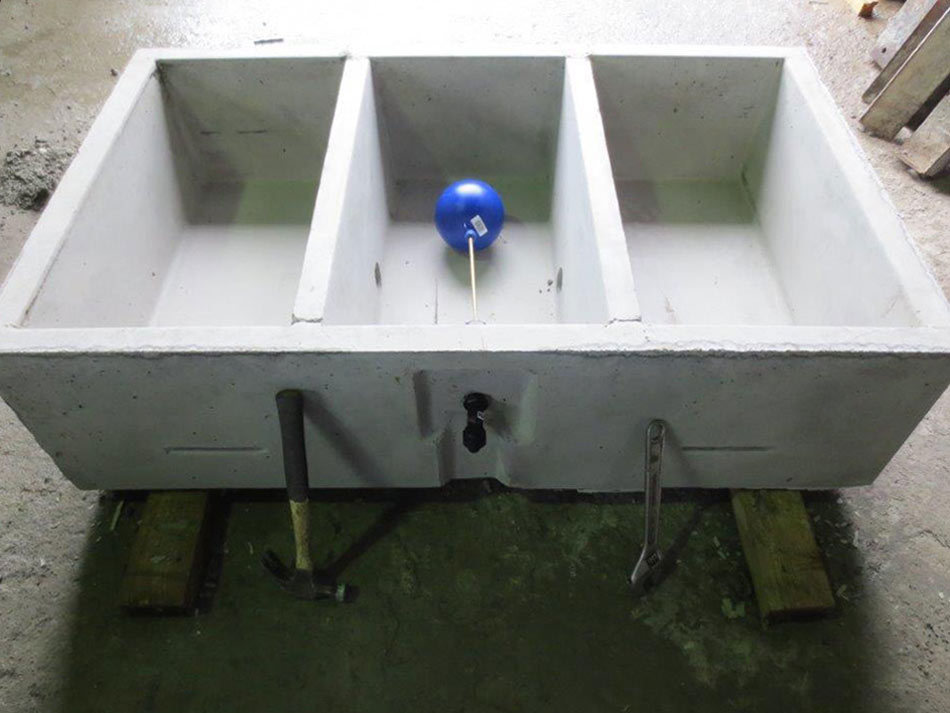

Double Chamber Ballcock Protector Troughs
SIZES AVAILABLE:

Large Double Chamber Trough: 80 GAL (360 Litres)

Small Double Chamber Trough: 45 GAL (210 litres)

Individual Unit Specifications
DOUBLE CHAMBER TROUGH

Lid is included with trough.

Capacity Length Width Height Weight
80 GAL (360 Litres) 1800 mm 960 mm 400 mm 680 kg
Precast concrete water tank manufactured for residential and rural use
SMALL DOUBLE CHAMBER TROUGH

Lid is included with trough.

Capacity Length Width Height Weight
45 GAL (210 litres) 1330 mm 800 mm 350 mm 410 kg
Double chamber concrete water trough for livestock and farm use

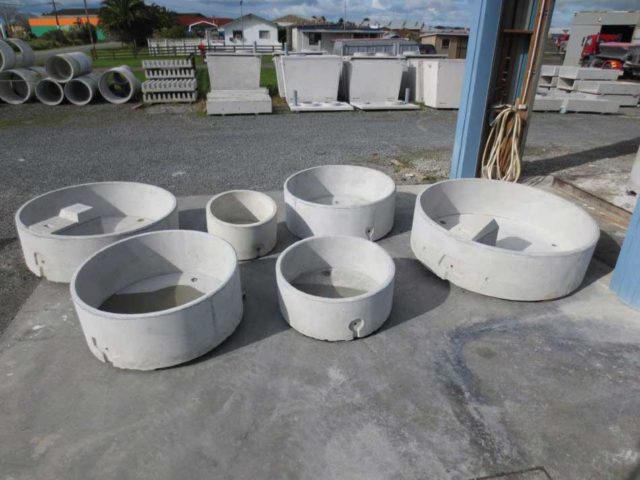

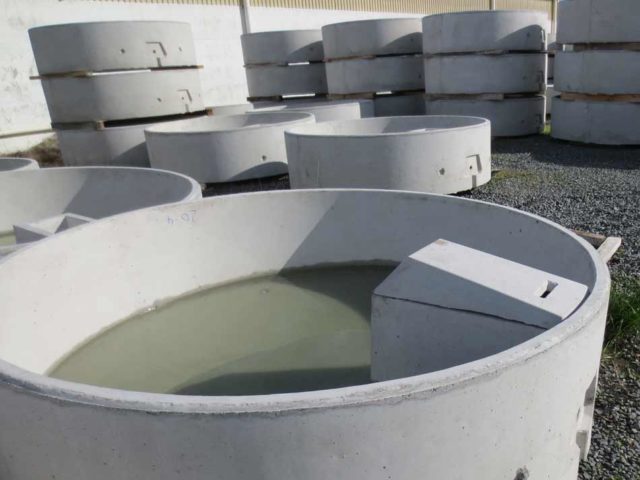

Precast concrete water trough designed for long-lasting farm use
SIZES AVAILABLE:

We manufacture water trough sizes from 54 litres (12 gal) to 3195 litres (700 gal).

This is a high quality concrete product made on site.

Concrete livestock trough for reliable water supply Precast concrete water trough designed for long-lasting farm use
Concrete silage feeder designed for efficient livestock feeding
Concrete Silage Feeders- Cattle
SIZES AVAILABLE

There are 2 different types of endless silage feeders, wide or narrow. They can be as long or short as the customer needs, we make the ends when it is the length required. The wide ones the cows can feed off both sides, the narrow one is for up along a fence line.

A farmer sucessfully made a crossing bridge using our wide silage feeders. Find out more.

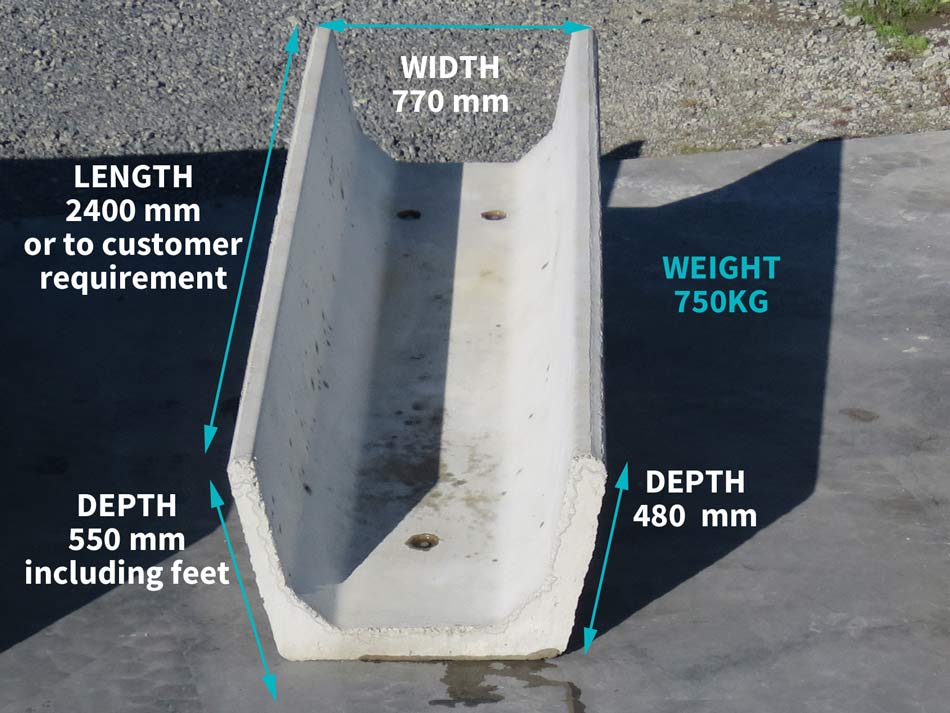

Narrow Concrete Silage Feeder
  • Length: 2400 mm or to customer requirements
  • Width: 770 mm
  • Depth: 480 mm
  • Depth including Feet: 550 mm
  • Weight: 750 kg

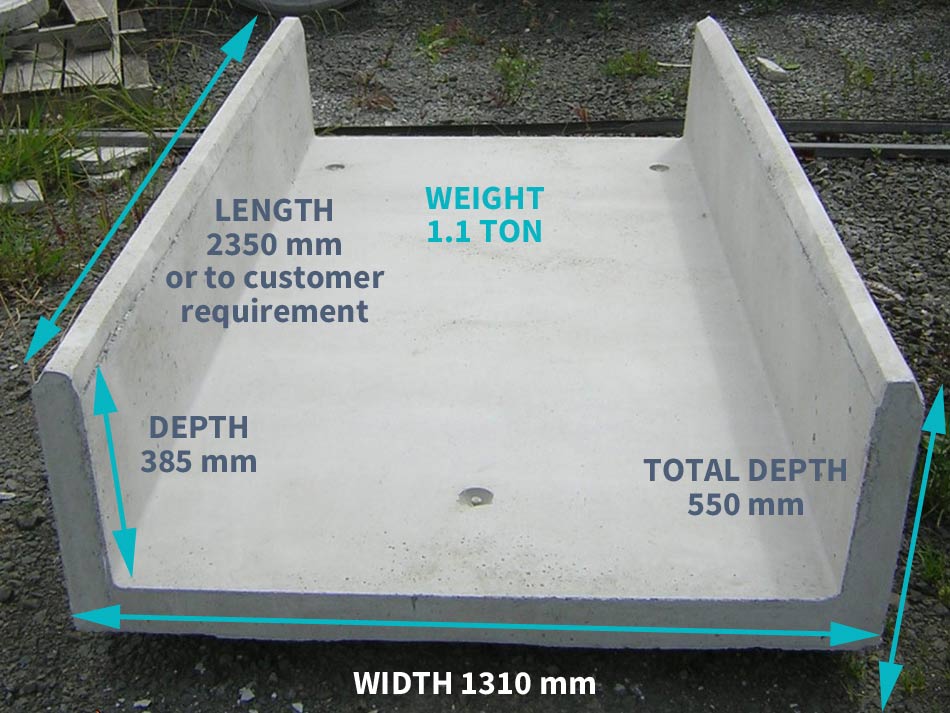

Wide Concrete Silage Feeder
  • Length: 2350 mm or to customer requirements
  • Width: 1310 mm
  • Depth: 385 mm
  • Depth including Feet: 550 mm
  • Weight: 1.1 ton
  • Customised Feet - Parallel or horizontal to feeder and 80mm to 200mm high

Please contact us to discuss your project. We look forward to hearing from you.

Narrow concrete feeder for controlled livestock feeding Wide concrete feeder for cattle feeding on farms
