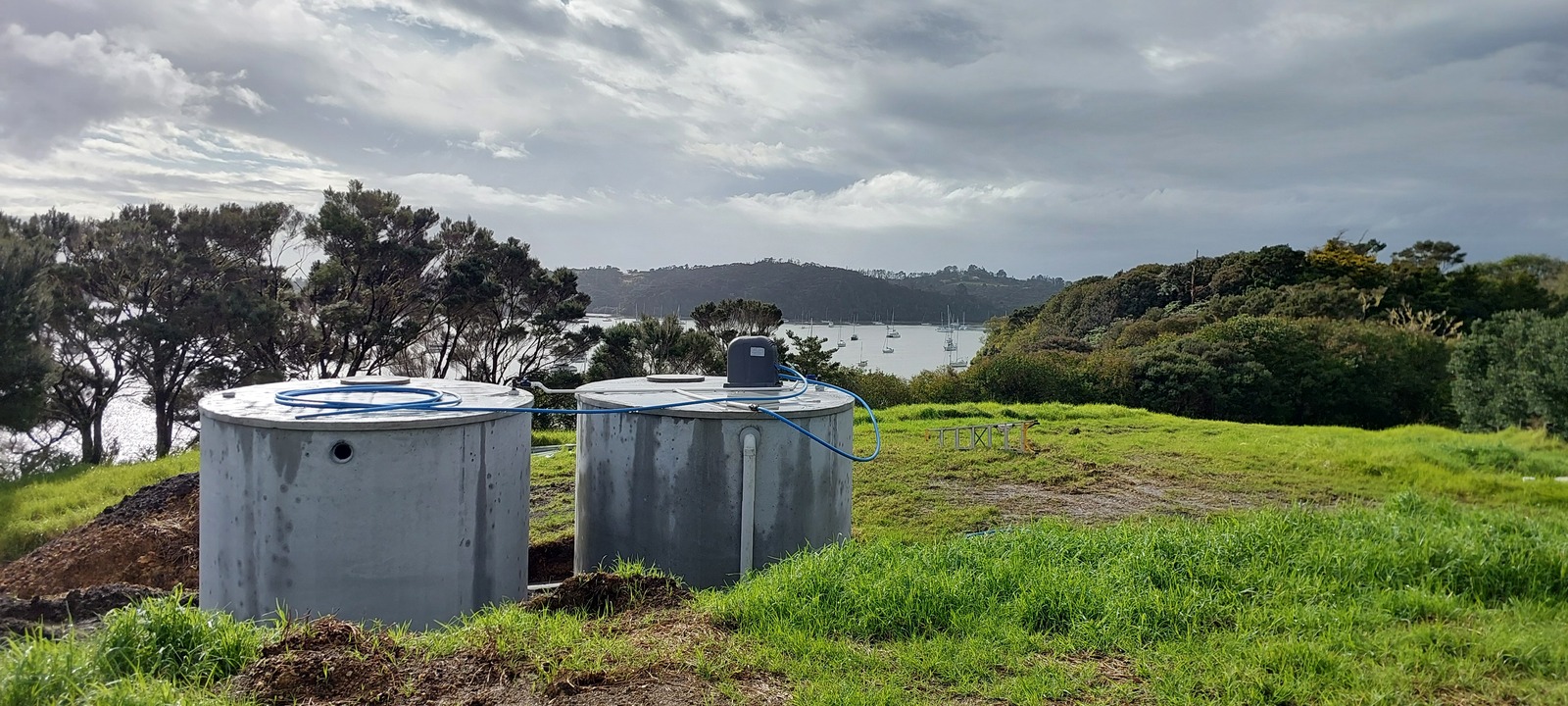

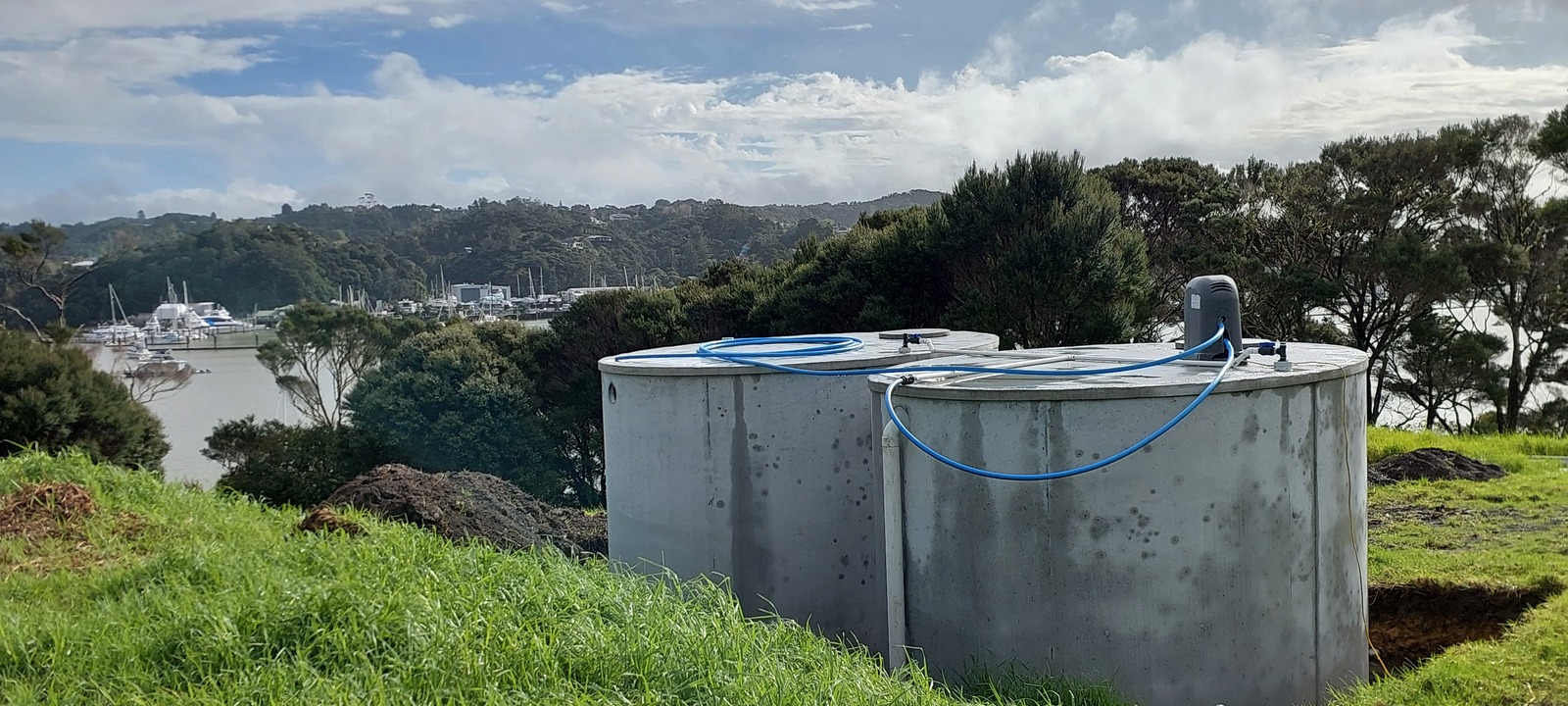

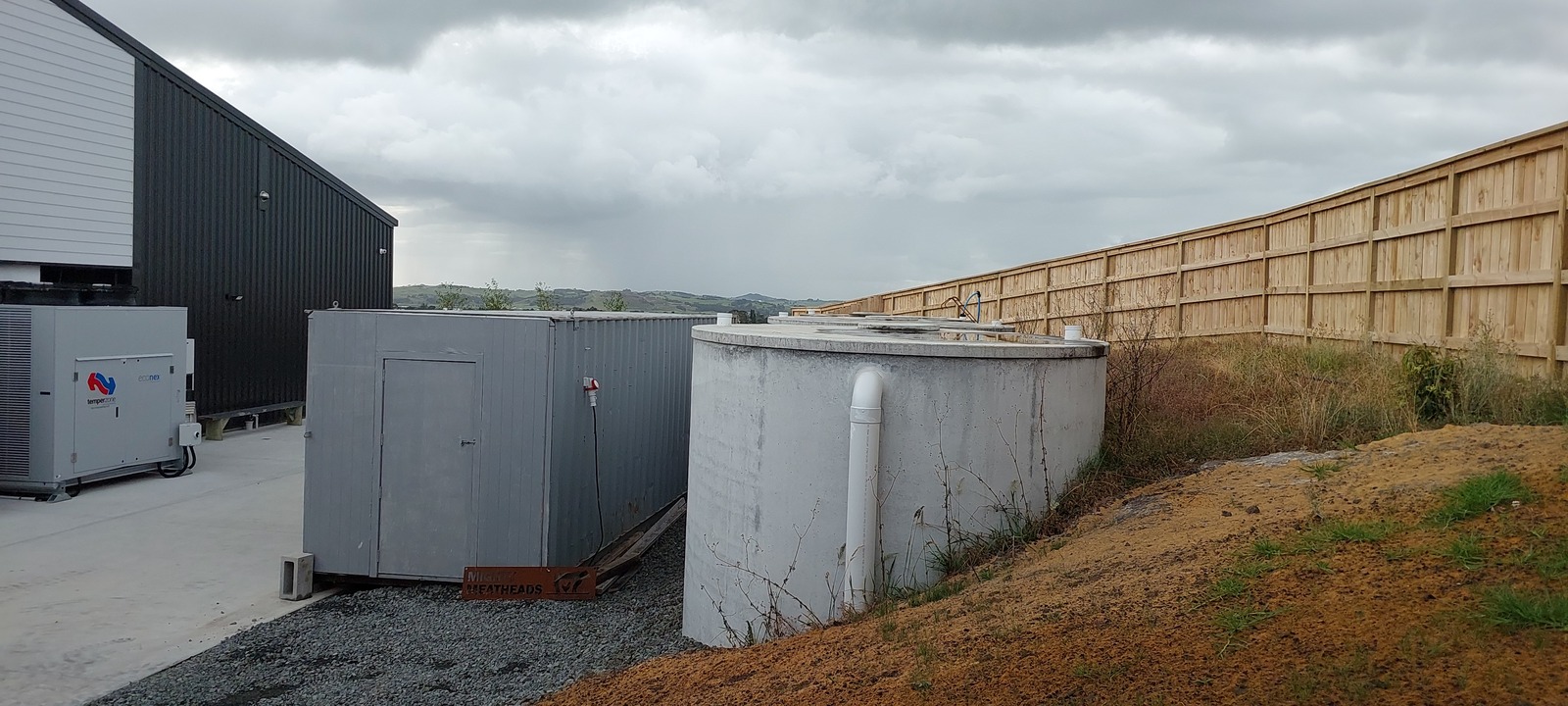

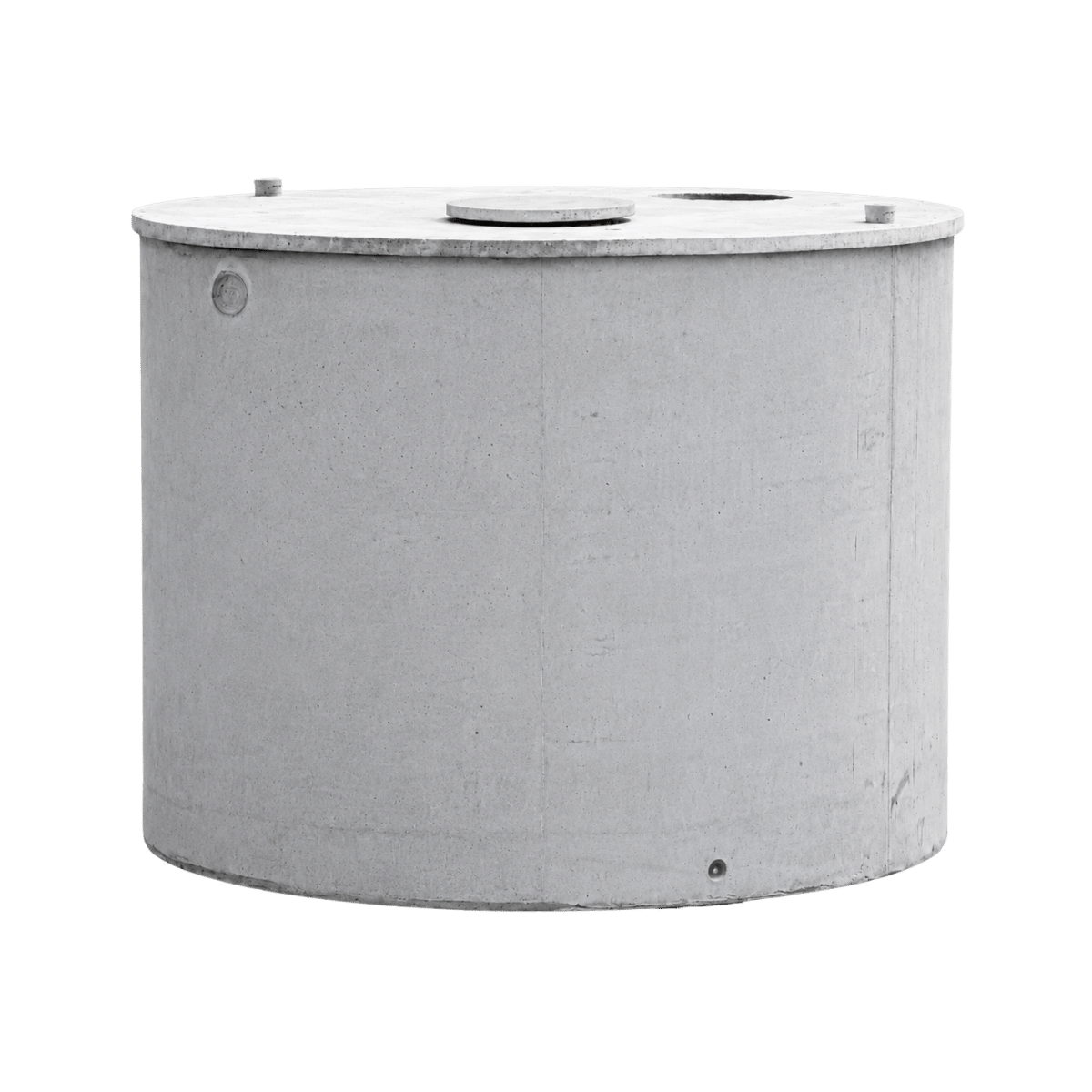

A durable precast concrete water tank manufactured in Dargaville for above-ground or underground installation.

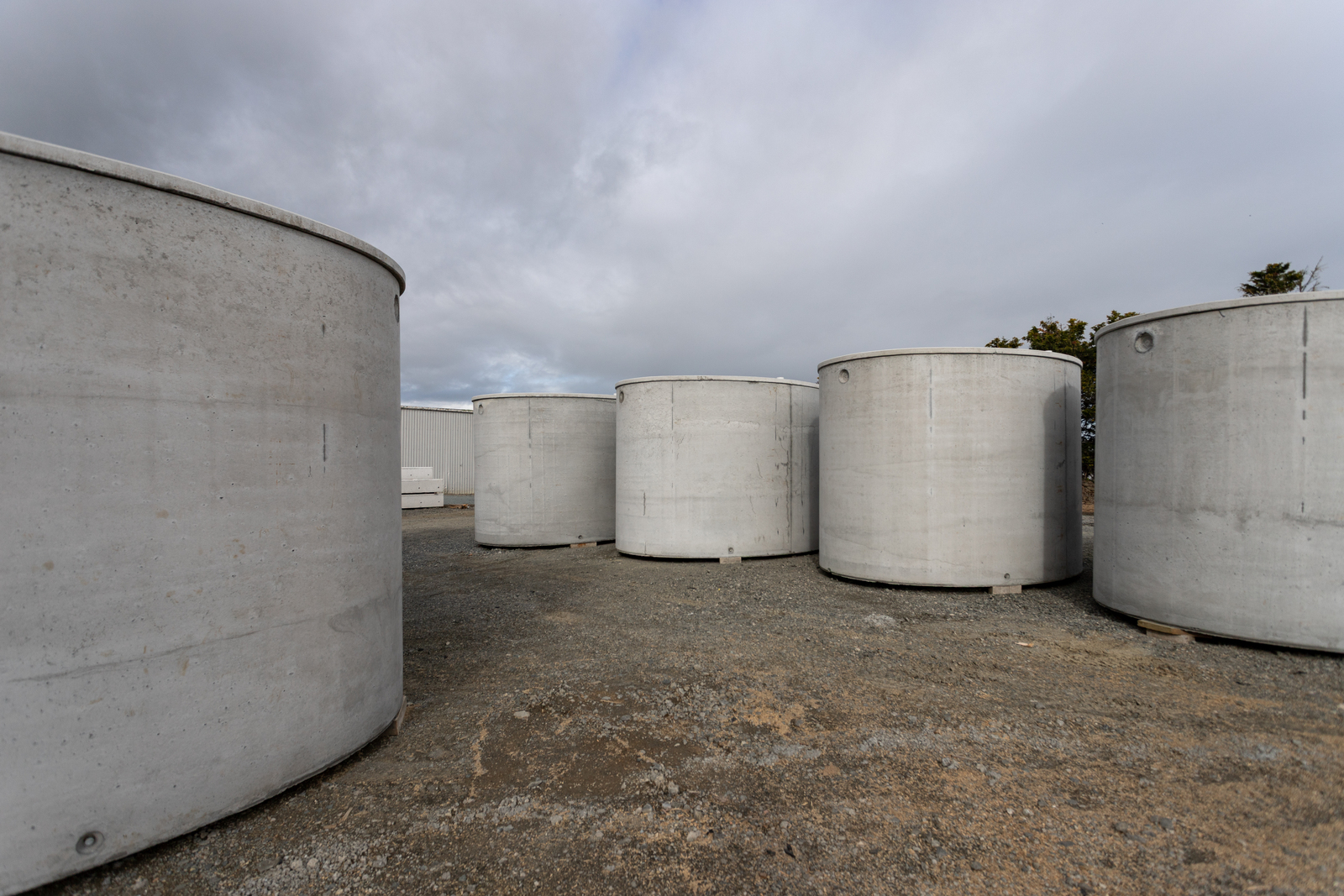

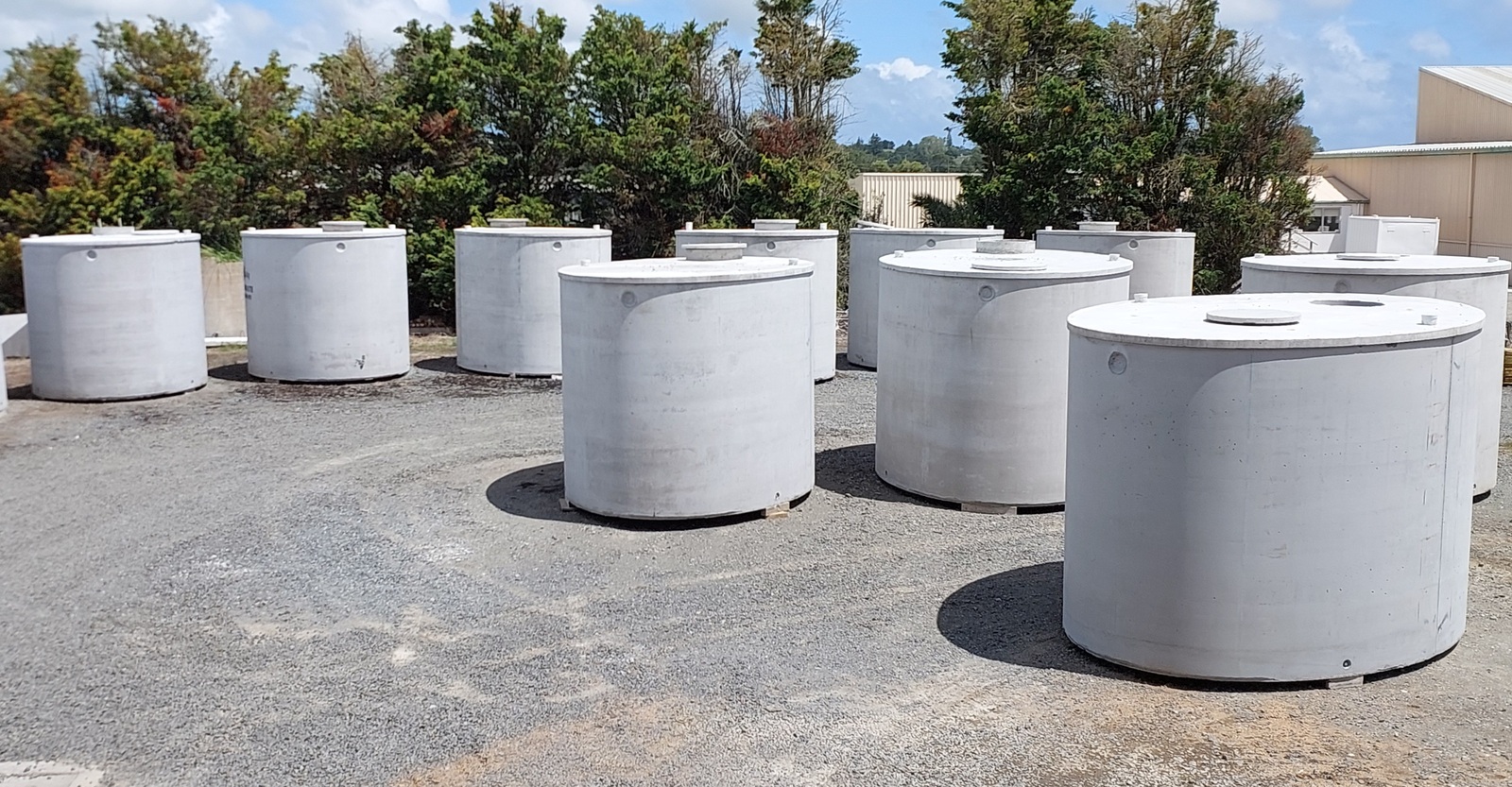

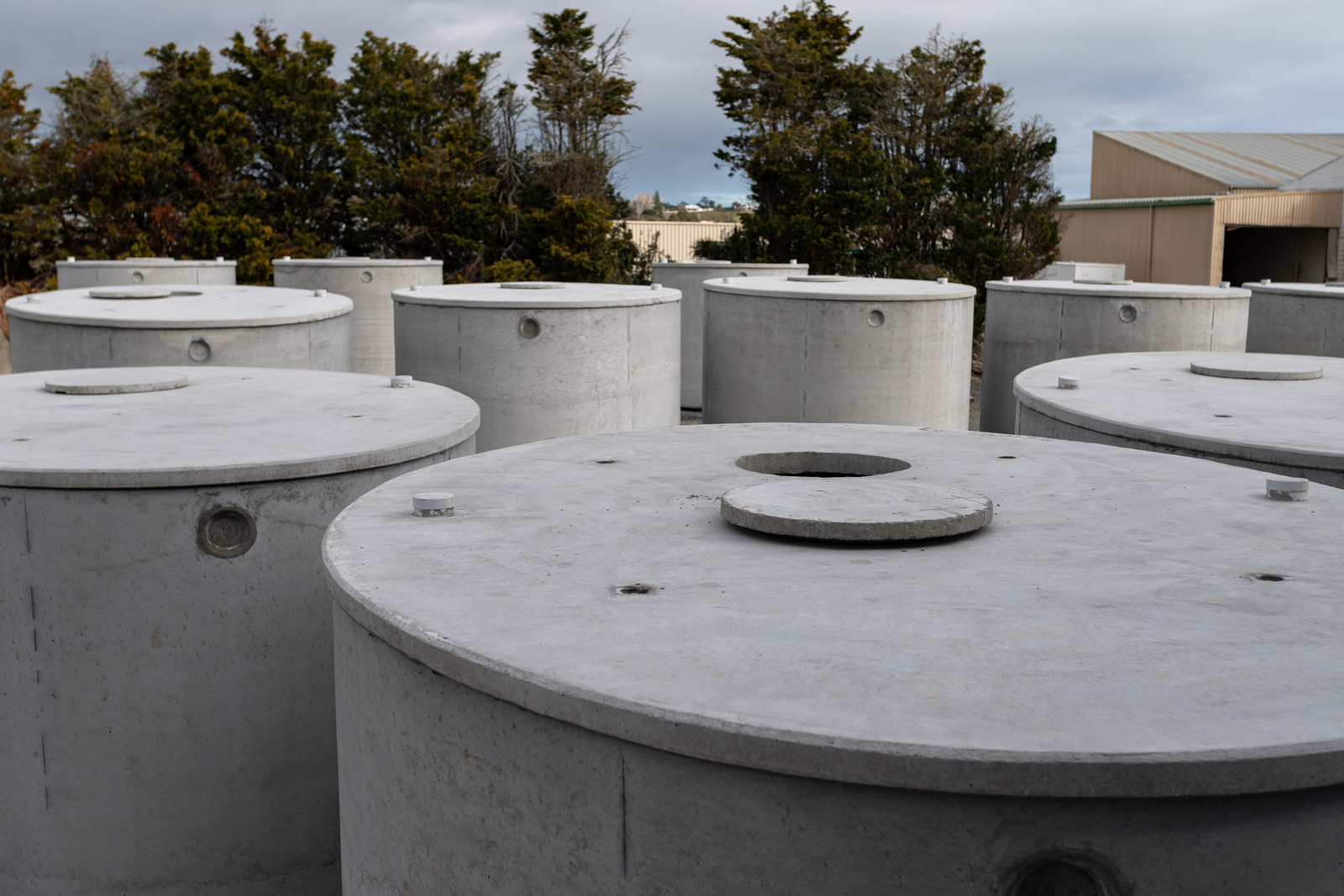

Manufactured at Wade’s Dargaville yard, this 23,000 L precast concrete tank is suitable for above-ground or underground installation.

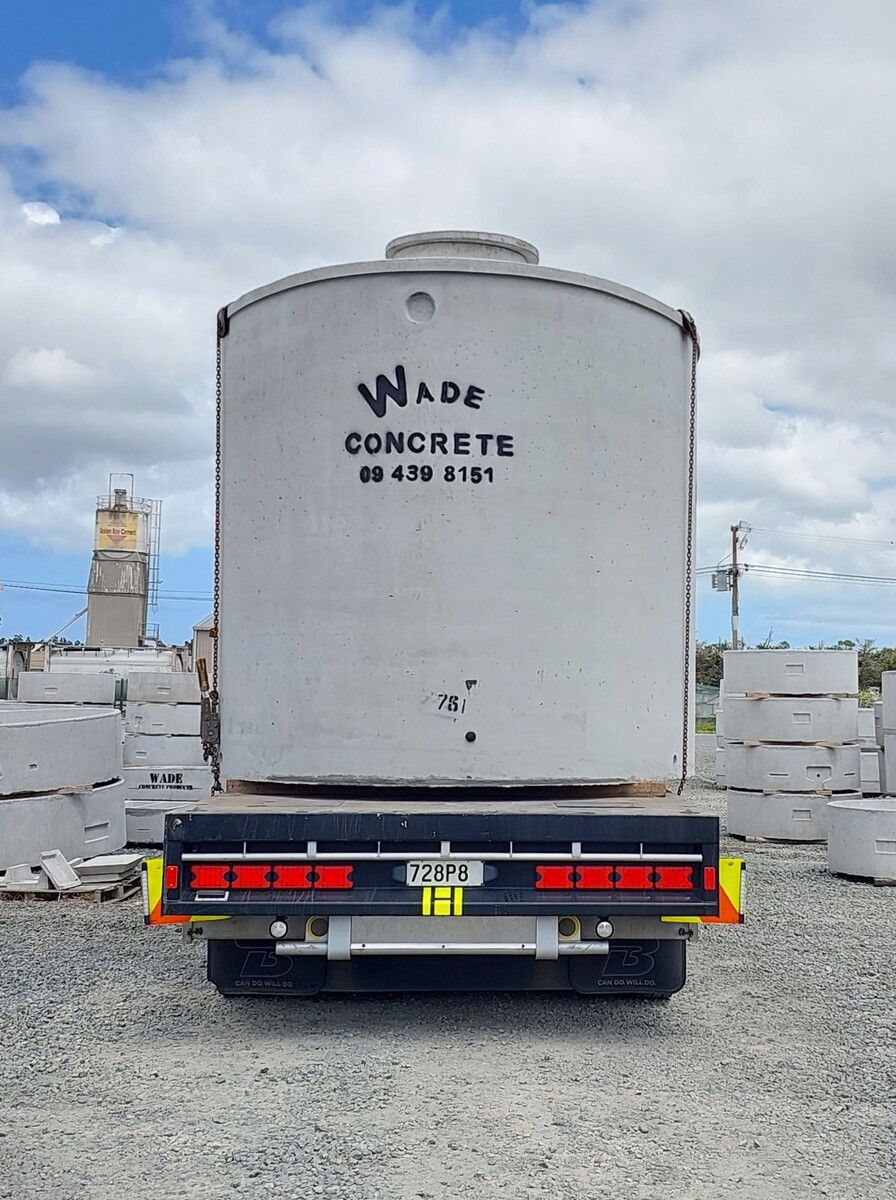

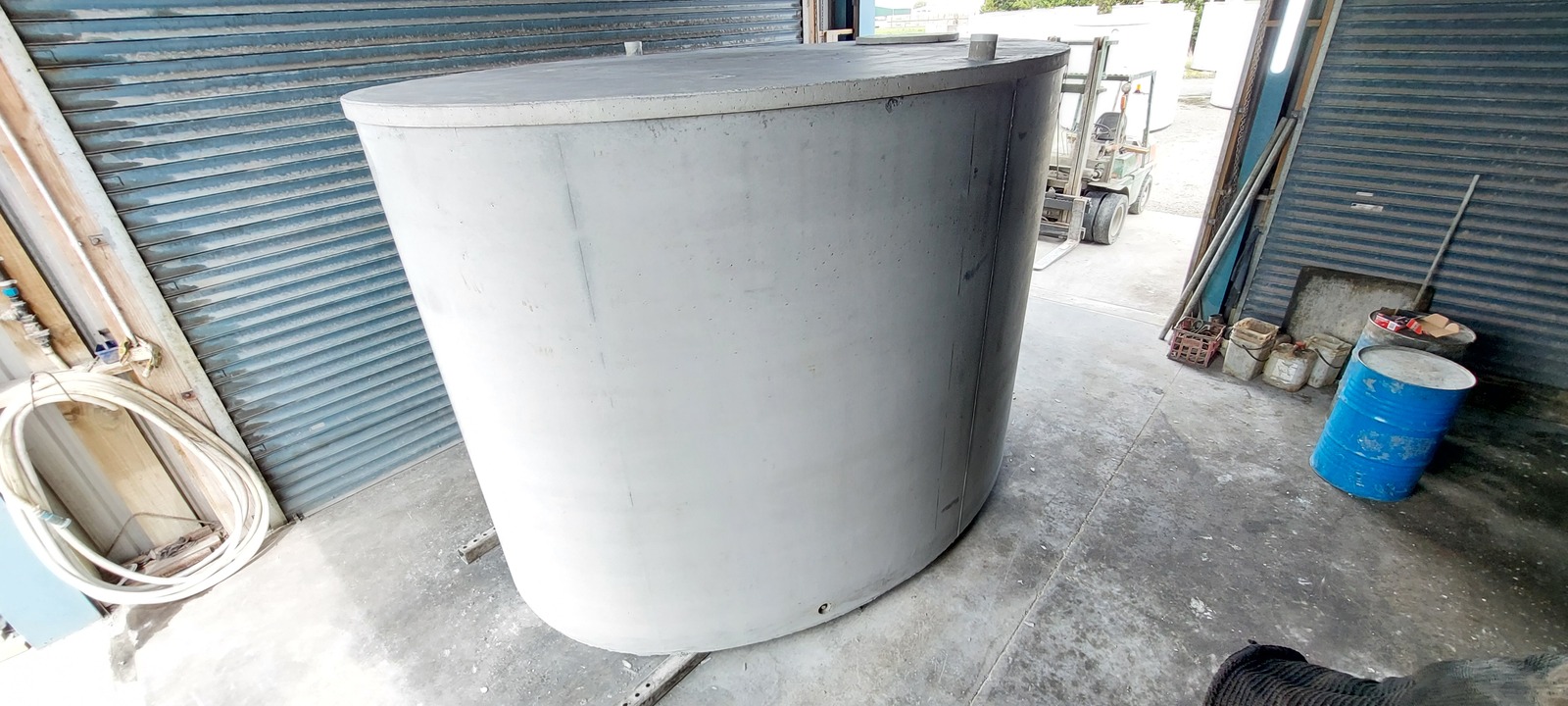

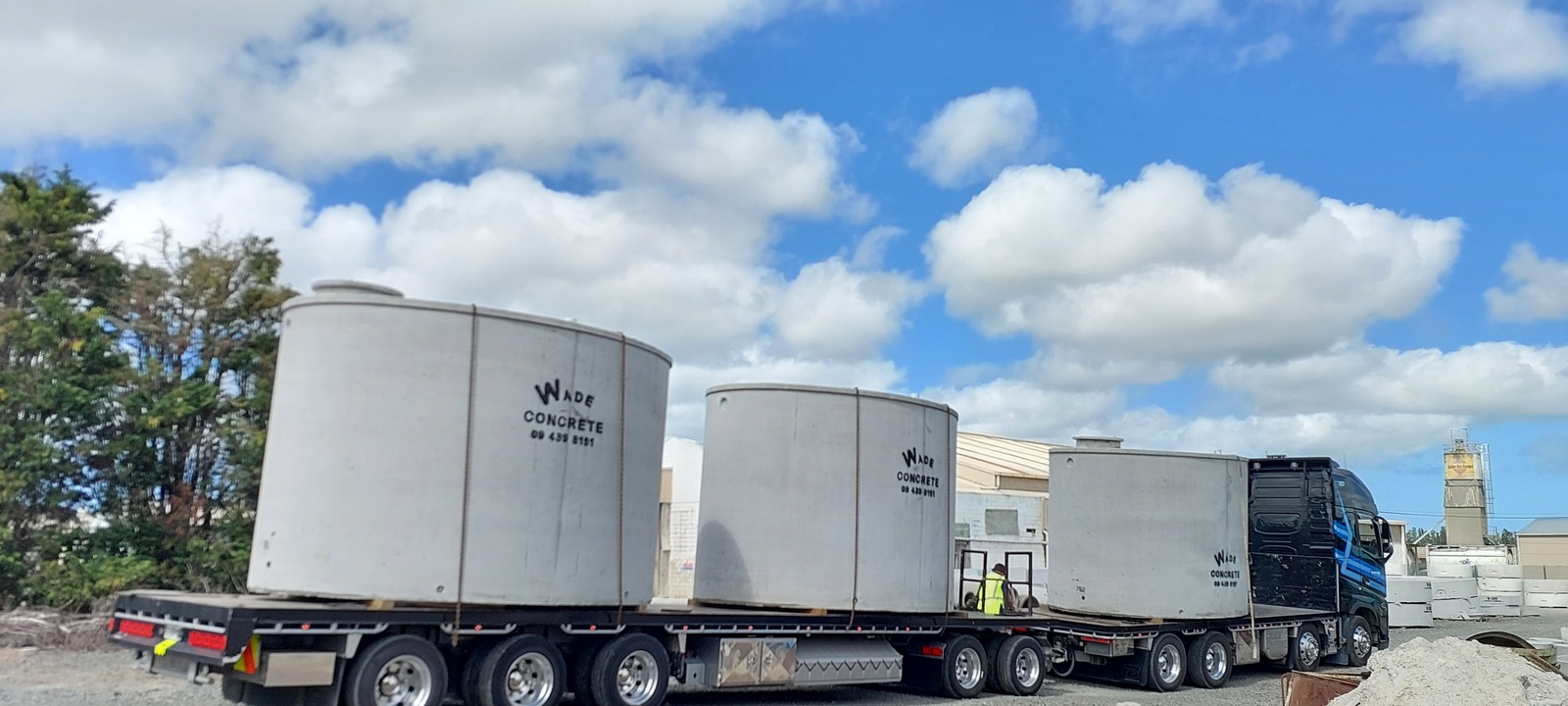

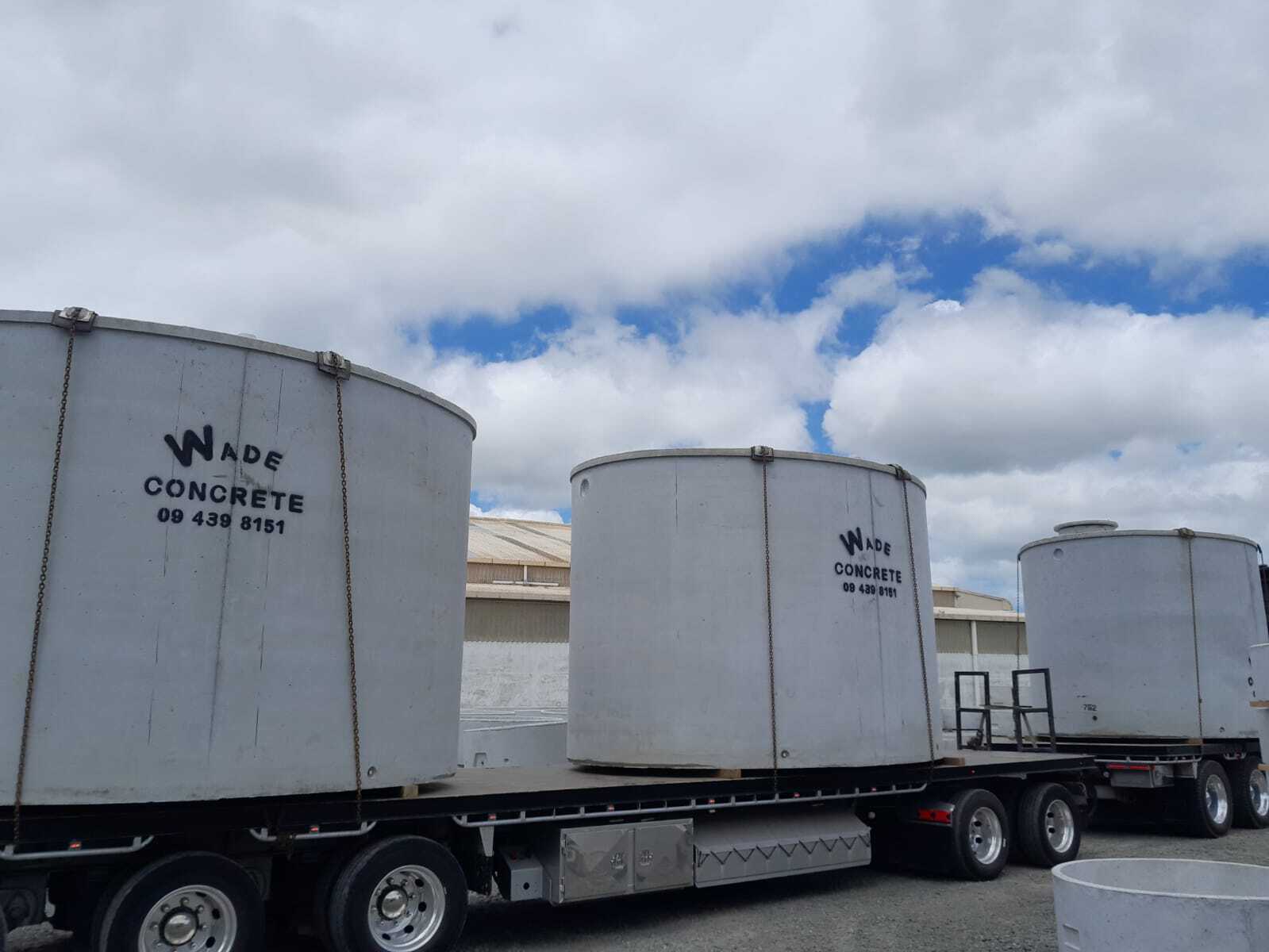

Its oval design allows it to be transported without a tail pilot, helping make delivery to site simpler and more economical.

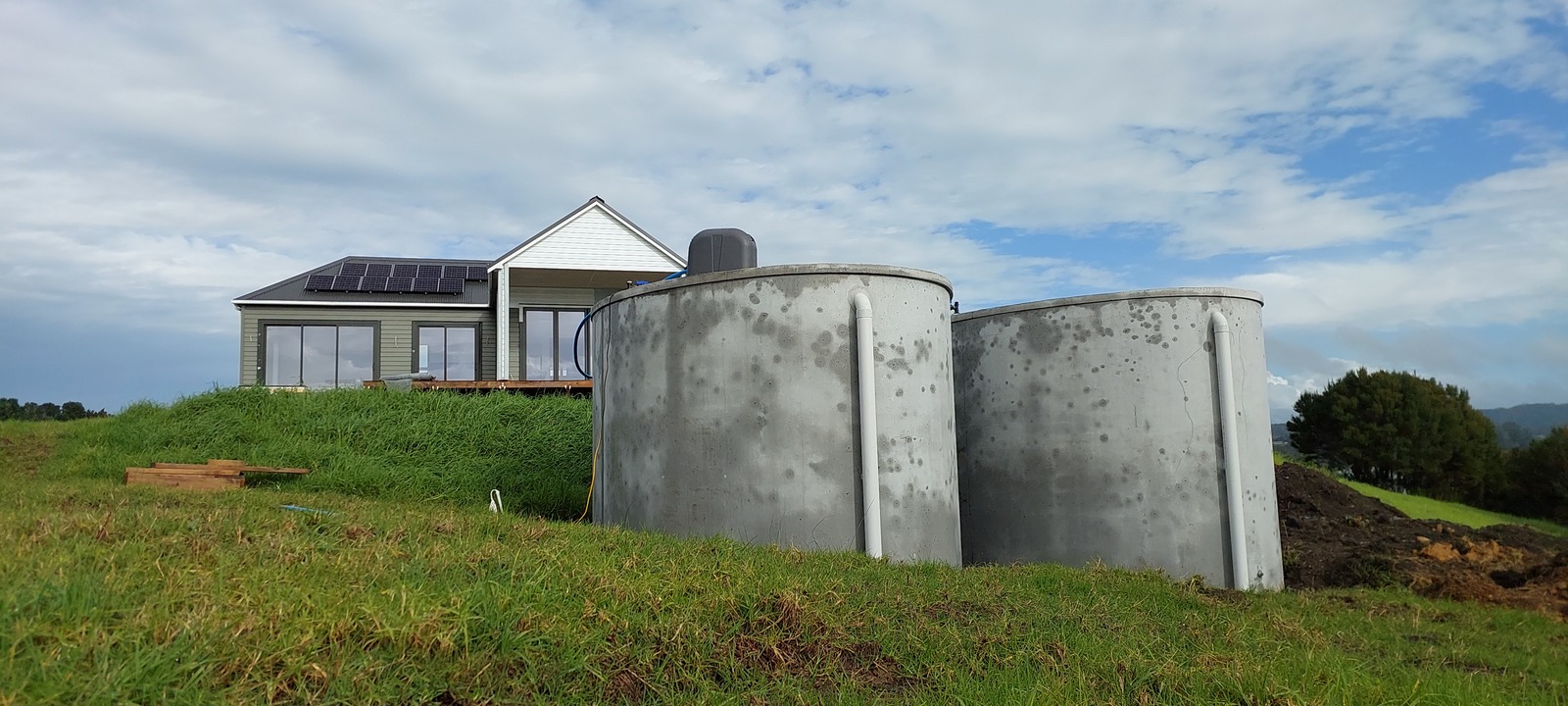

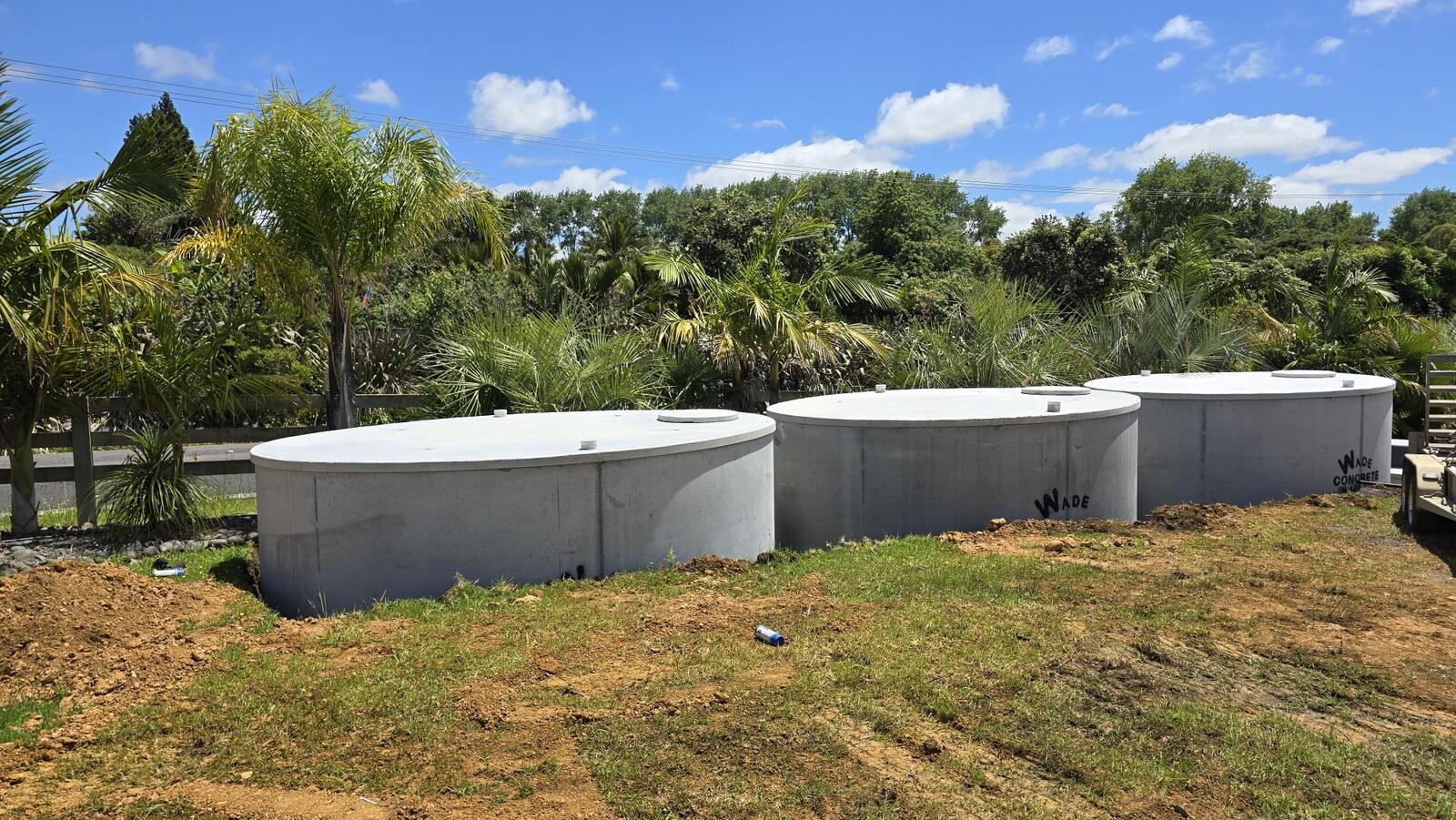

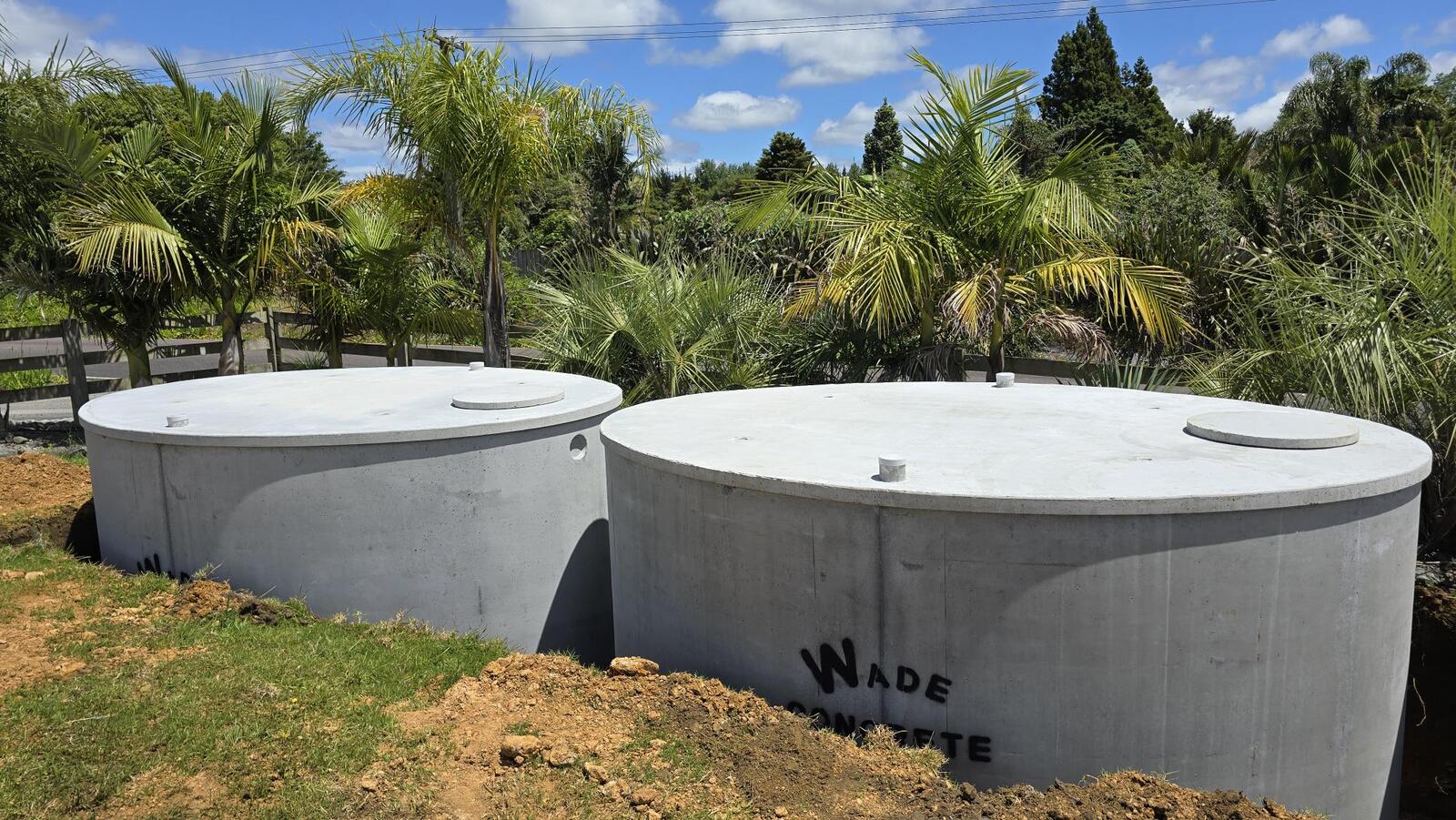

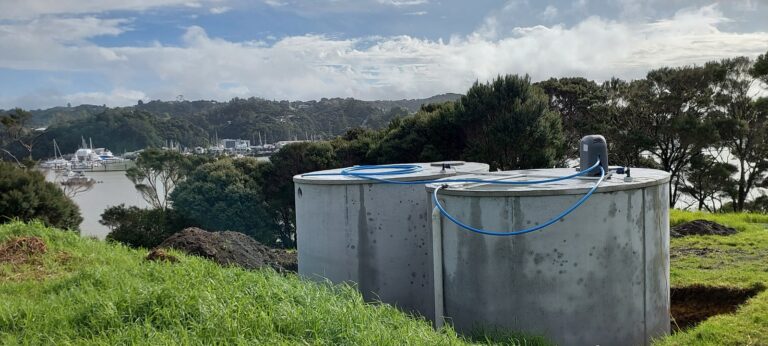

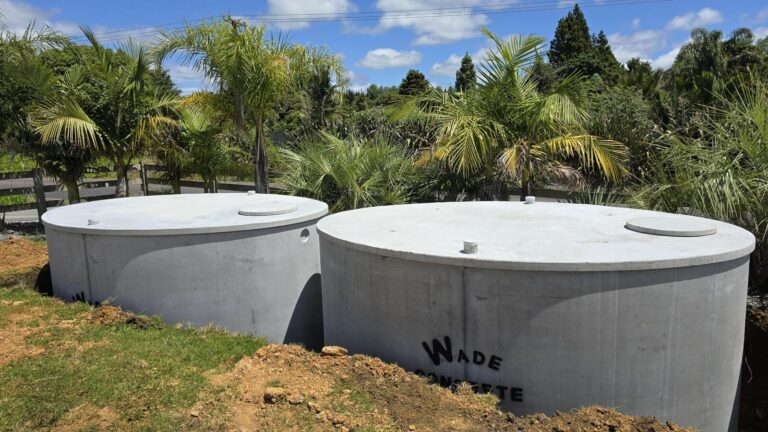

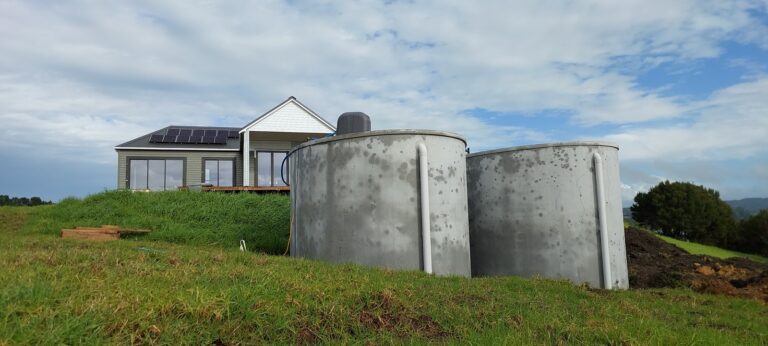

The 23,000L oval water tank can be supplied for either above-ground or buried installation, with additional options available to suit site conditions and access requirements.
| Configuration | Description |
|---|---|

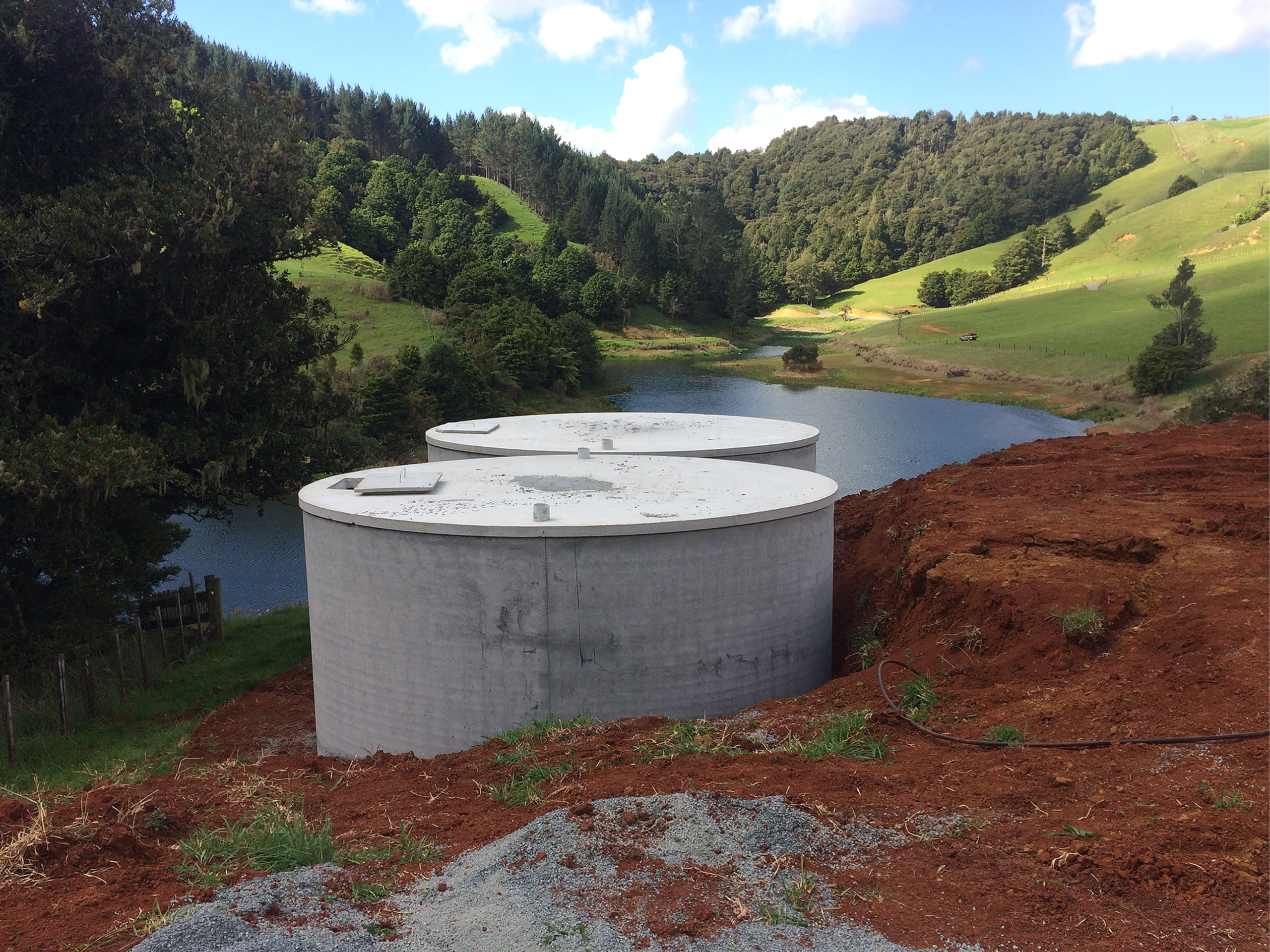

| Above Ground | Standard configuration for installation above ground on a suitable prepared base. |

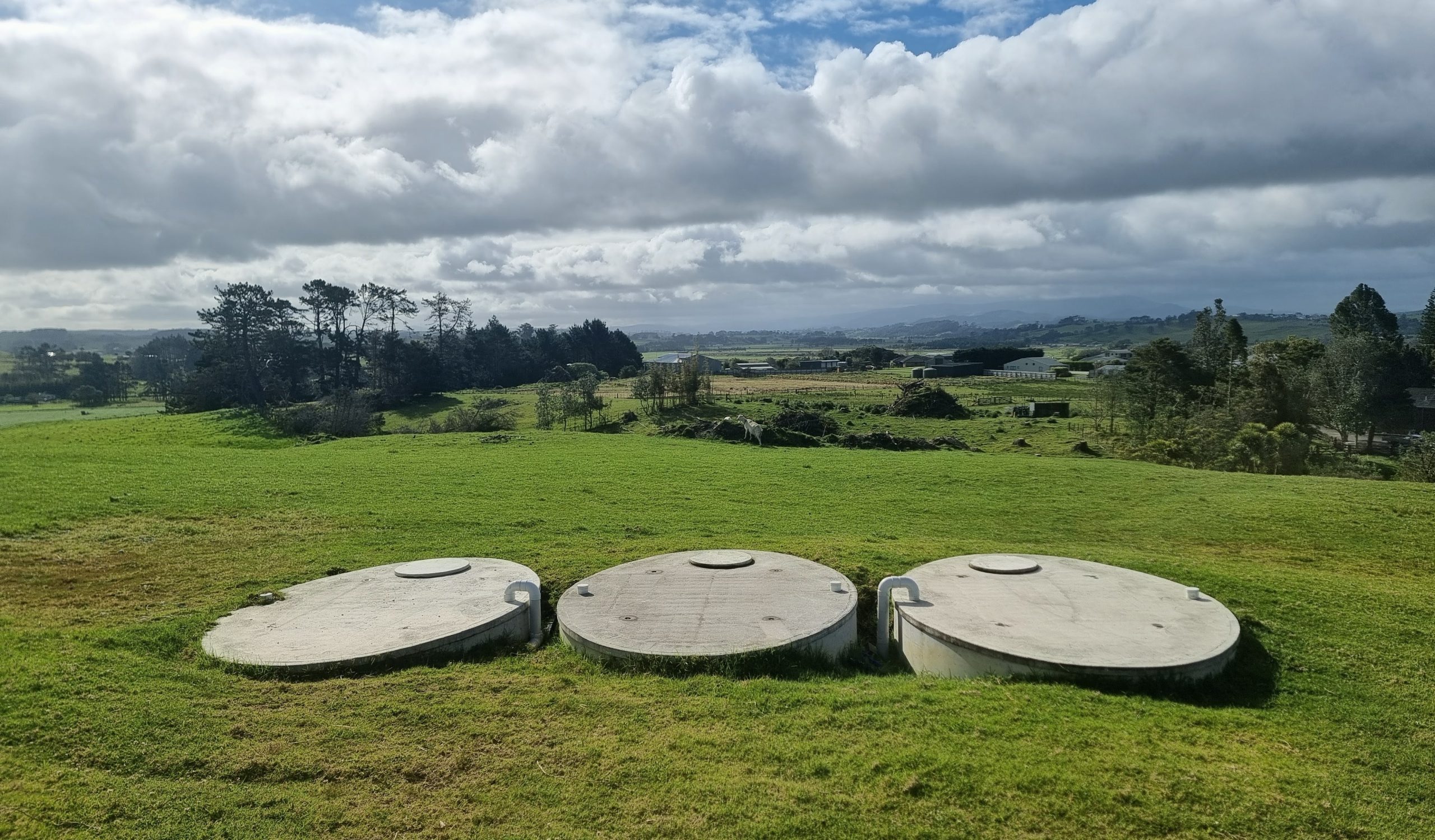

| Buried | Suitable for below-ground installation where space, appearance or site requirements make an underground tank preferable. |
Custom options
Speak to Wade about your site requirements and we can configure the tank accordingly.

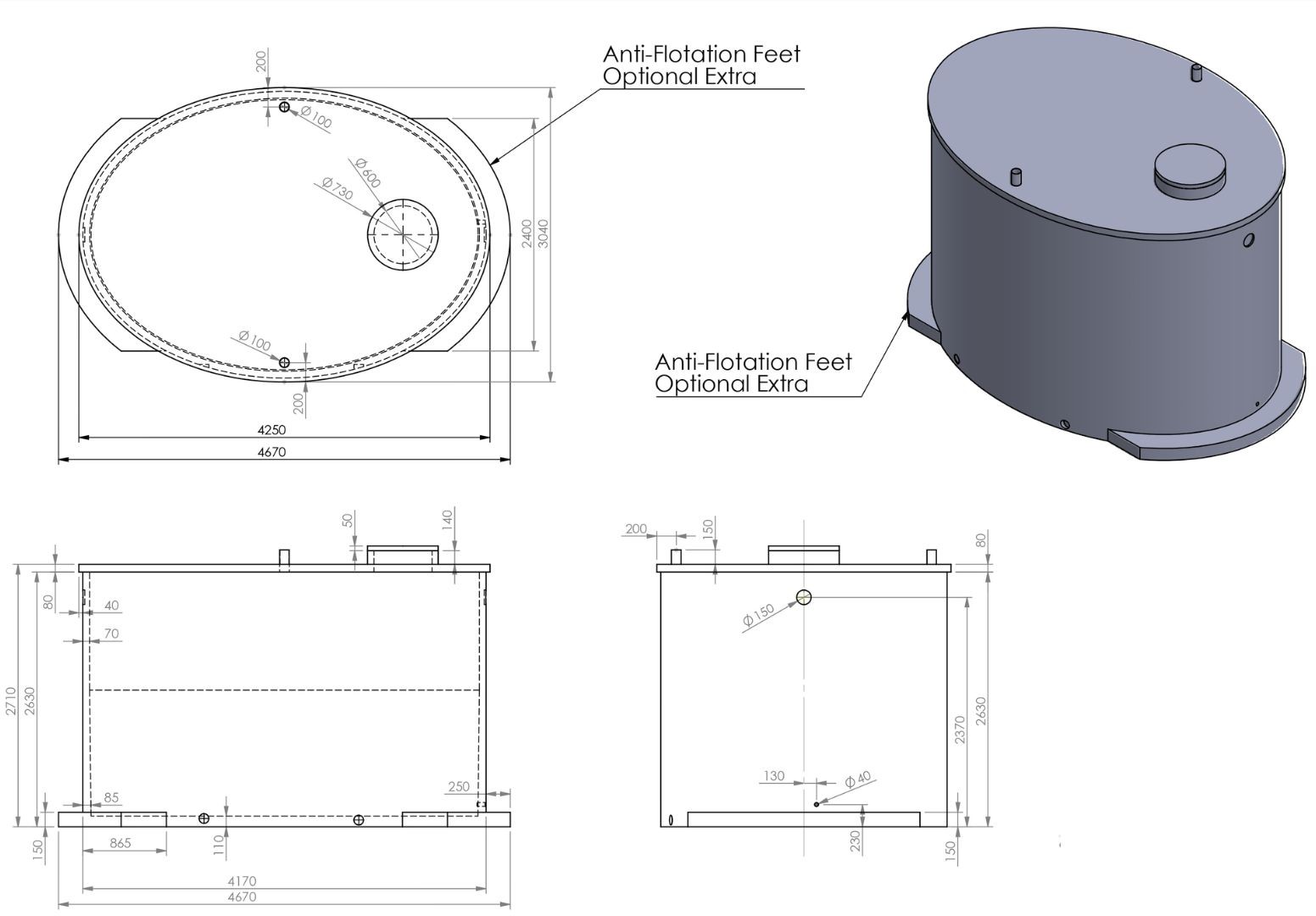

| Capacity | 23,000 litres |
|---|---|
| Overall height | 2.700 m |
| Wall height | 2.630 m |
| Length | 4.250 m |
| Width | 3.040 m |
| Empty weight | 9.5 tonnes |
| Concrete strength | 60 MPa, Firth certified |
The tank needs a level, stable base prepared before delivery. Excavate to firm virgin ground and remove rocks, roots, stumps and other debris.
Prepare a level area approximately 4.4 m long × 3.2 m wide, then compact 100 mm of 30–40 mm hard fill and finish with 50 mm of finer PAP7 or scoria, screeded level. Sand should only be used where it can be contained and cannot wash out.

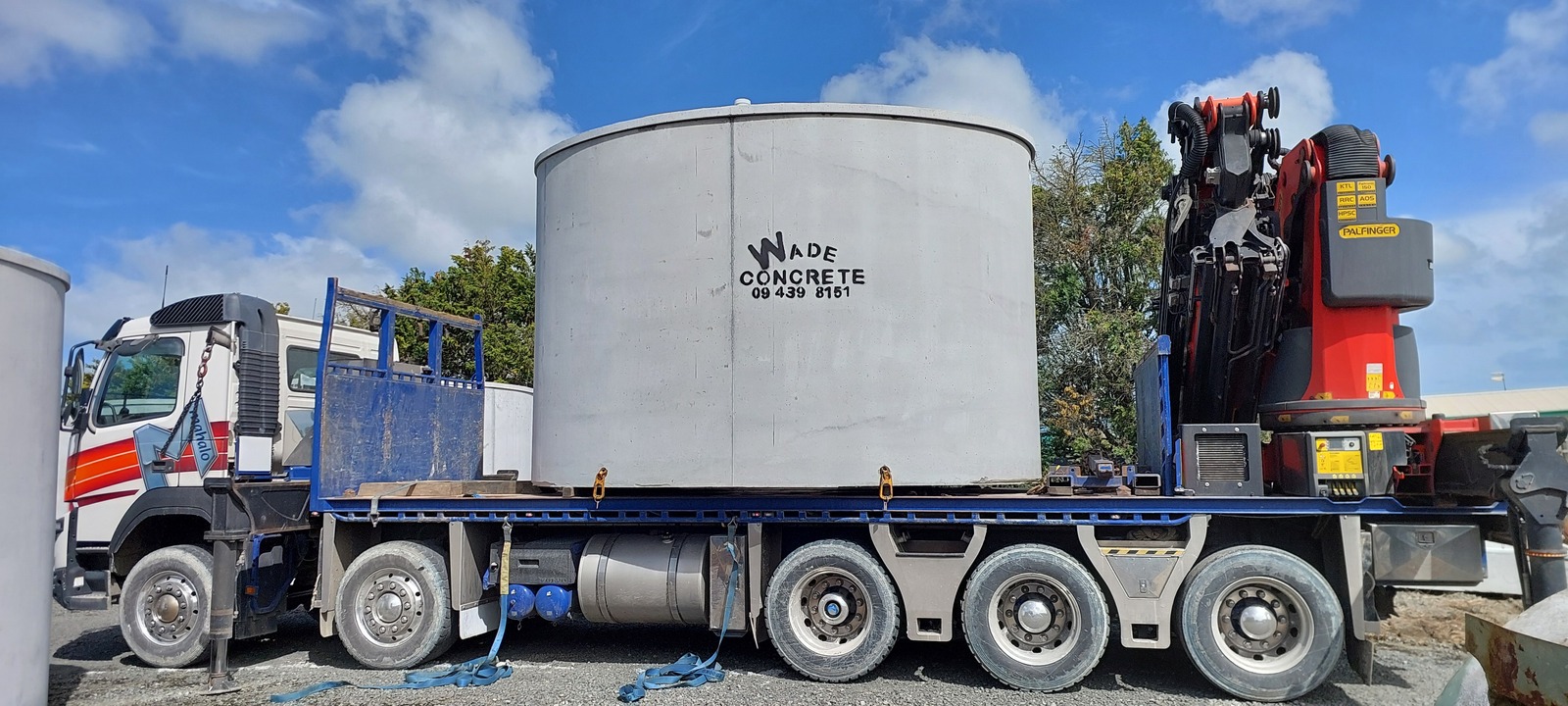

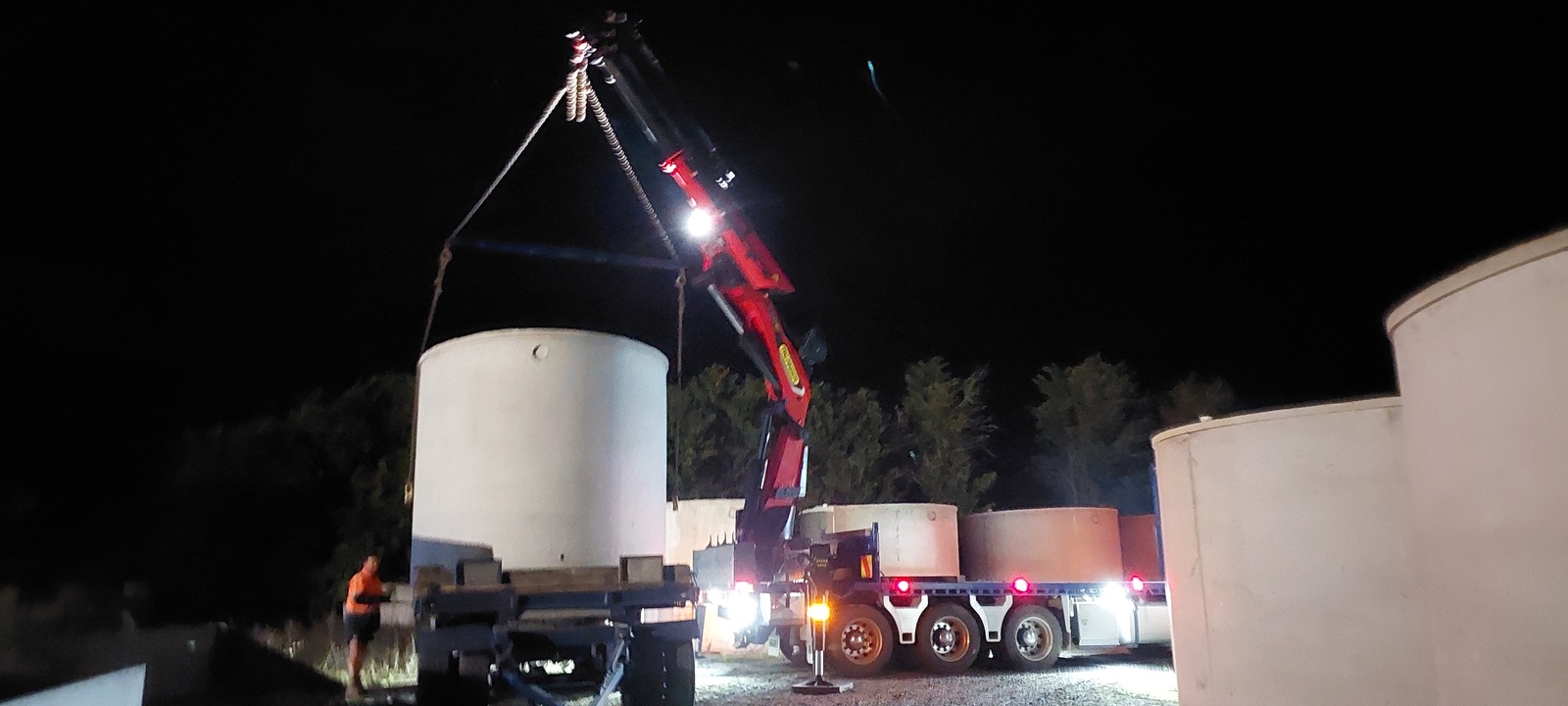

The tank is designed to be lifted directly from the delivery truck onto the prepared base. It should not be dragged or moved into position after unloading, so the site and access need to be ready beforehand.
When full, the tank has an operating weight of approximately 32 tonnes, making correct base preparation important for even weight distribution and long-term performance.

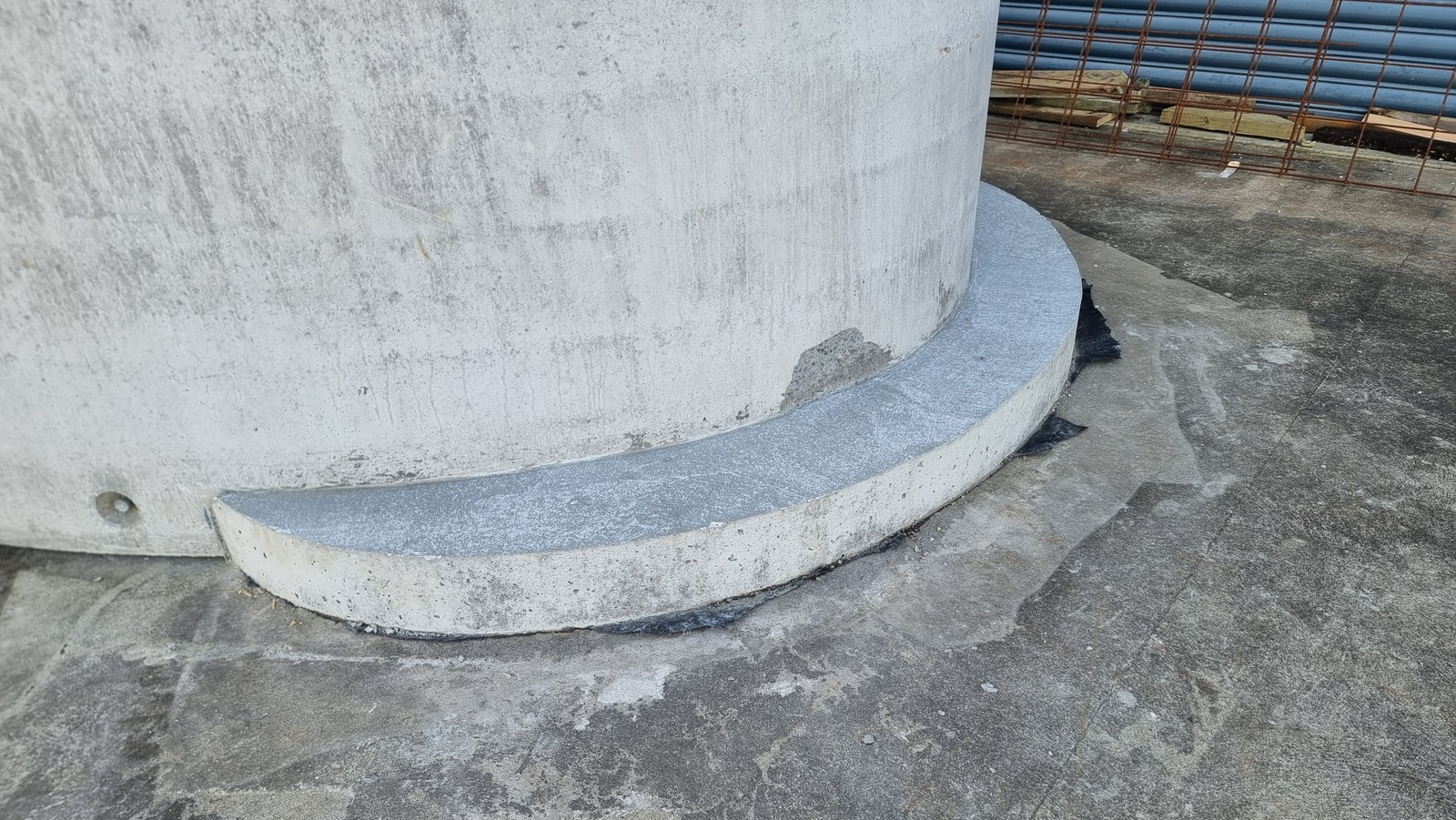

Consider vehicle access, tank position, plumbing requirements and whether your site may require options such as anti-flotation feet or a trafficable lid. Additional inlets and outlets can also be installed to suit the project.
Talk to our team about suitability, delivery and pricing for your site.
