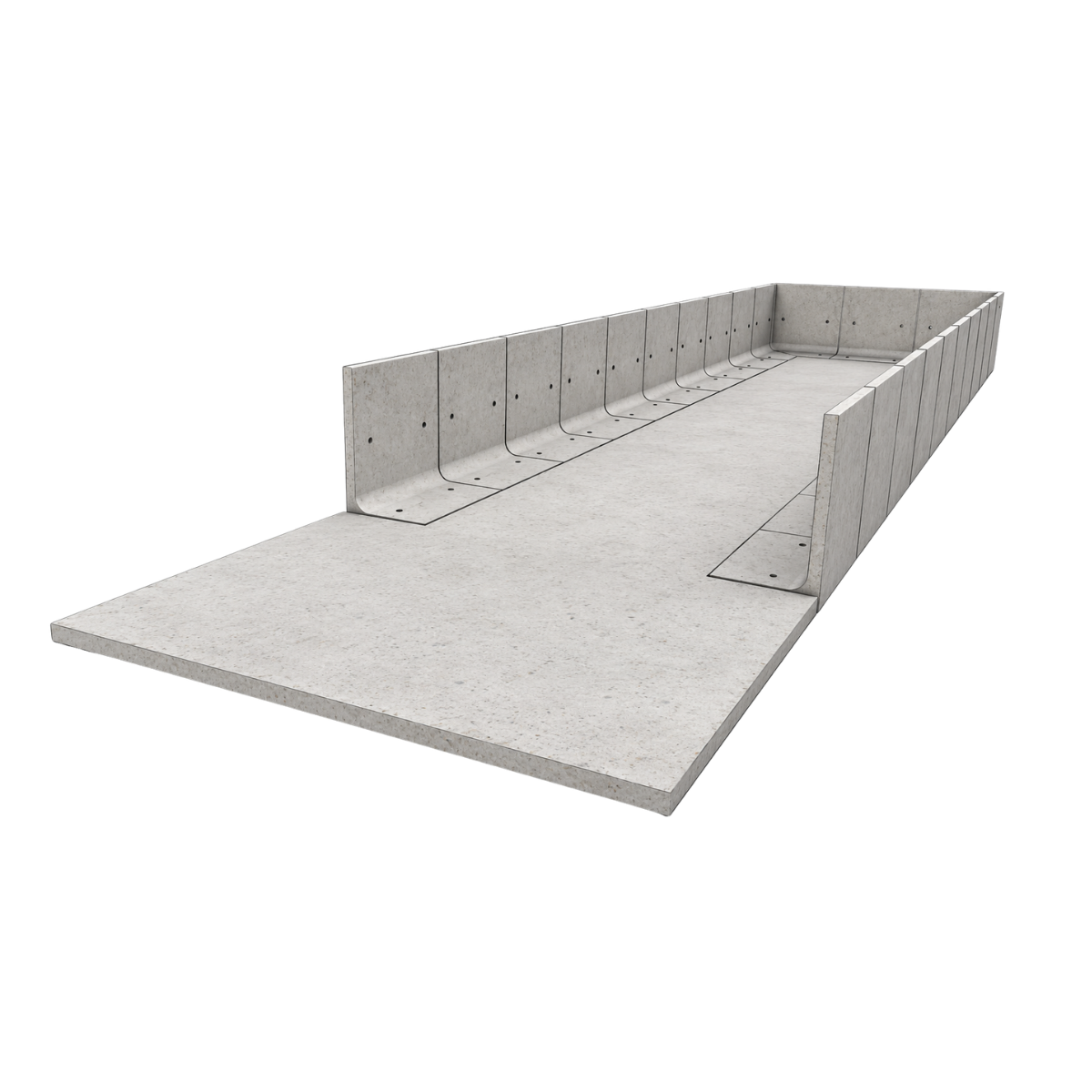

A configurable precast silage bunker system built around Wade 2.0 m L-Block walls. Choose the width and length to suit your feed requirements, then add additional bays or extend the bunker as your storage needs grow.

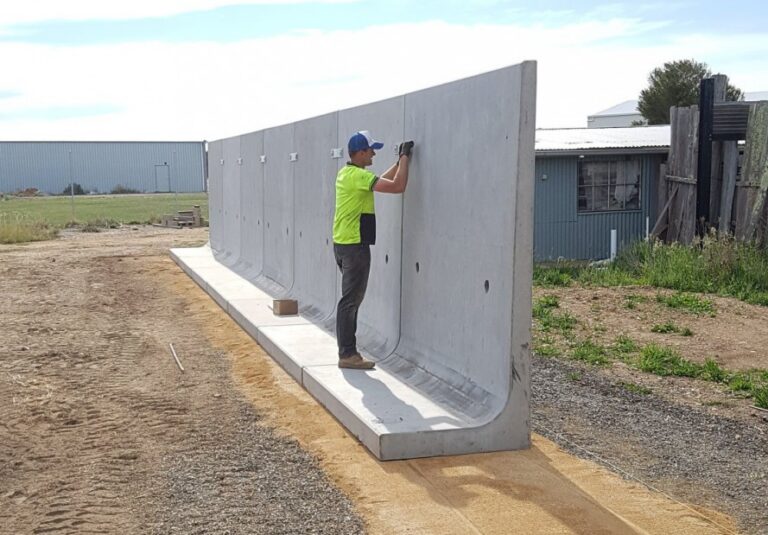

Wade Silage Bunker Systems use precast concrete L-Blocks to create a bunker that can be configured around your storage requirements and farm setup.
The standard system is based on 2.0 m high walls, with standard widths of 7.2 m, 9.6 m, 12.0 m and 14.4 m. Bunker length can be increased in 2.4 m increments, making it straightforward to add capacity as required. Other wall heights, including 2.4 m, are also available where needed.
Wade Silage Bunker Systems use modular precast L-Blocks to create a bunker layout around your feed requirements, available space and feeding setup. The standard system uses 2.0 m high walls, with the width, length and number of bays selected to suit the required storage.

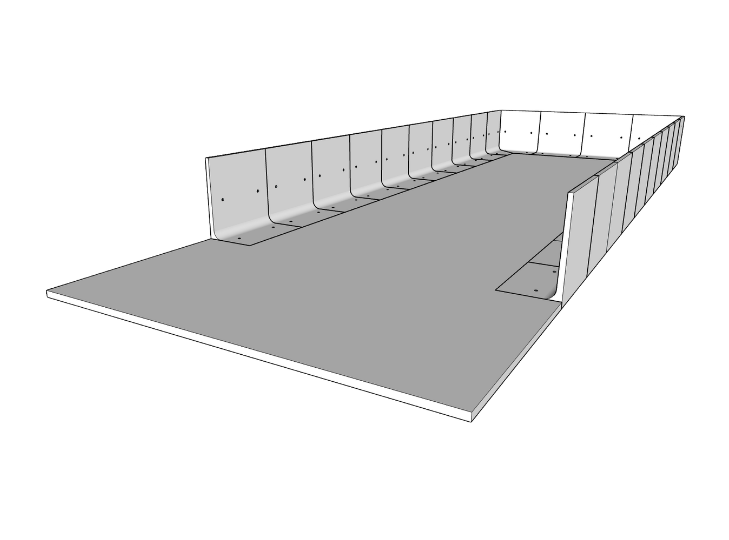

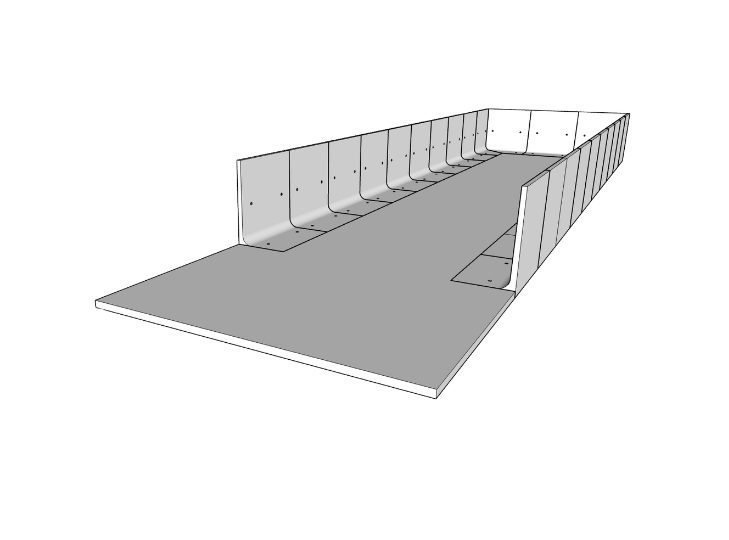

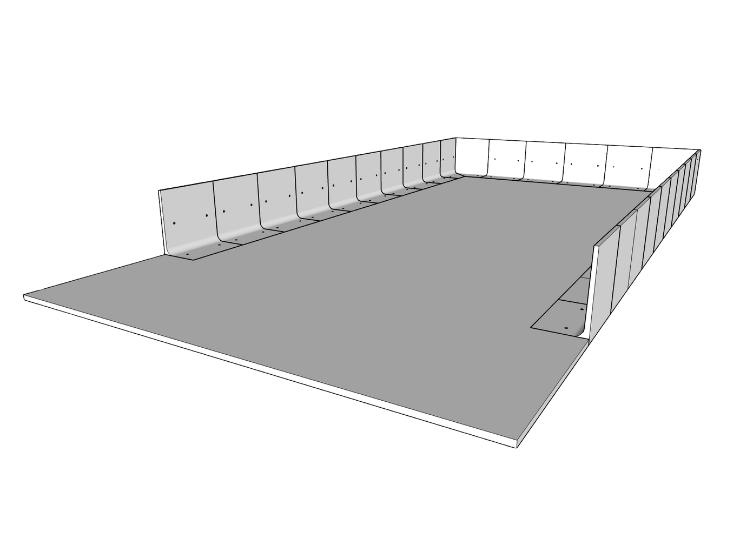

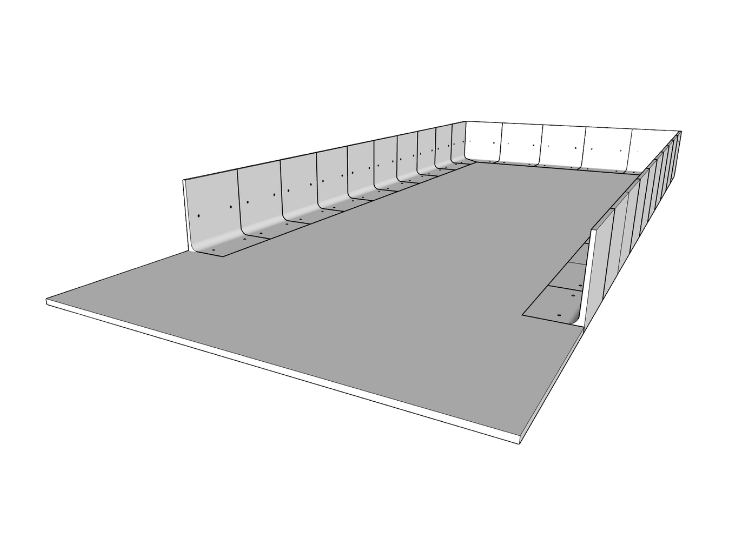

Start with one of four standard bunker widths: 7.2 m, 9.6 m, 12.0 m or 14.4 m. Width is selected around the daily feed requirement and the silage face you need to work.

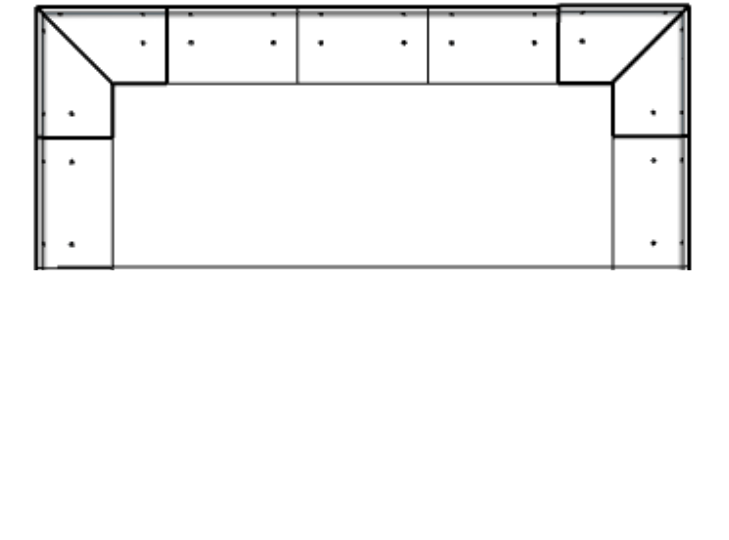

Select the storage length you need. The modular L-Block layout allows bunker length to increase in 2.4 m increments.

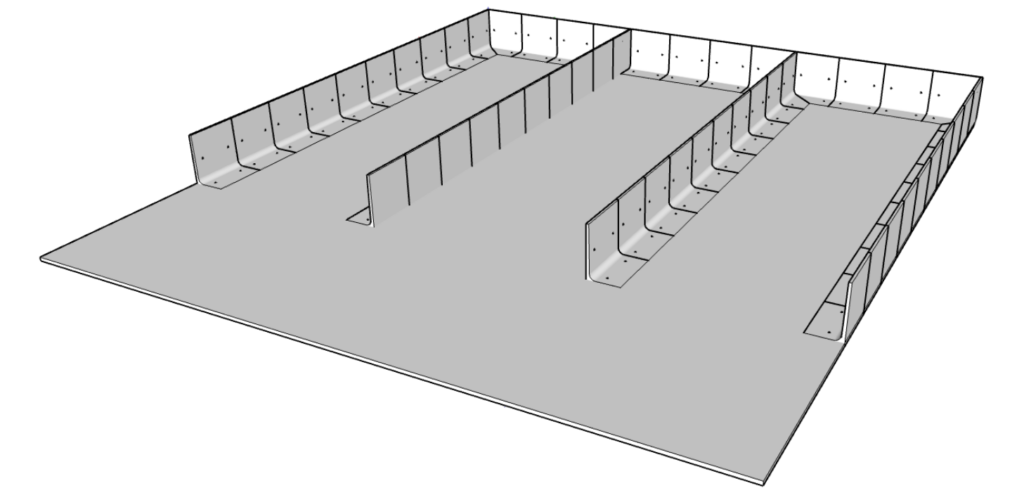

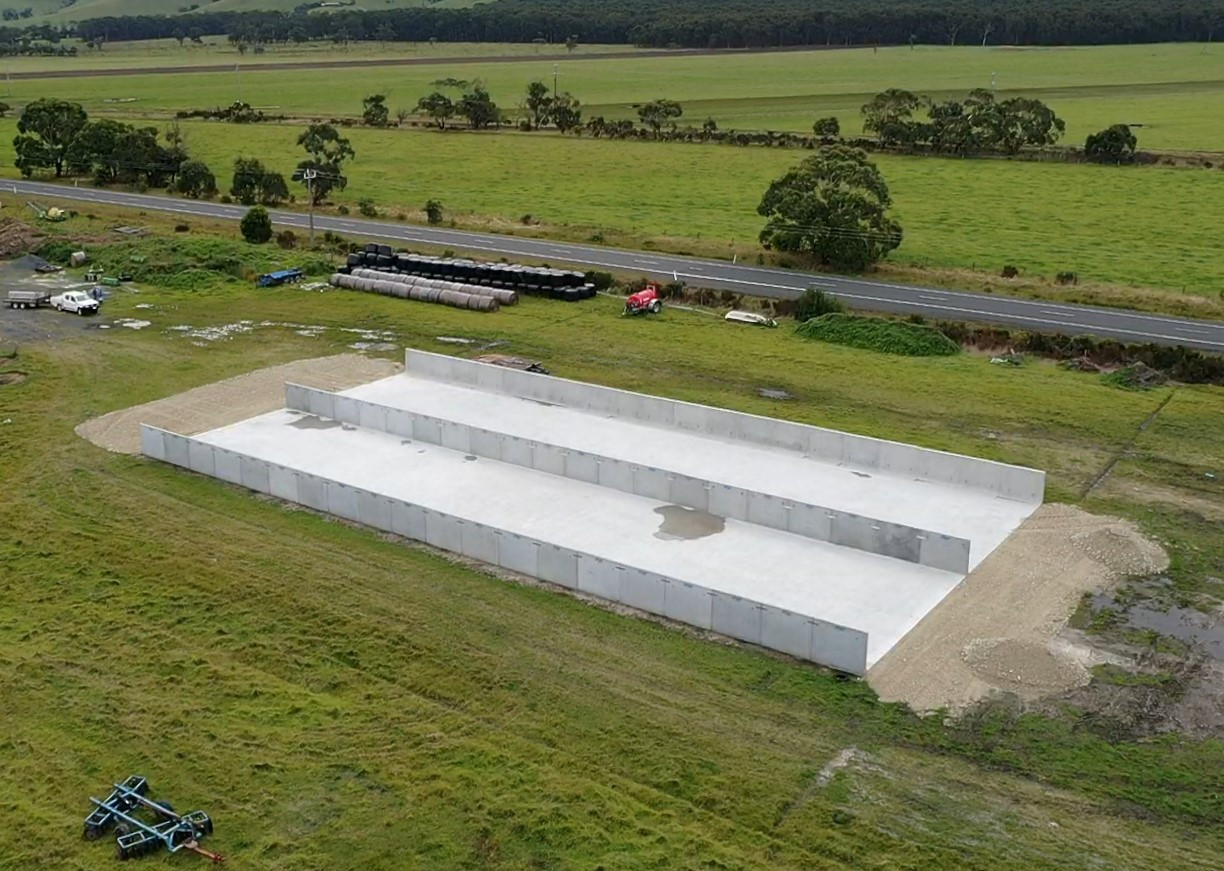

Build a single bunker or create additional bays for more storage, different feed types or future expansion. Bespoke layouts can also be developed where the standard arrangements do not suit the site.
Start with one of four standard bunker widths, all based on Wade’s 2.0 m high L-Block system. From there, choose the length required in 2.4 m increments.

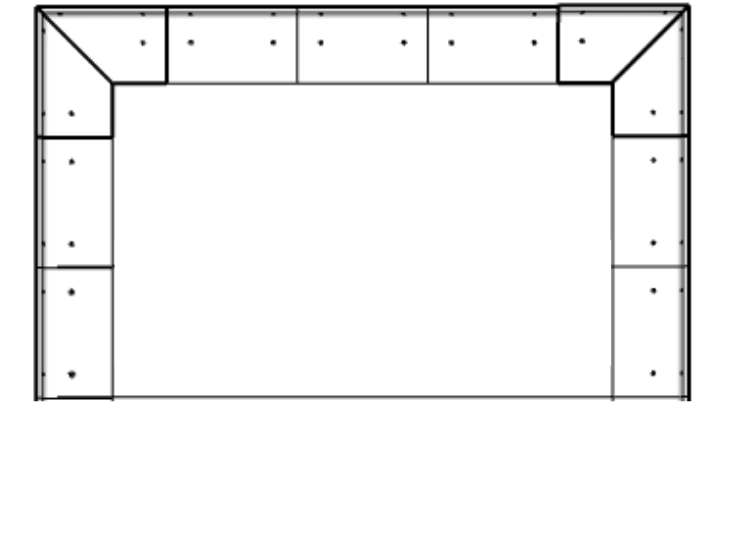

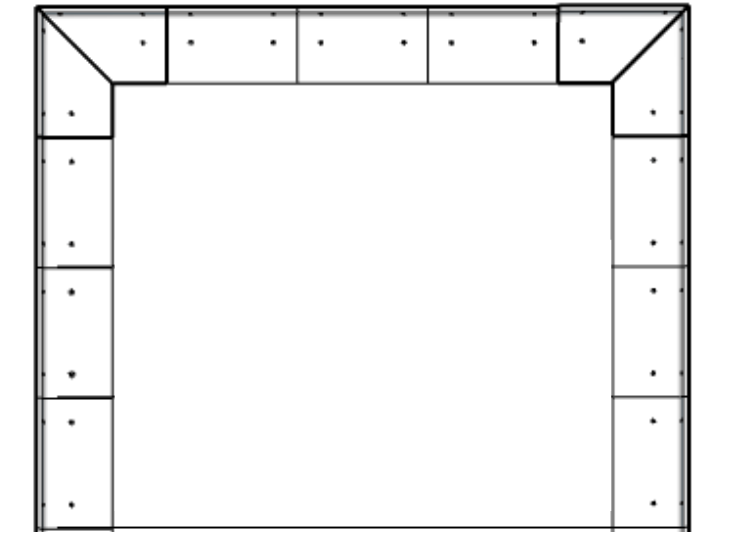

Once the bunker width is selected, the length can be increased in 2.4 m increments to provide the storage period required.
2.4 m → 4.8 m → 7.2 m → 9.6 m → 12.0 m → …
Bunker width determines the amount of silage exposed at the face and therefore how much feed is removed as the face advances. These example figures provide a starting point for selecting a bunker width. Actual requirements will vary with silage density, feeding rate and face management.
At 200 mm daily face advance
At 200 mm daily face advance
At 200 mm daily face advance
At 200 mm daily face advance
These figures are indicative sizing examples only. Actual silage density, feed requirements and preferred face advance will vary between operations. Wade can help work through the bunker configuration for your requirements.
Once the bunker width has been selected around the daily feed requirement, increasing the bunker length increases storage capacity and the approximate number of feeding days.
Every additional 2.4 m section adds 12 days of storage.
Once the bunker width is established, additional 2.4 m L-Block sections can be added to increase the storage length. This makes it straightforward to size the bunker around current requirements while allowing for future expansion.
| Bunker width | Approx. capacity added per 2.4 m |
|---|---|
| 7.2 m | 35 m³ |
| 9.6 m | 46 m³ |
| 12.0 m | 58 m³ |
| 14.4 m | 69 m³ |
Each additional 2.4 m of bunker length also represents approximately 12 more days of storage when using the example 200 mm daily face advance.
Additional bays can be incorporated into the layout for extra capacity, separate feed types or a staged expansion plan.
The standard Wade Silage Bunker System is based around 2.0 m high walls and four standard bunker widths. Where the standard arrangement does not suit the site or storage requirement, talk to Wade about alternative configurations.

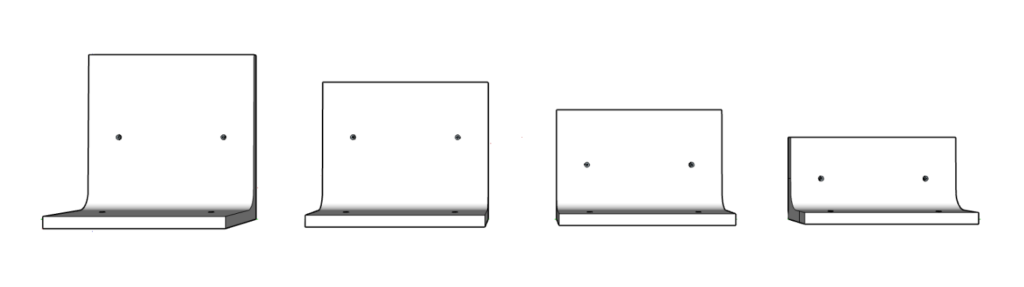

Other L-Block wall heights are available where required, including 2.4 m high walls and lower-height options. These are treated as alternative configurations rather than the standard bunker system.
Standard system:
2.0 m high walls
If the standard width, length or bay arrangement does not suit your site, Wade can discuss a configuration around the available space and required storage.
Tell us about your herd, feed requirements and available site area and we can work through the options with you.
Wade can also supply related precast products for the wider silage bunker and drainage setup. The products required will depend on the site, layout and drainage design.

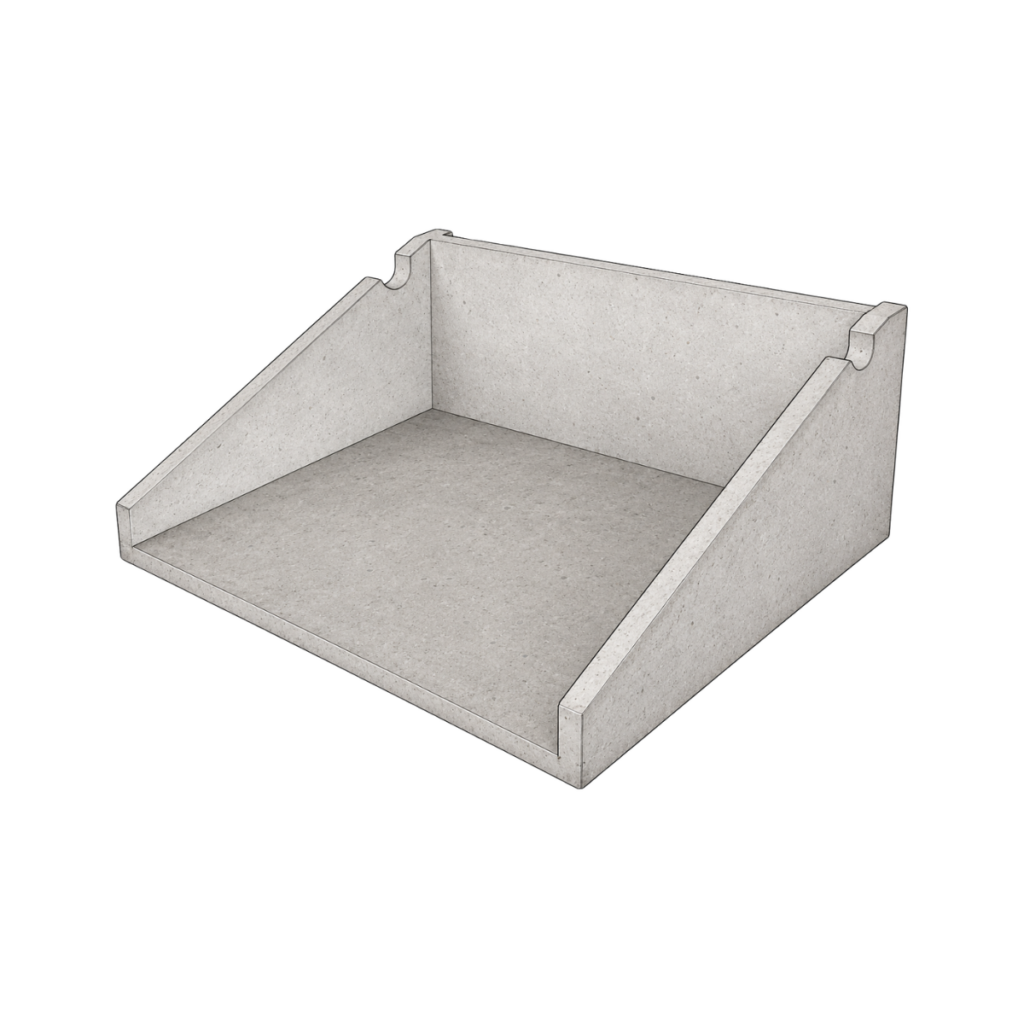

Precast stone trap options for managing runoff and solids where required.

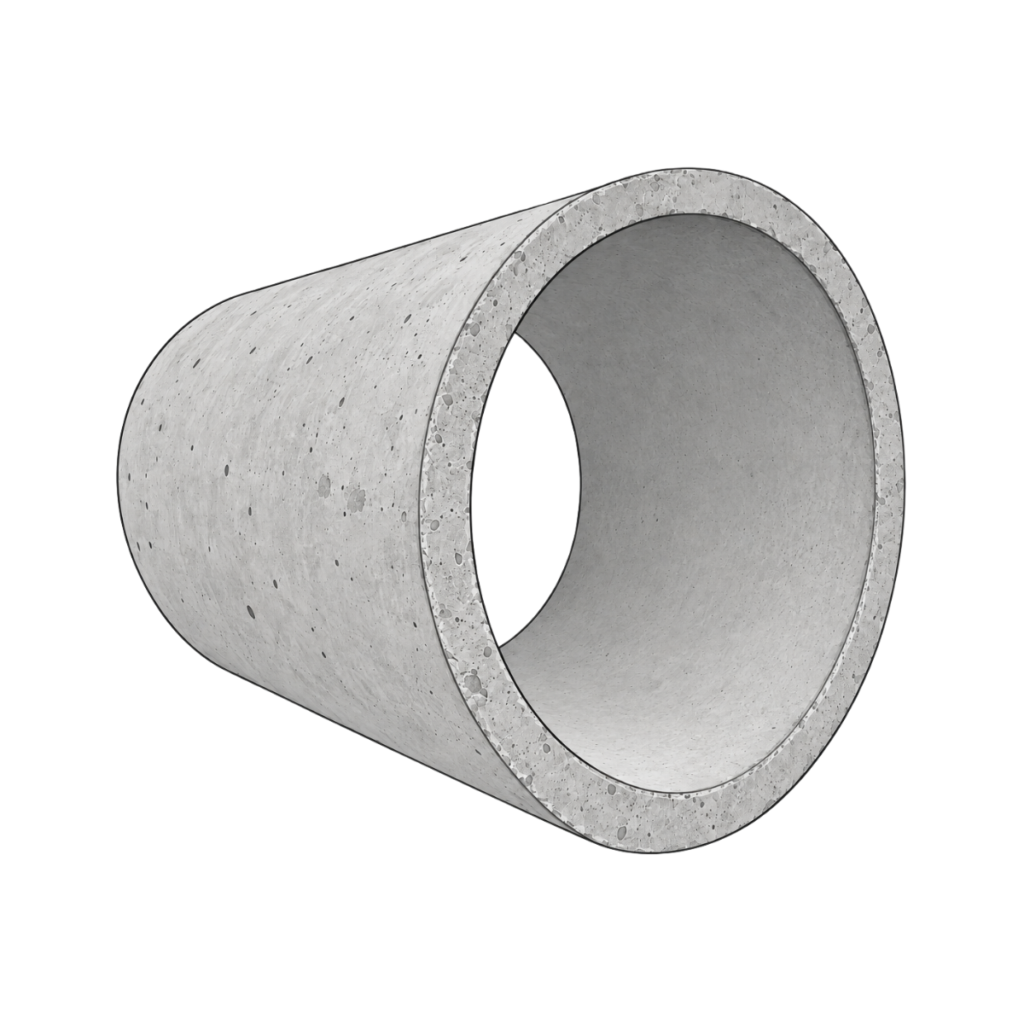

Precast drainage components for the wider bunker and yard layout.

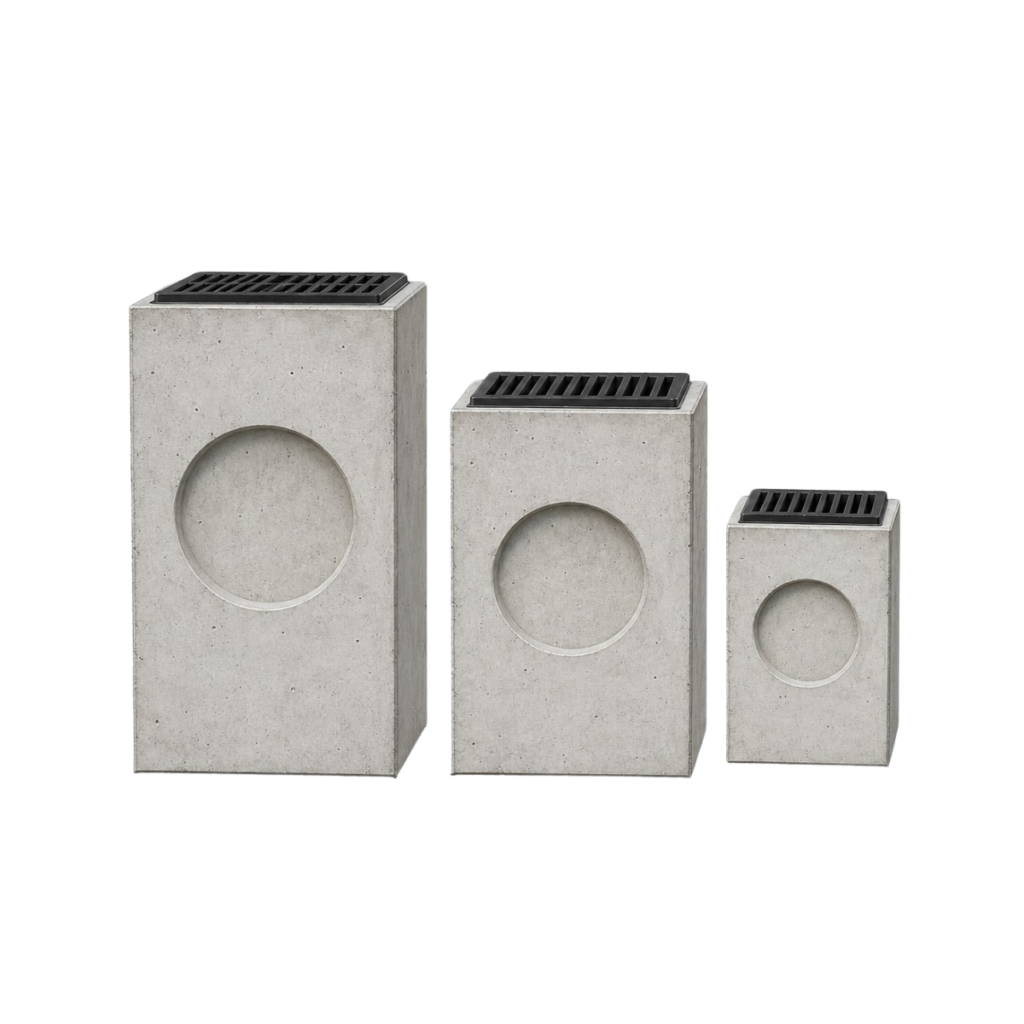

Concrete sump options for collection and drainage applications.

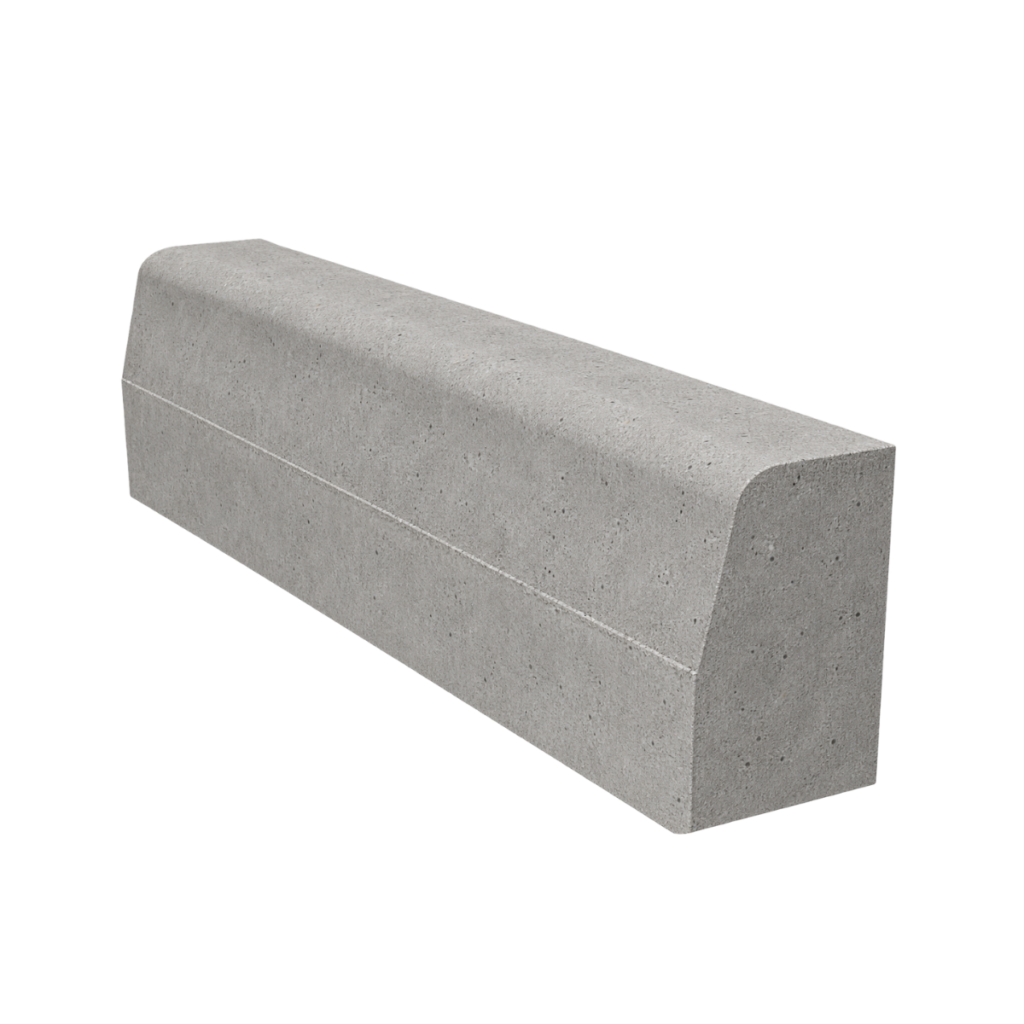

Precast kerbs for edges, channels and related site works.

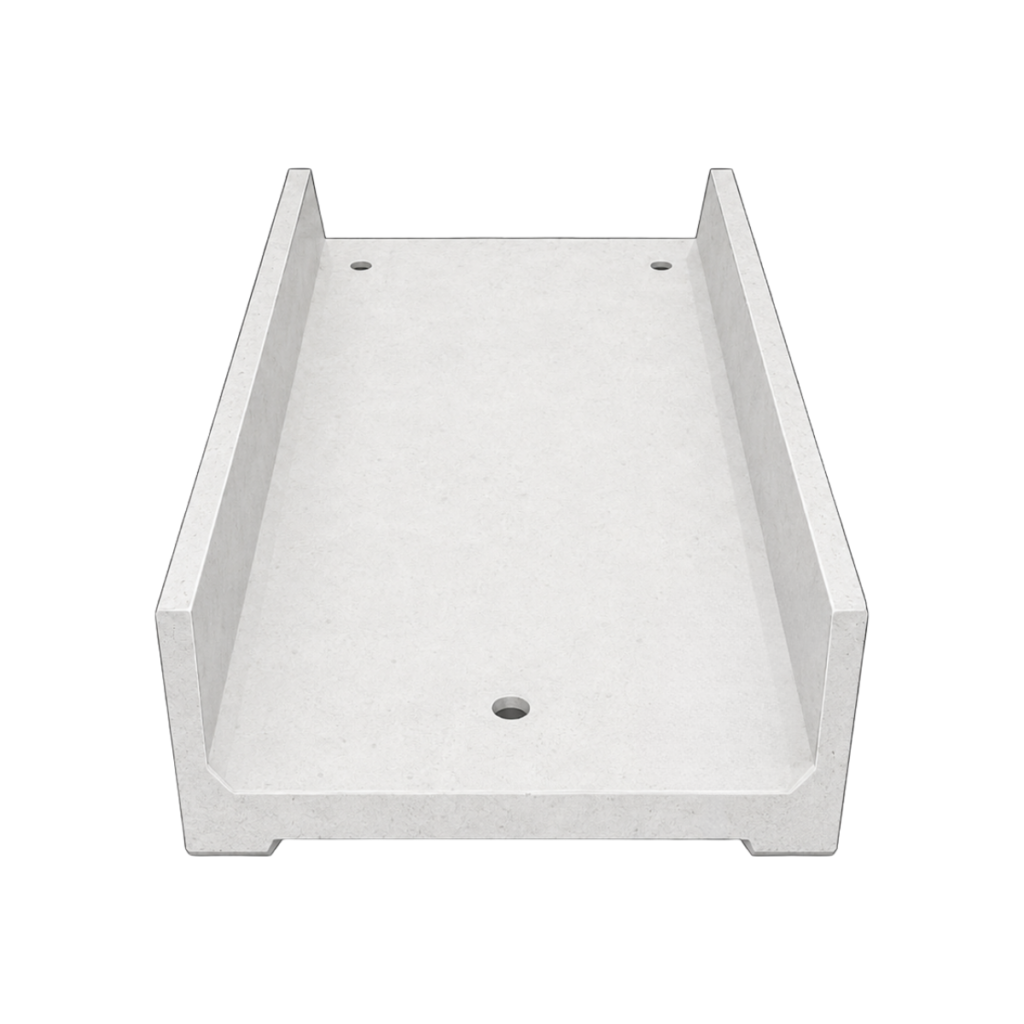

Precast concrete feeders for practical on-farm feeding.
Talk to Wade about the wider precast requirements for your bunker project, including drainage and supporting site components.
Tell us about your herd, feed requirements, preferred bunker width and available site area. Wade can help work through the configuration and provide a quote for the system and any related precast products required.
