A durable precast concrete pit for underground telecommunications cable connections. Cable access inserts on both sides allow cables to pass into the chamber for connection, while the removable three-section timber lid provides straightforward access when required.

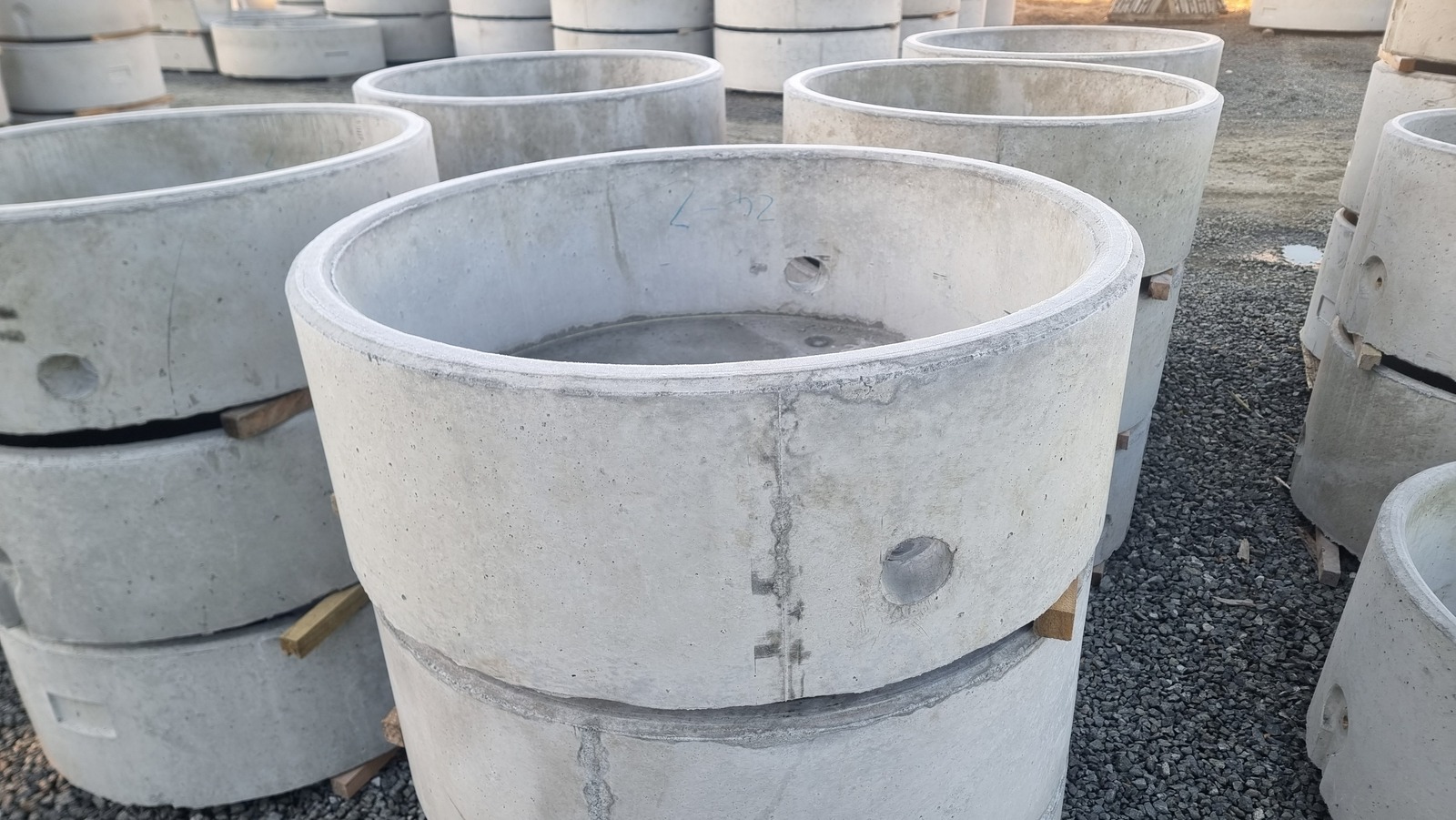

The Wade Cable Pit provides a precast concrete chamber for underground telecommunications cable connections.
Cable access inserts are provided on both sides of the pit, allowing cables to pass through the concrete wall and be joined inside the chamber.

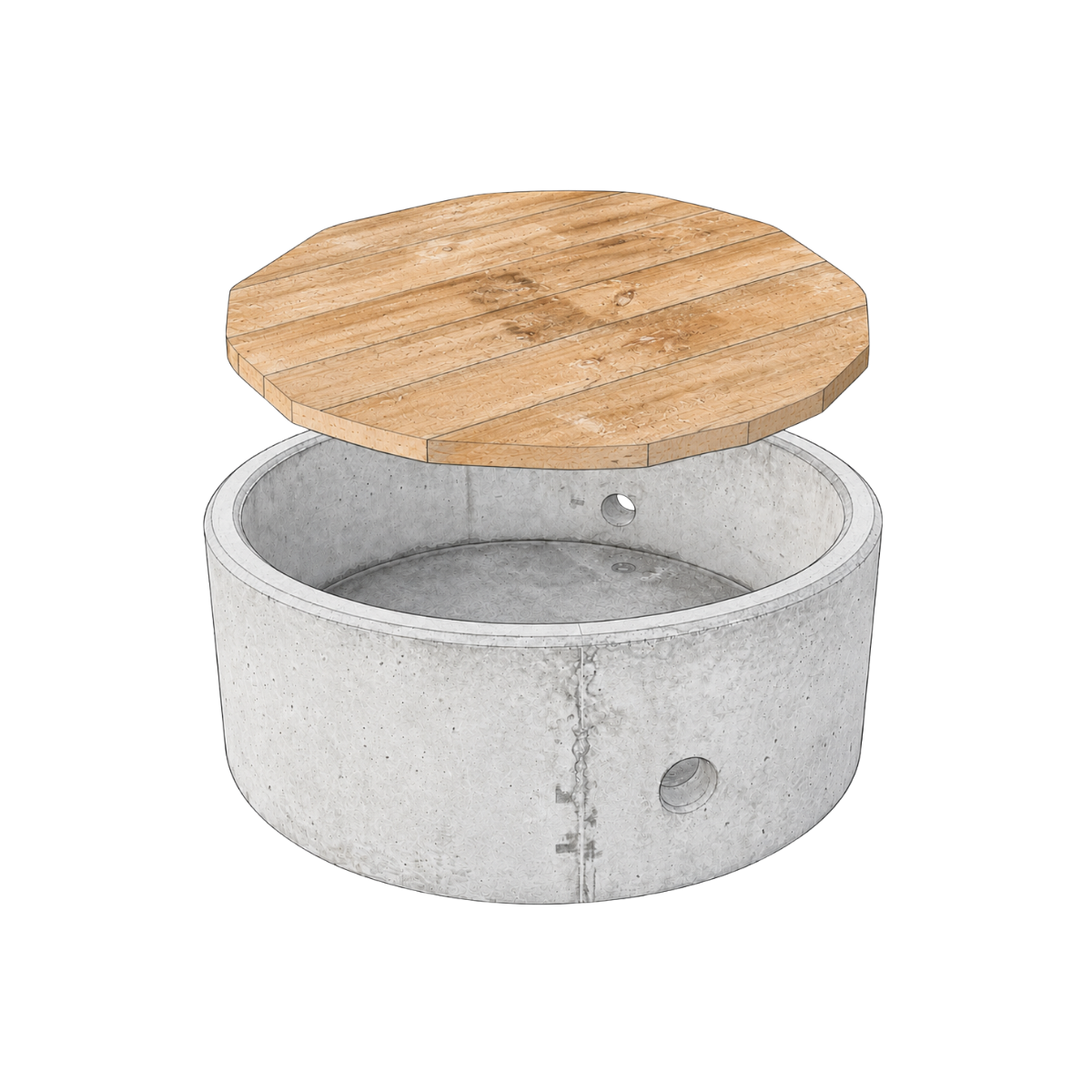

Access from above is provided by a removable timber lid made in three sections. Anti-sliding feet beneath the lid help keep it positioned on the pit.

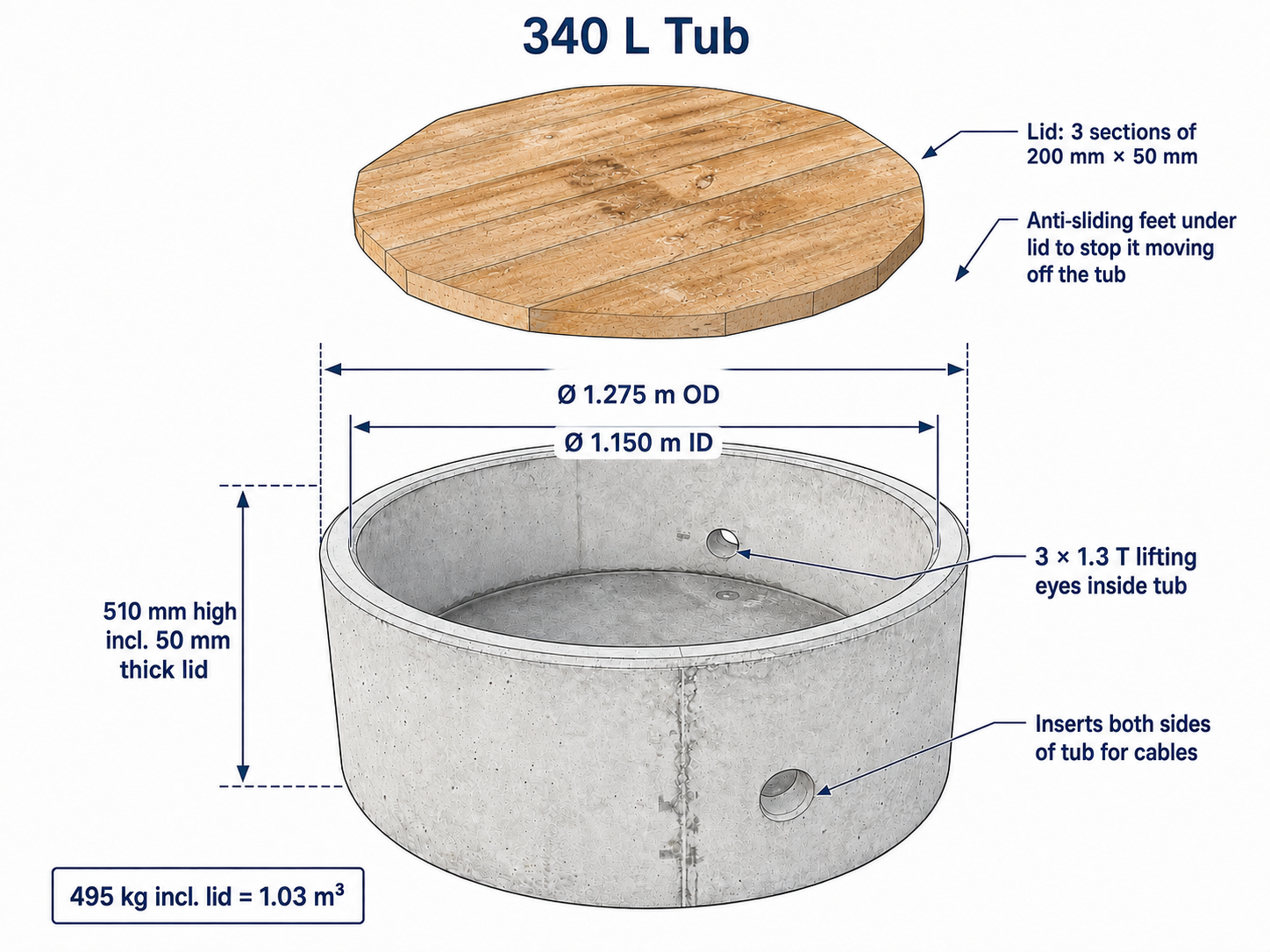

| Construction | Precast concrete |
|---|---|
| Capacity | 340 L |
| Total height | 510 mm including 50 mm thick lid |
| Outer diameter | 1,275 mm |
| Inner diameter | 1,150 mm |
| Weight | 495 kg including lid |
| Lid | 3 × 200 mm wide, 50 mm thick timber sections |
| Cable access | Inserts on both sides |
| Lifting eyes | 3 × 1.3 ton lifting eyes inside pit |
The pit includes three 1.3 ton lifting eyes located inside the tub.
The lid consists of three 200 mm wide, 50 mm thick timber sections. Anti-sliding feet beneath the lid help prevent it moving off the tub.

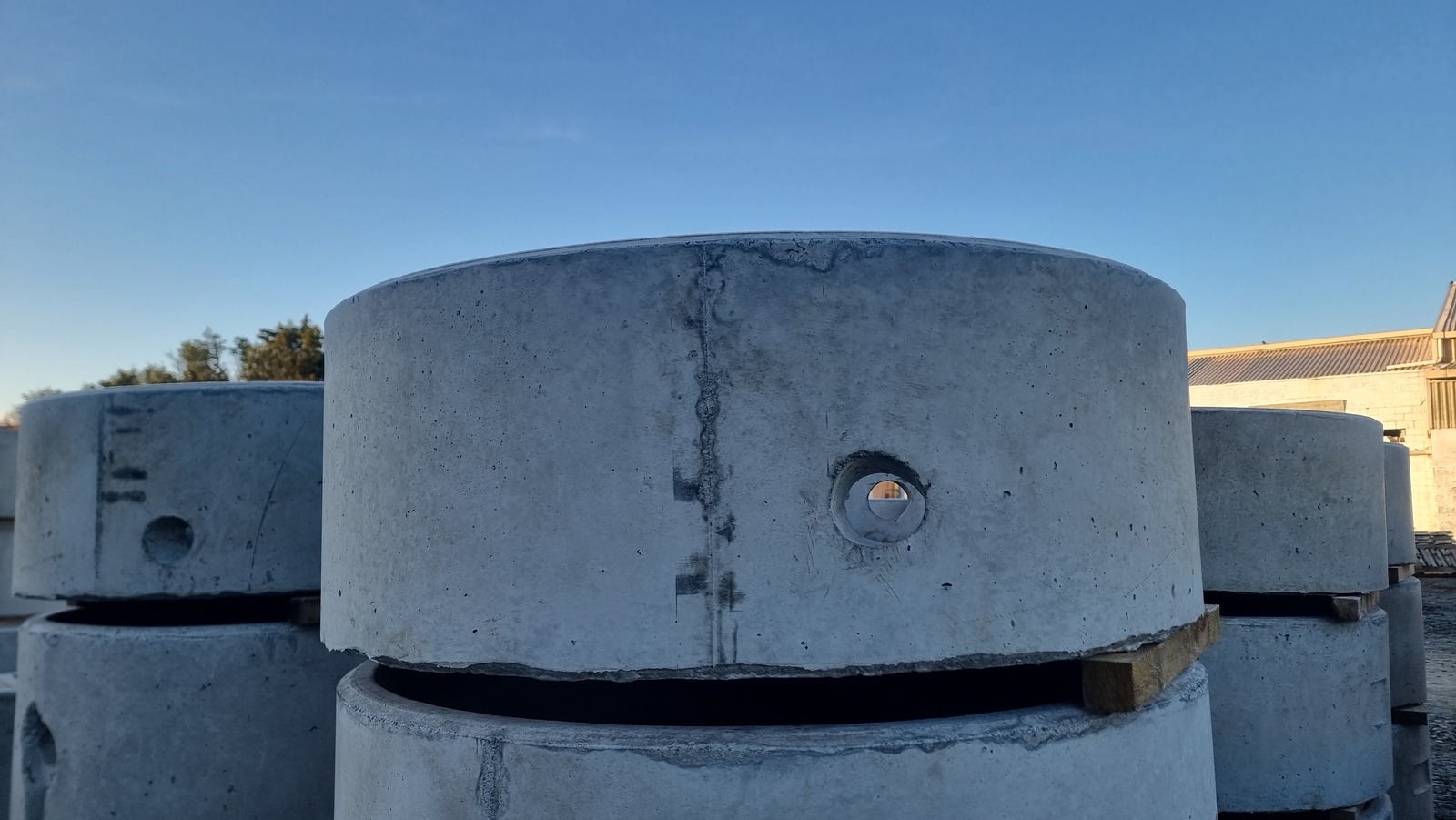

Cable access inserts are provided on both sides of the pit.
