Precast concrete silage feeders available in narrow and wide configurations, manufactured to the required length for fence-line or two-sided cattle feeding.

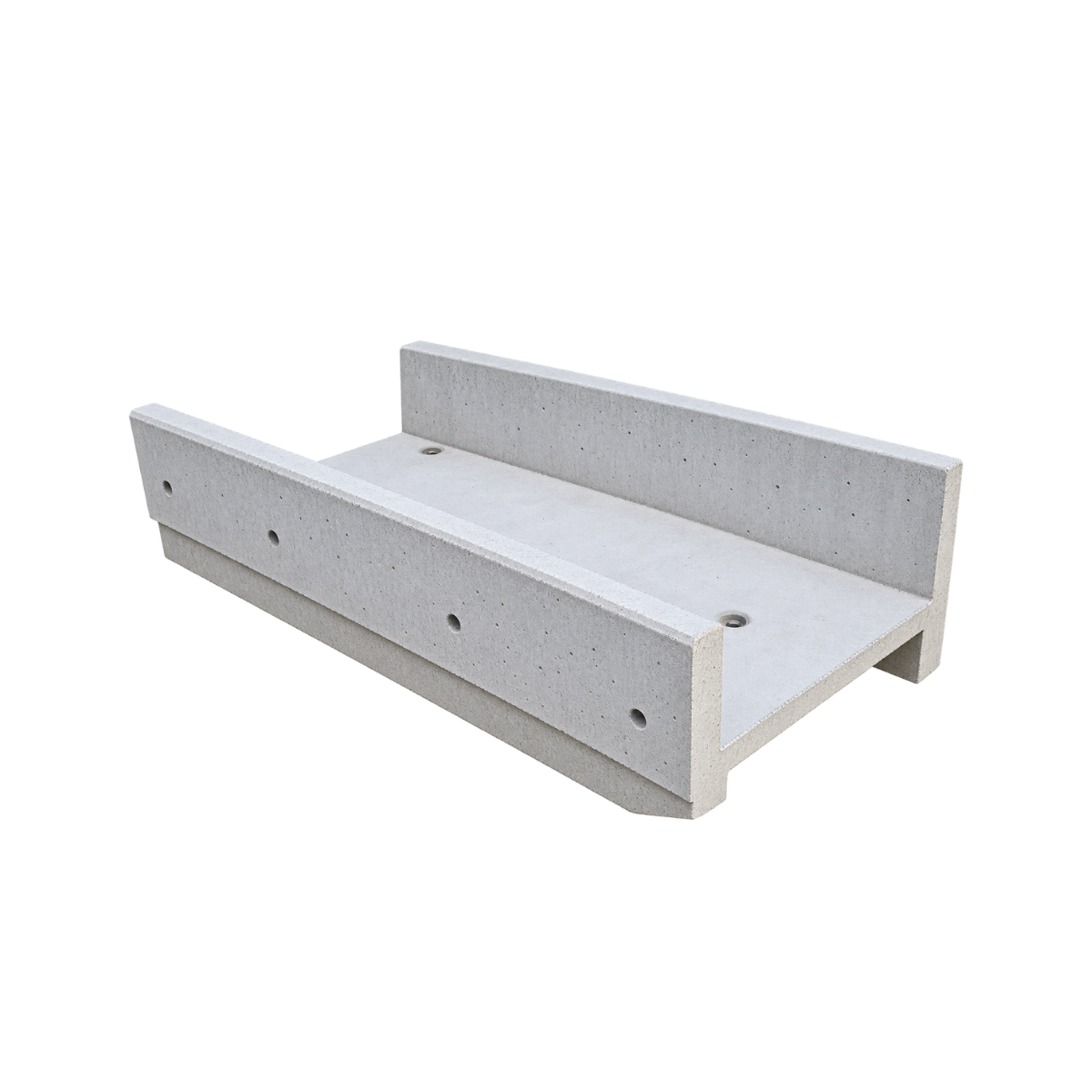

Wade concrete silage feeders provide a durable precast concrete feeding system for cattle. They are available in narrow and wide configurations, with the feeder manufactured to the required length and end sections added once the specified length is reached.

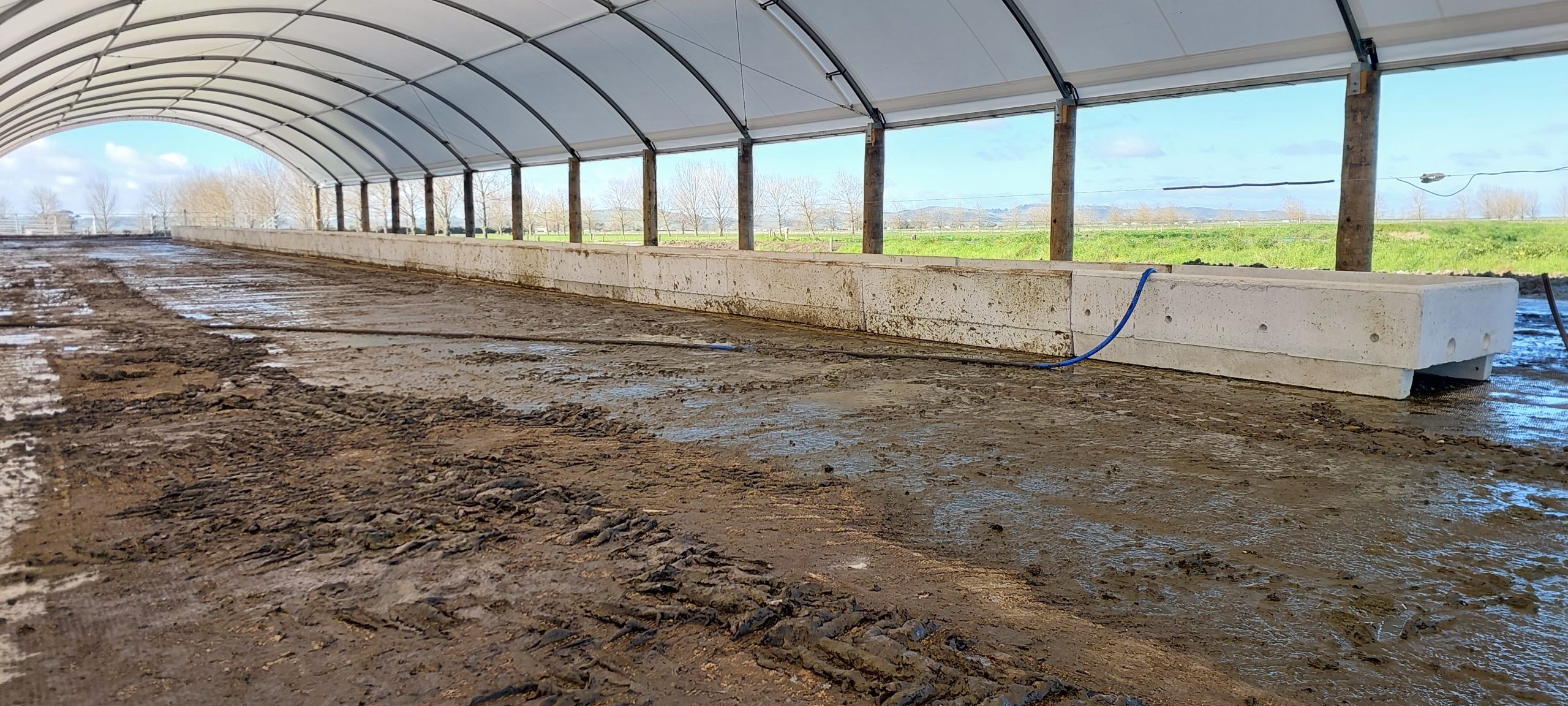

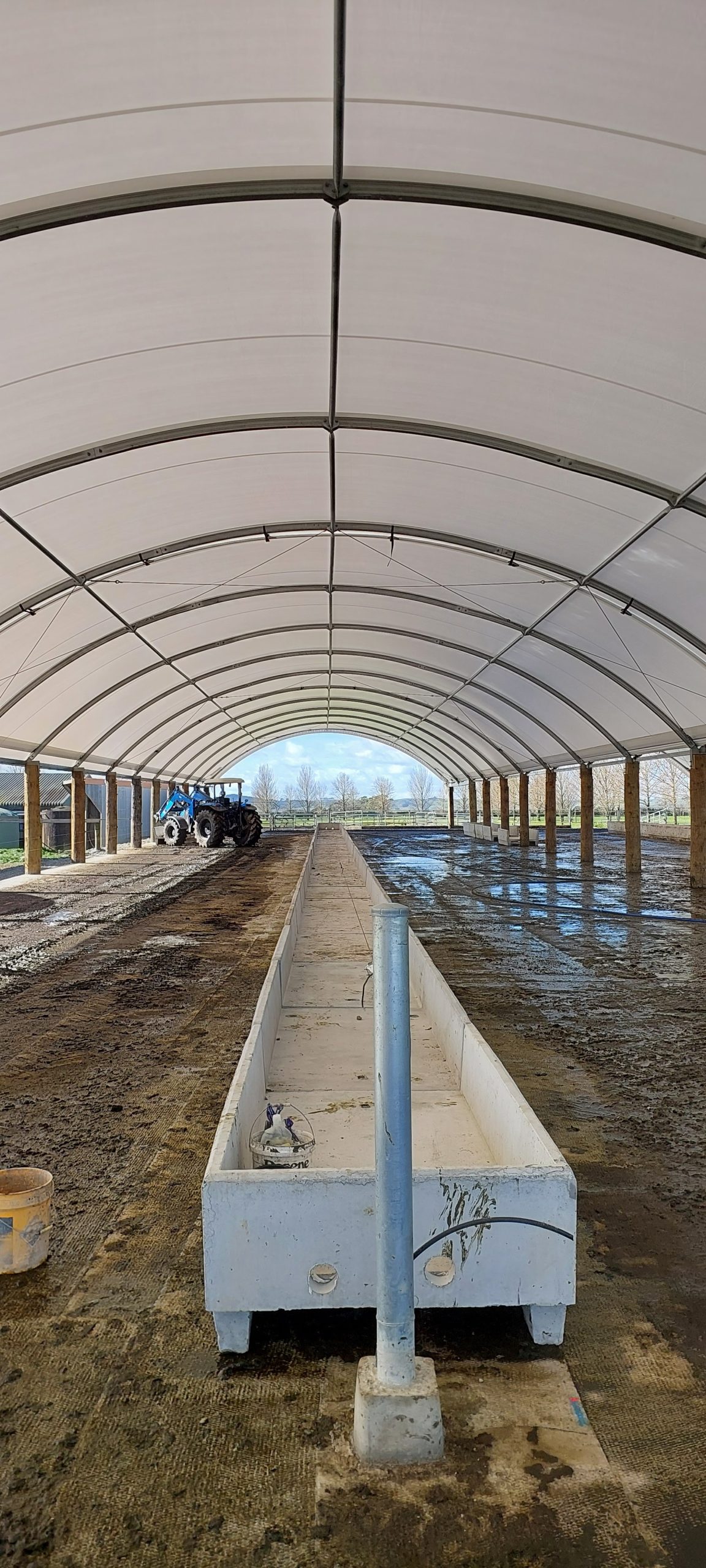

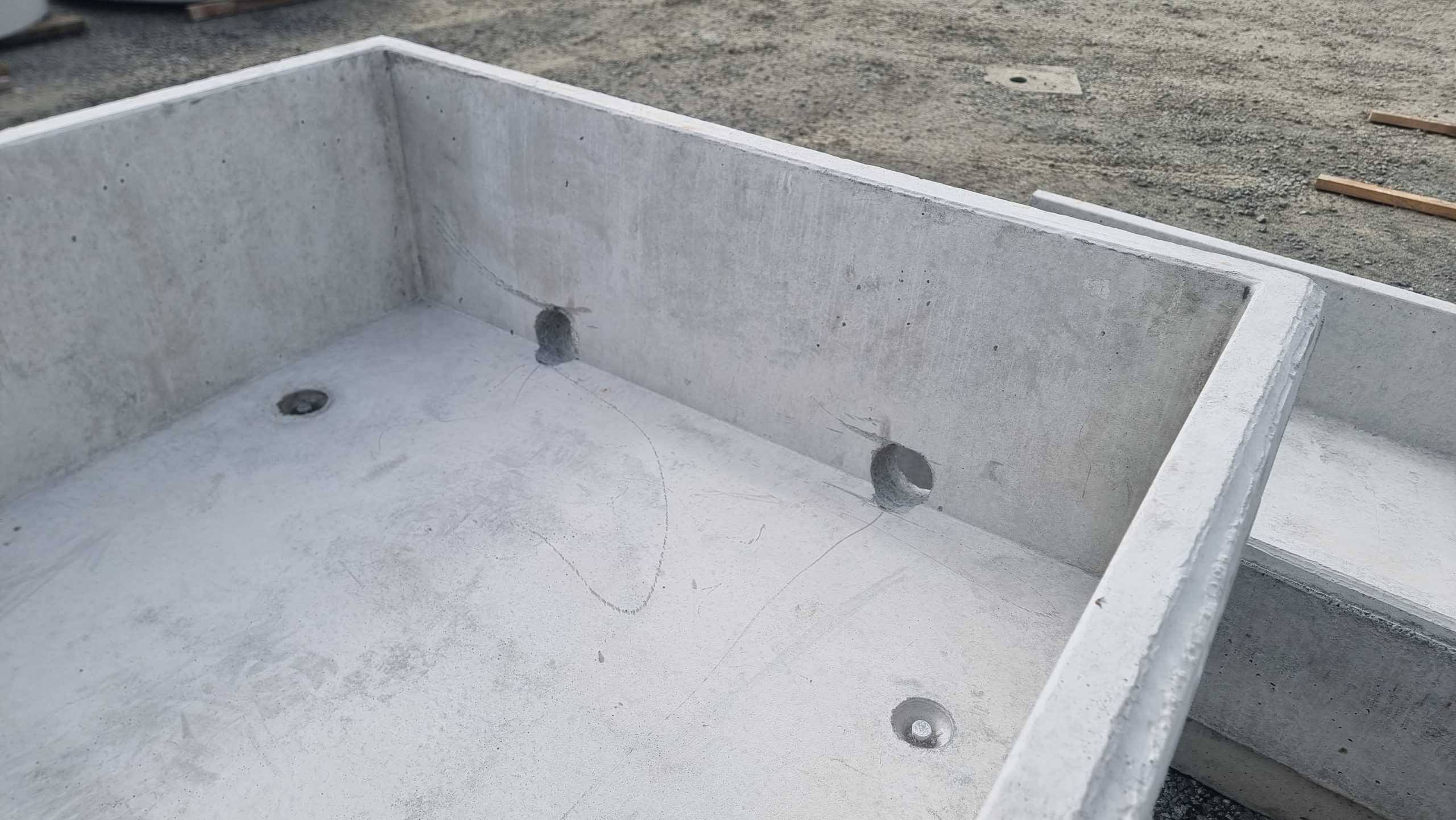

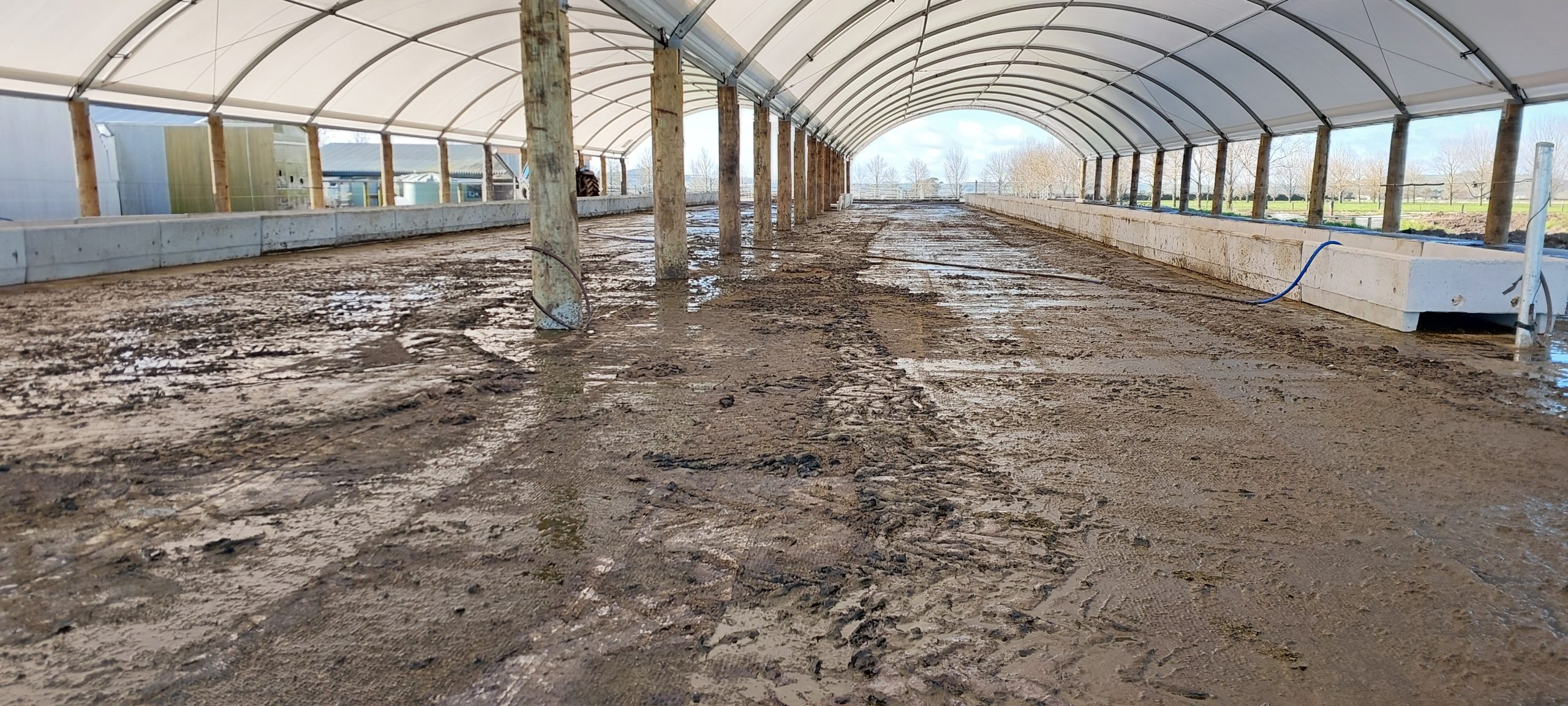

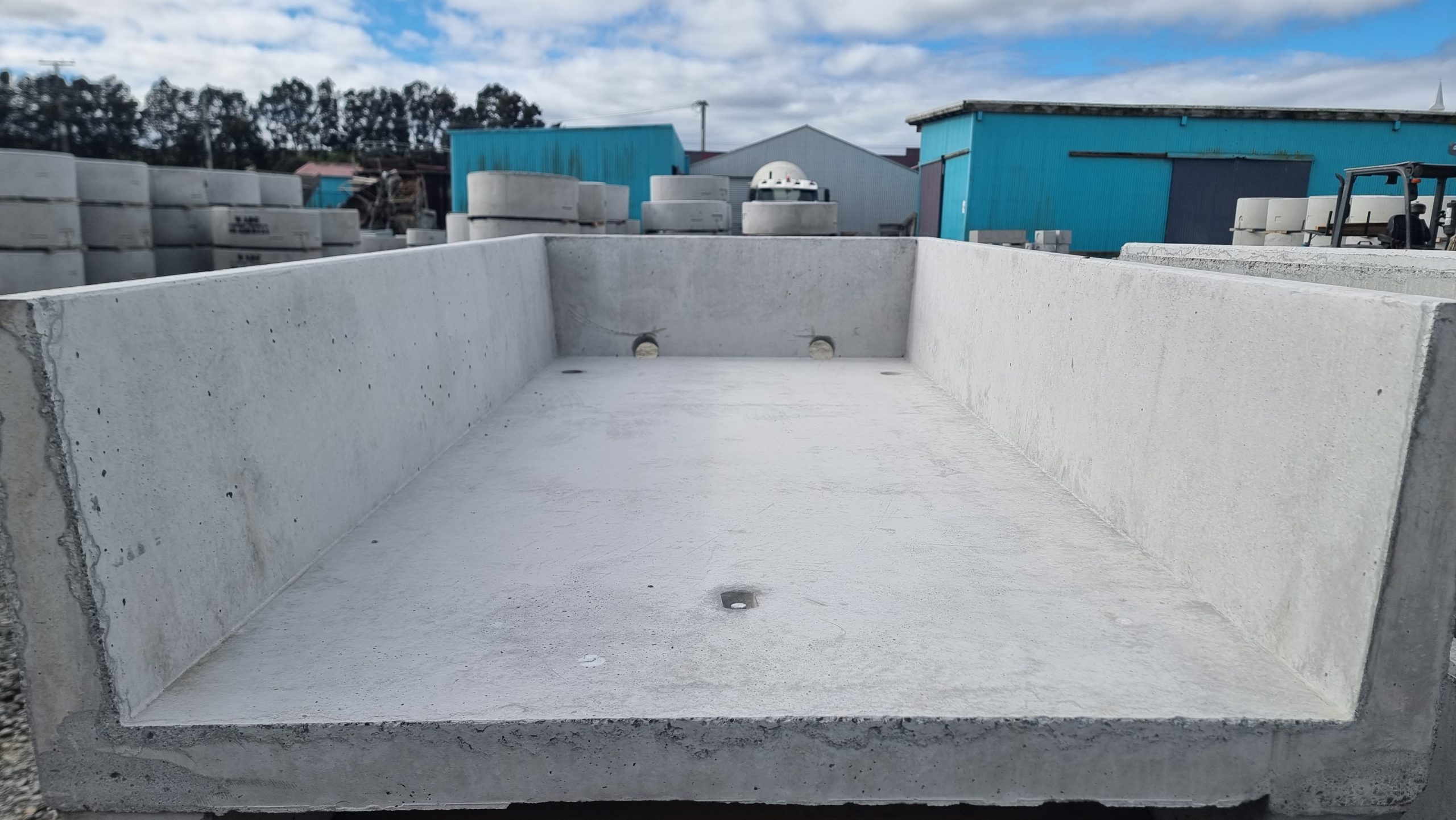

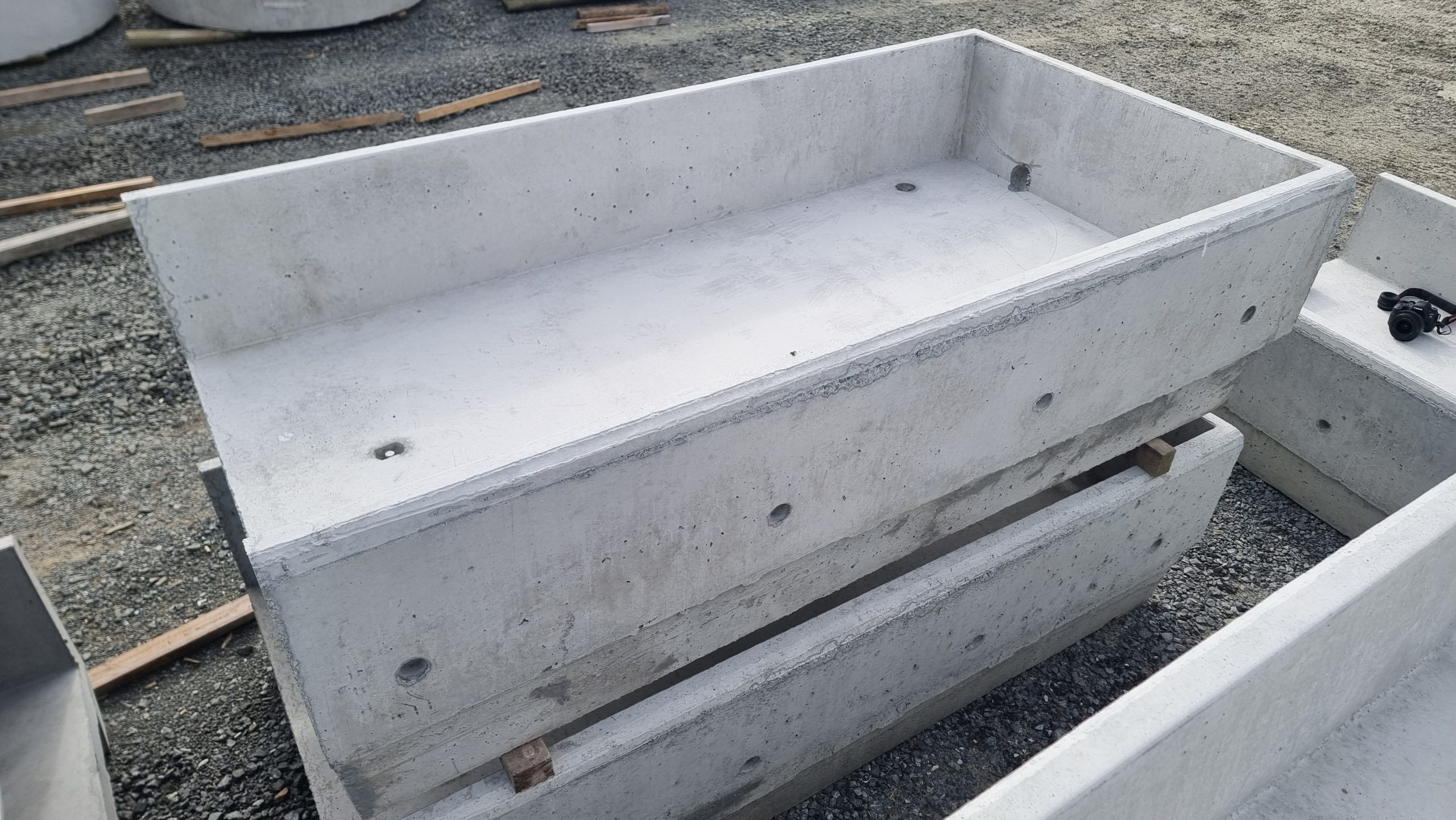

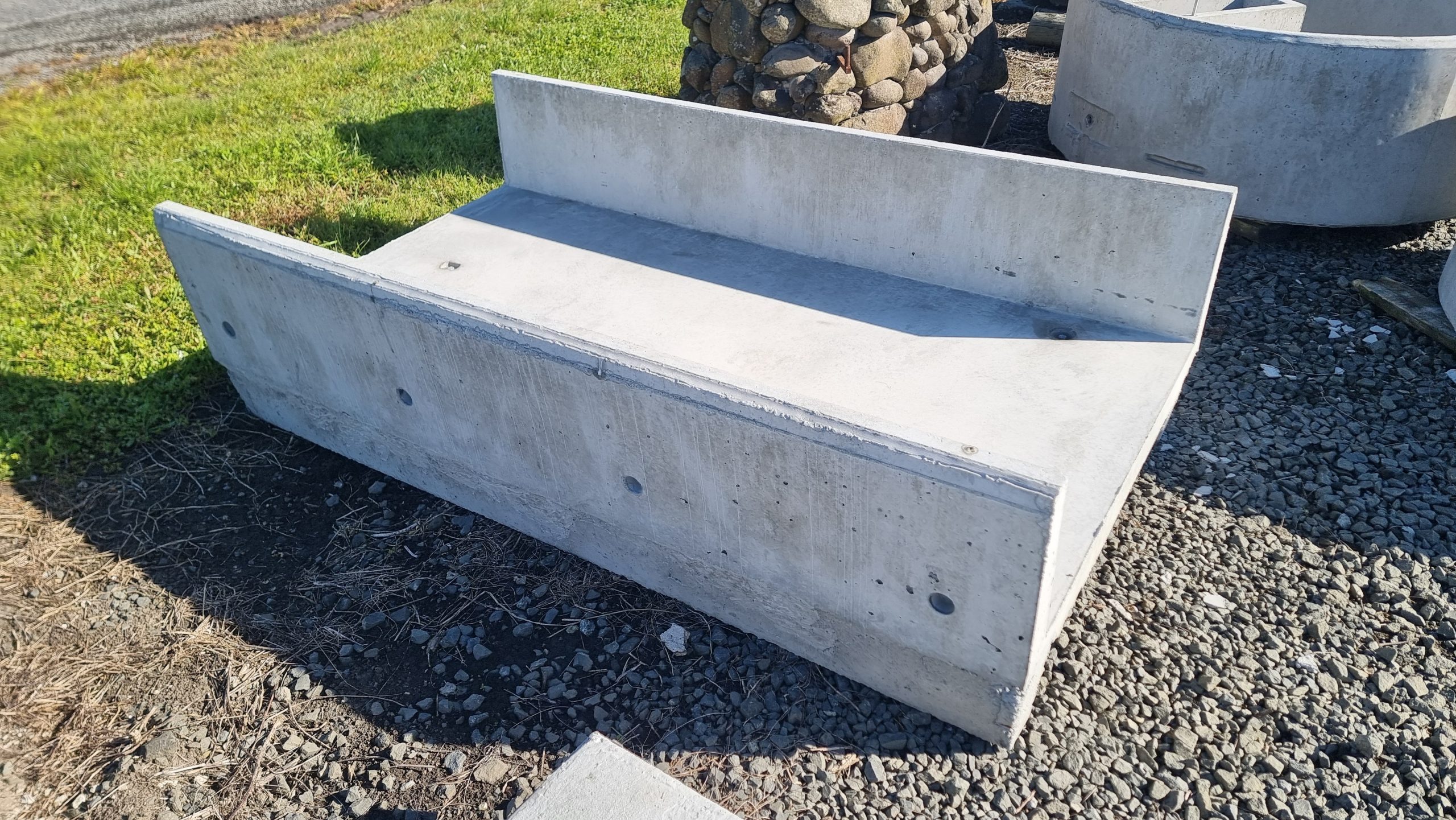

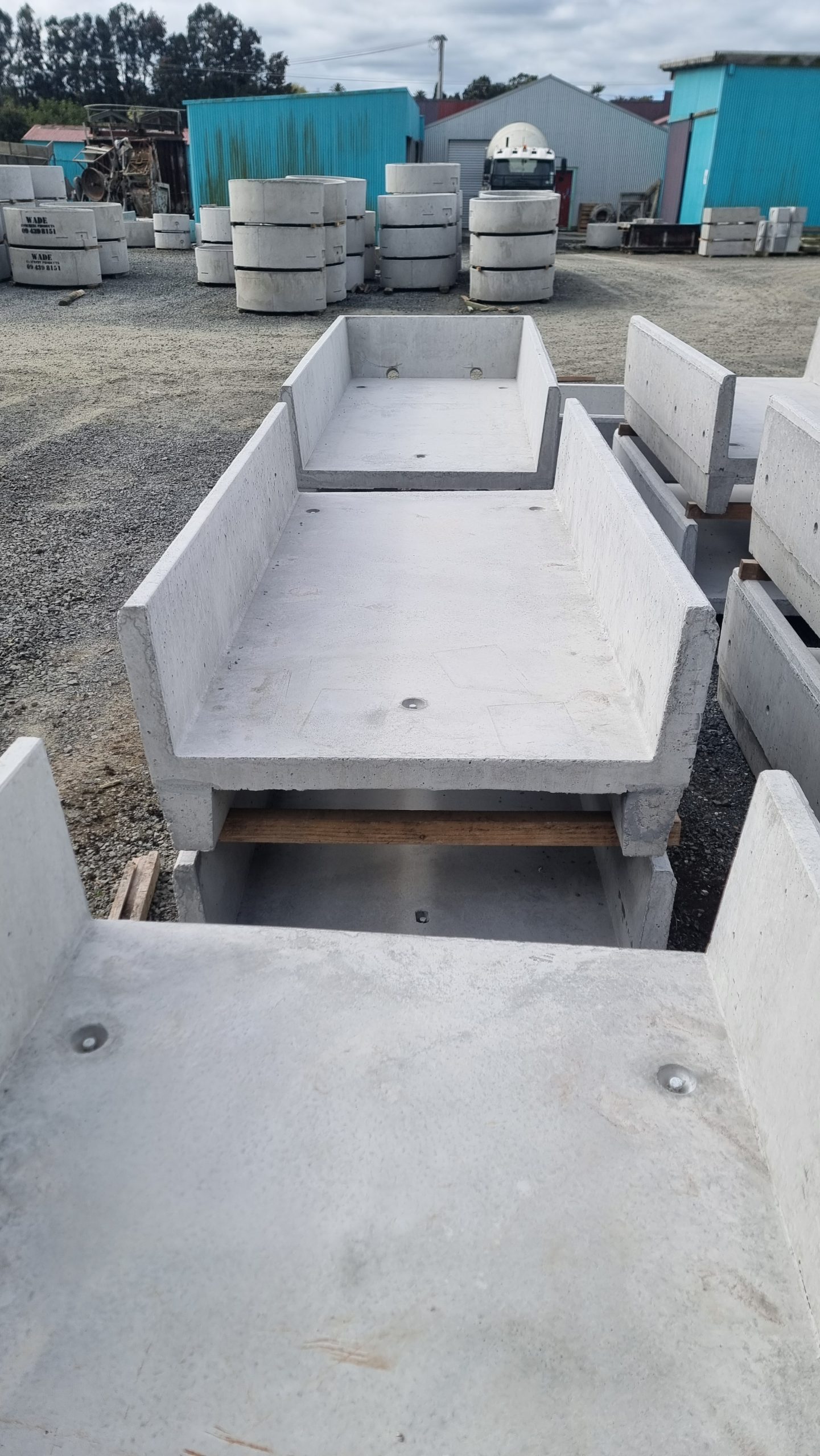

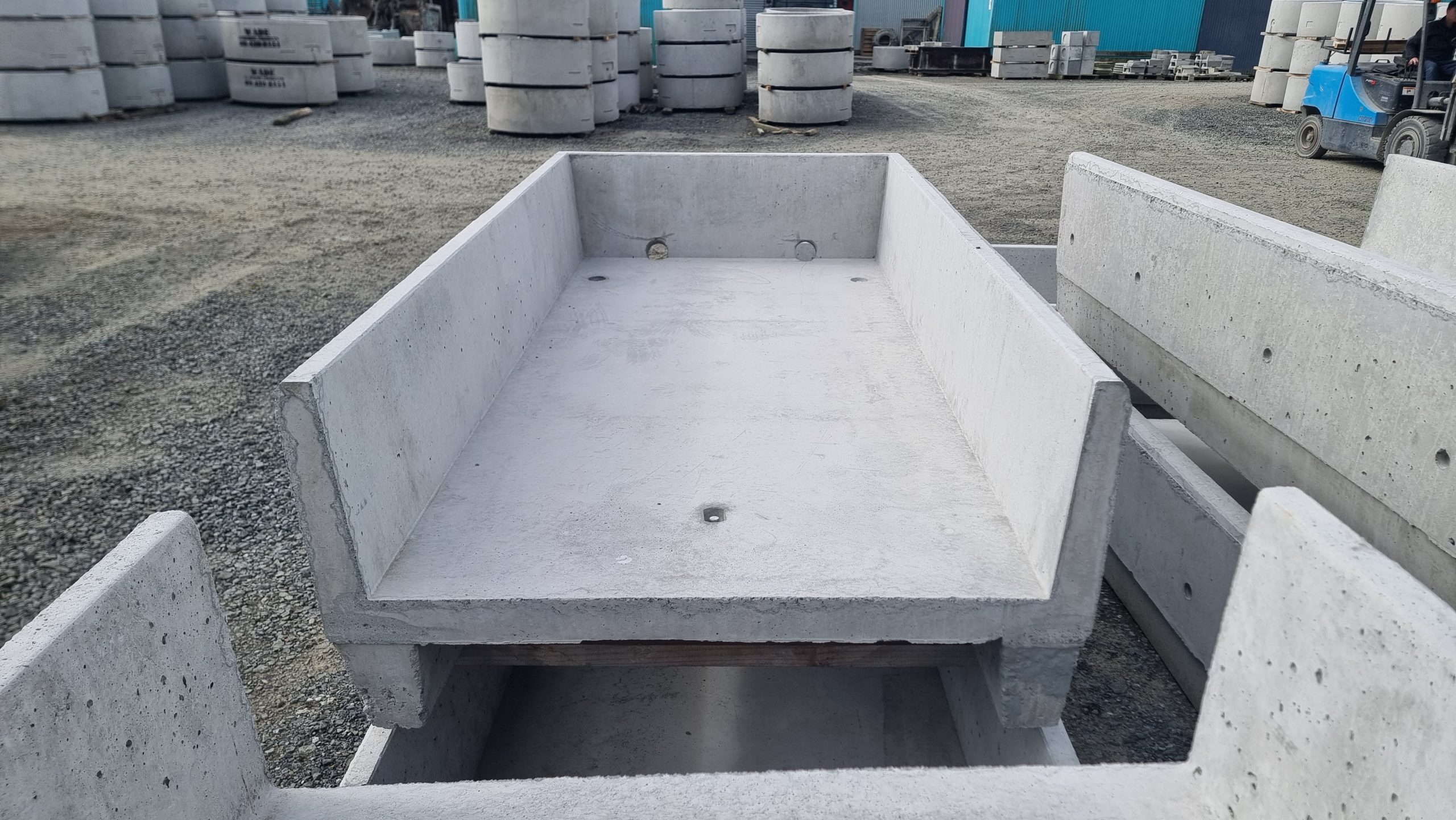

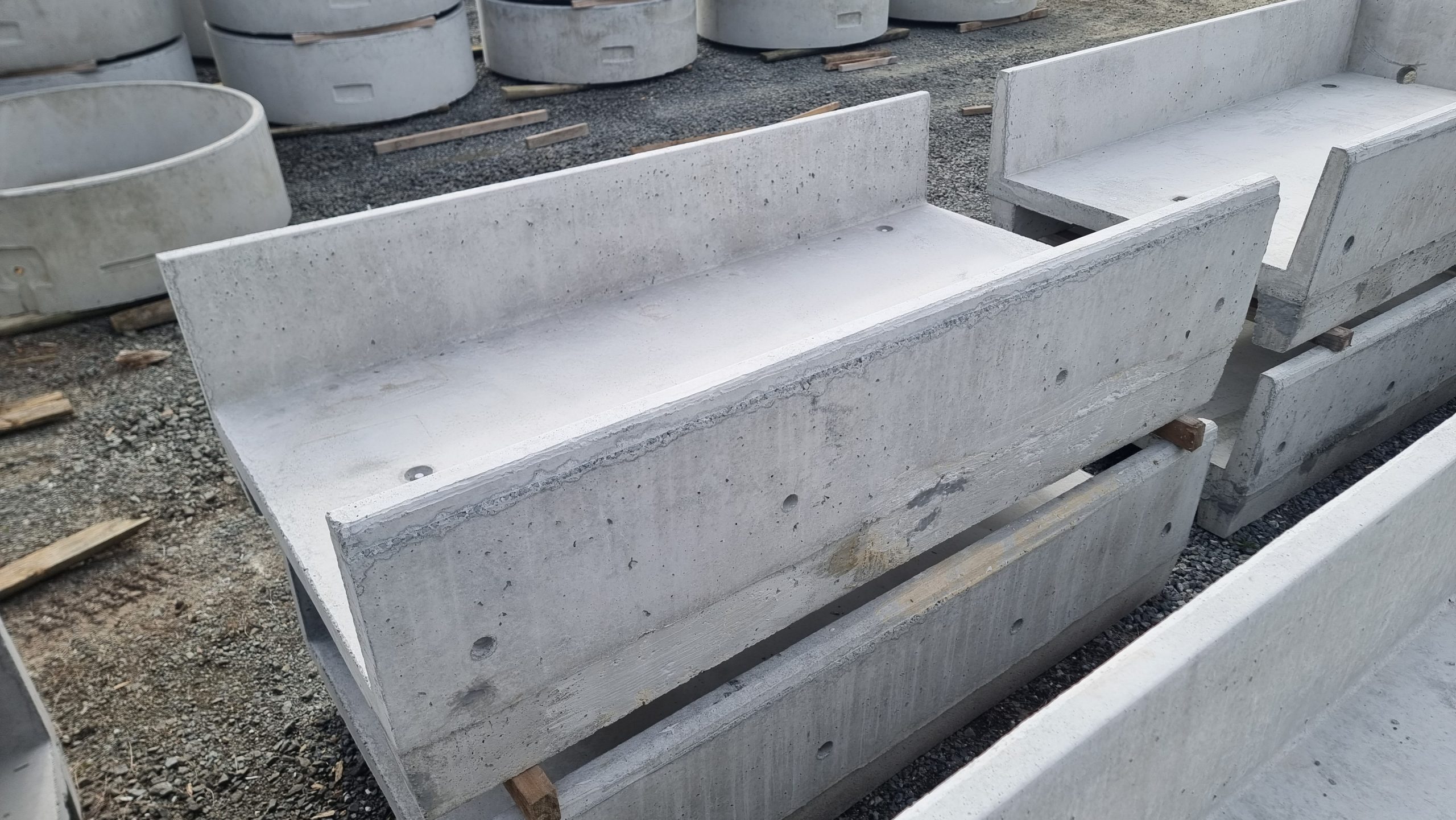

The narrow feeder is designed for installation along a fence line, while the wider configuration allows cattle to feed from both sides. Both configurations have drainage openings through the base.

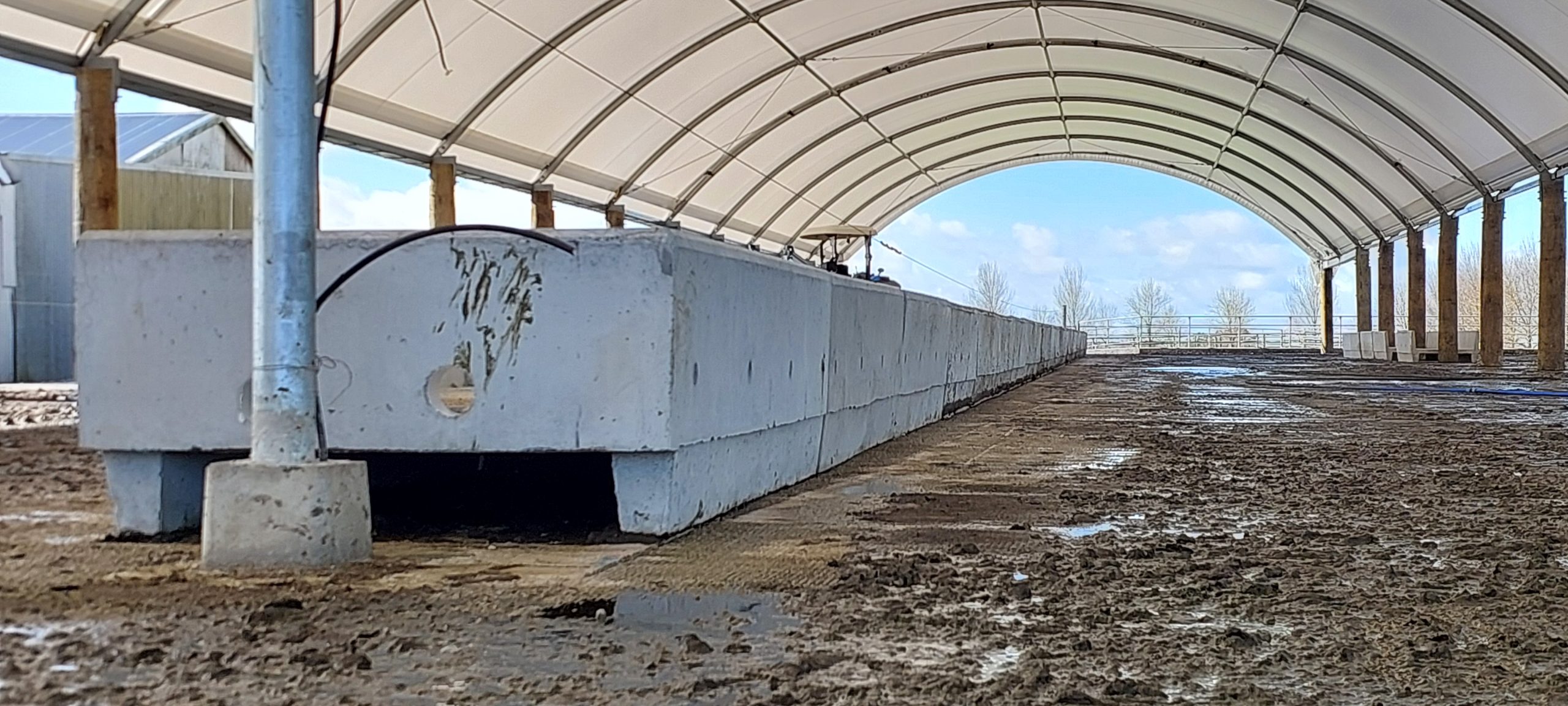

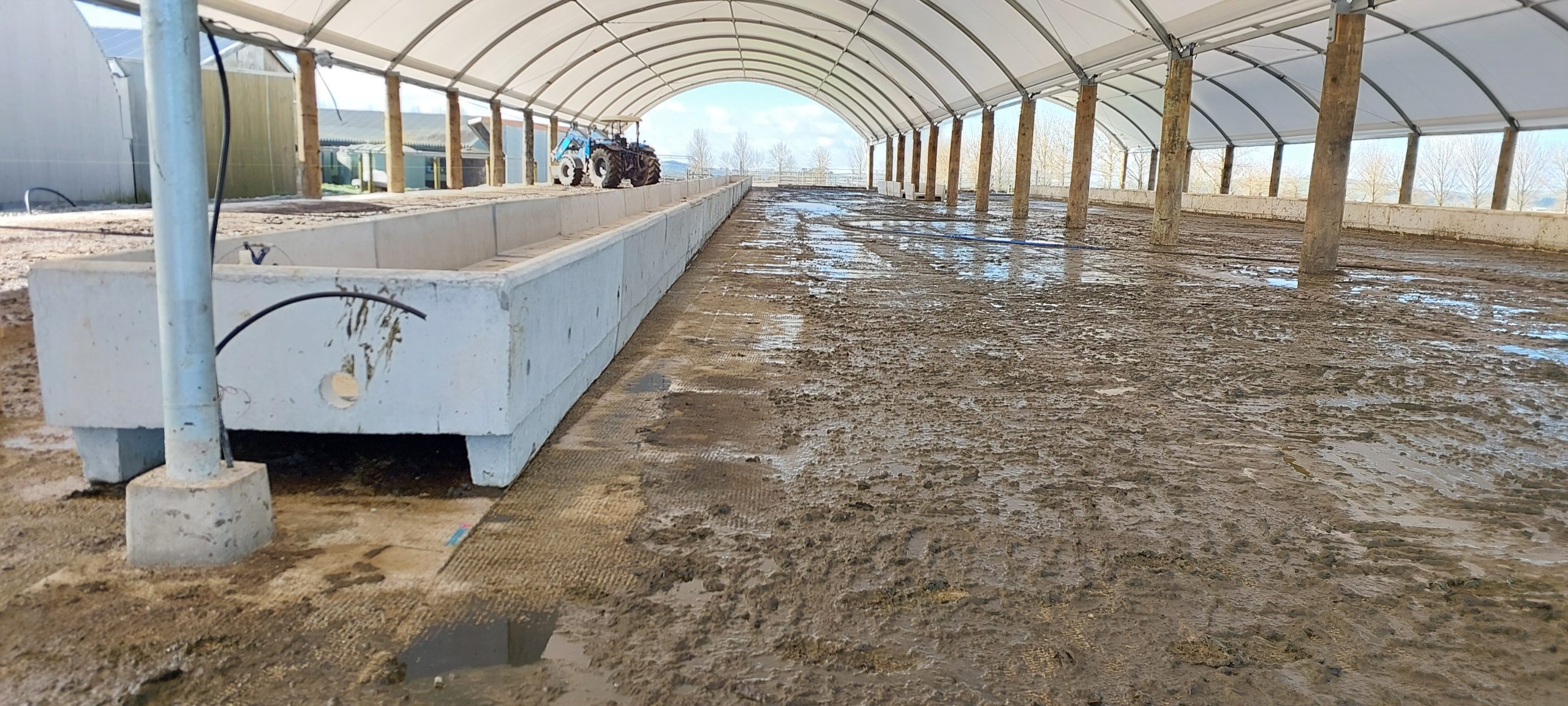

Custom feet are available to suit the installation, with feet able to be positioned parallel or perpendicular to the feeder and manufactured from 80 mm to 200 mm high.
| Configuration | Width | Length | Depth | Weight | Typical arrangement |
|---|---|---|---|---|---|
| Narrow | 770 mm | 2,400 mm or to customer requirement | 550 mm including feet / 480 mm internal | 750 kg | Designed for installation along a fence line |
| Wide | 1,310 mm | 2,350 mm or to customer requirement | 550 mm total / 385 mm internal | 1,100 kg | Allows cattle to feed from both sides |
Both configurations can be manufactured to the required length. End sections are added once the feeder has reached the specified length. Custom feet can be positioned parallel or perpendicular to the feeder and manufactured from 80 mm to 200 mm high.
| Width | 770mm, 1310mm |
|---|---|
| Custom feet | Feet can be positioned parallel or perpendicular to the feeder and manufactured from 80 mm to 200 mm high. |
| Weight | 750 kg, 1100 kg |
| Length | 2400 mm, 2350 mm |
| Depth | 480 mm, 385 mm |
The feeder configuration should be selected according to how cattle will access it. The narrow configuration is intended for fence-line installation, while the wide configuration provides access for feeding from both sides. Feeder lengths can be manufactured to customer requirements. Confirm the required overall length and preferred foot arrangement when ordering.
Talk to our team about suitability, delivery and pricing for your site.
