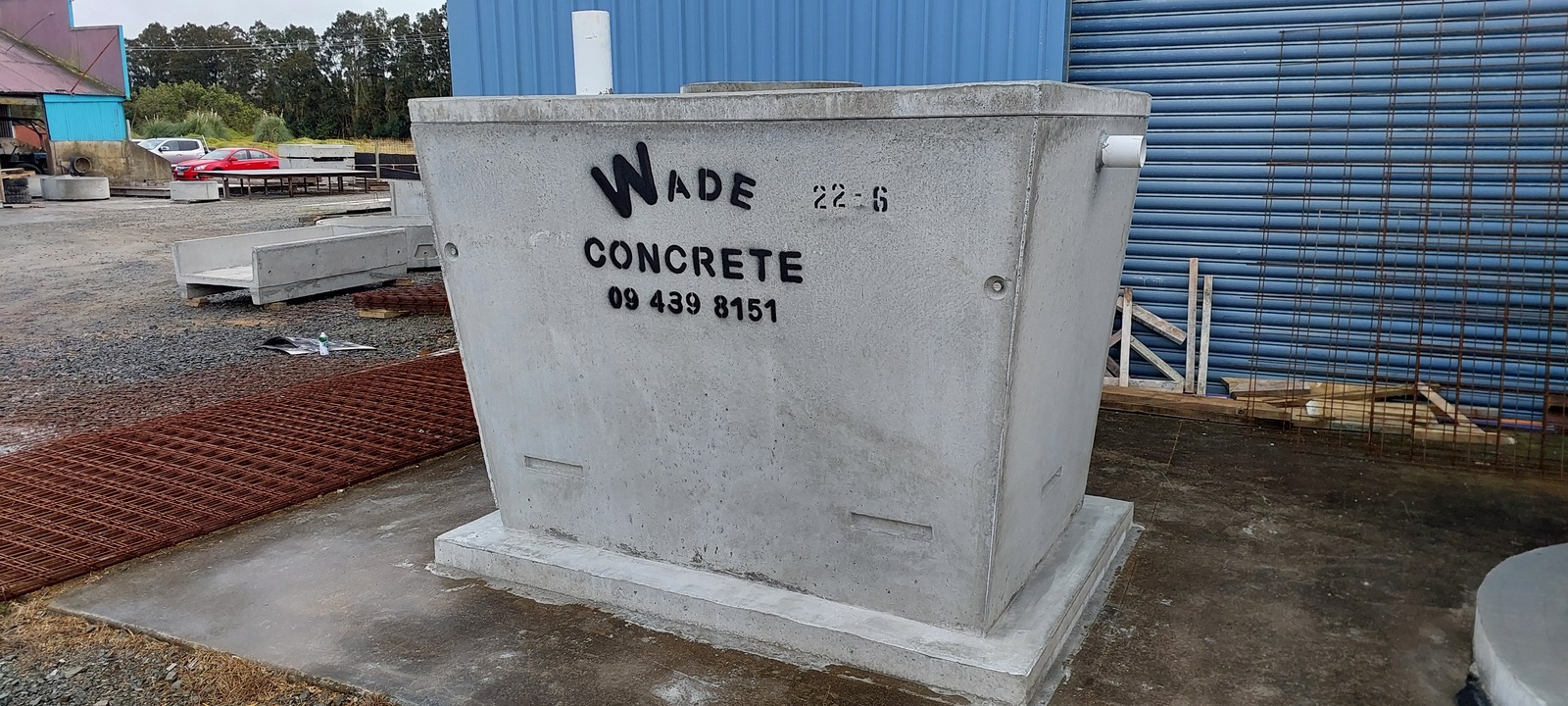

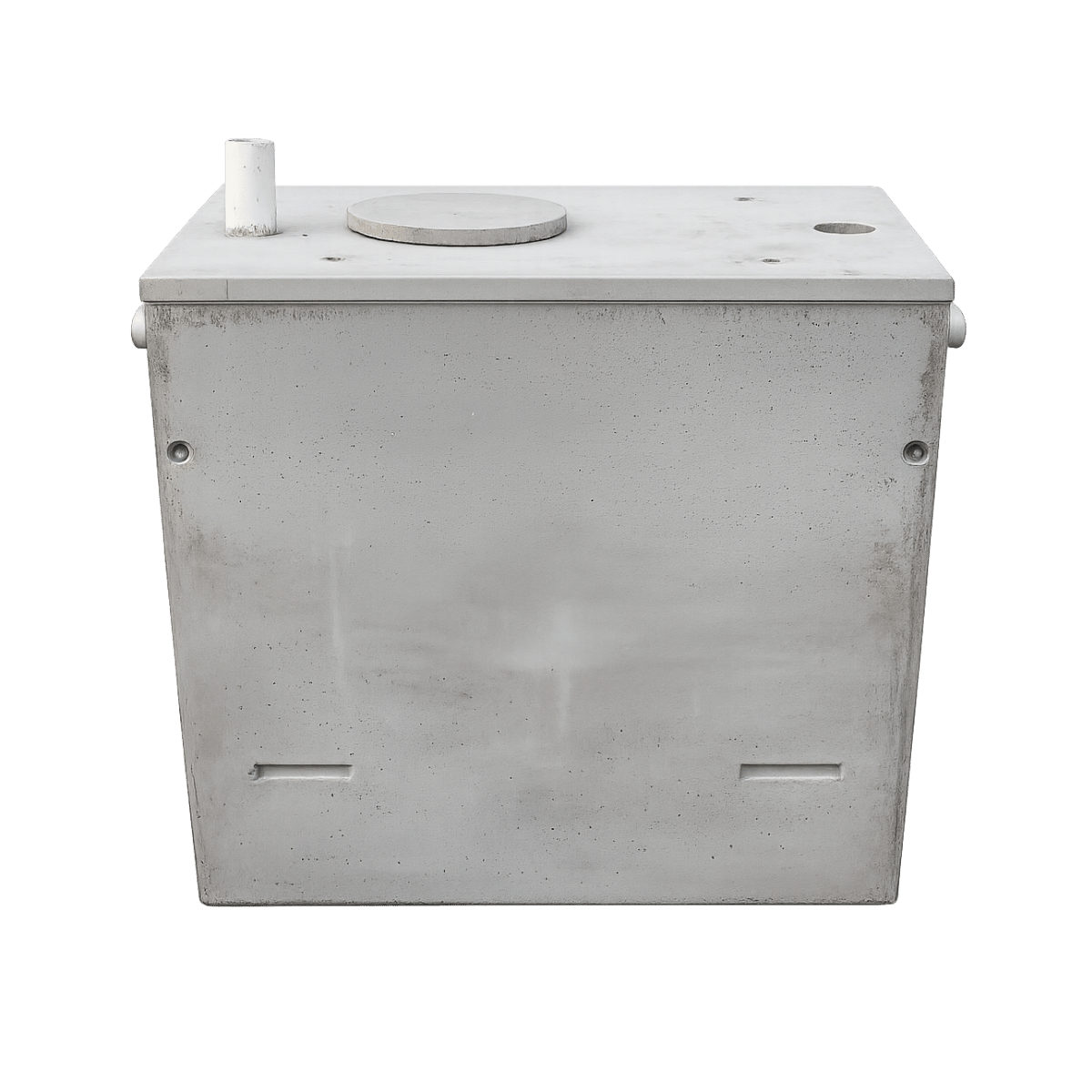

A locally manufactured 4,500 litre concrete septic tank for residential wastewater systems, available in single chamber, double chamber and pump chamber configurations. Includes a T1800 outlet Bio Filter.
A locally manufactured 4,500 litre concrete septic tank for residential wastewater systems, available in single chamber, double chamber and pump chamber configurations. Includes a T1800 outlet Bio Filter.

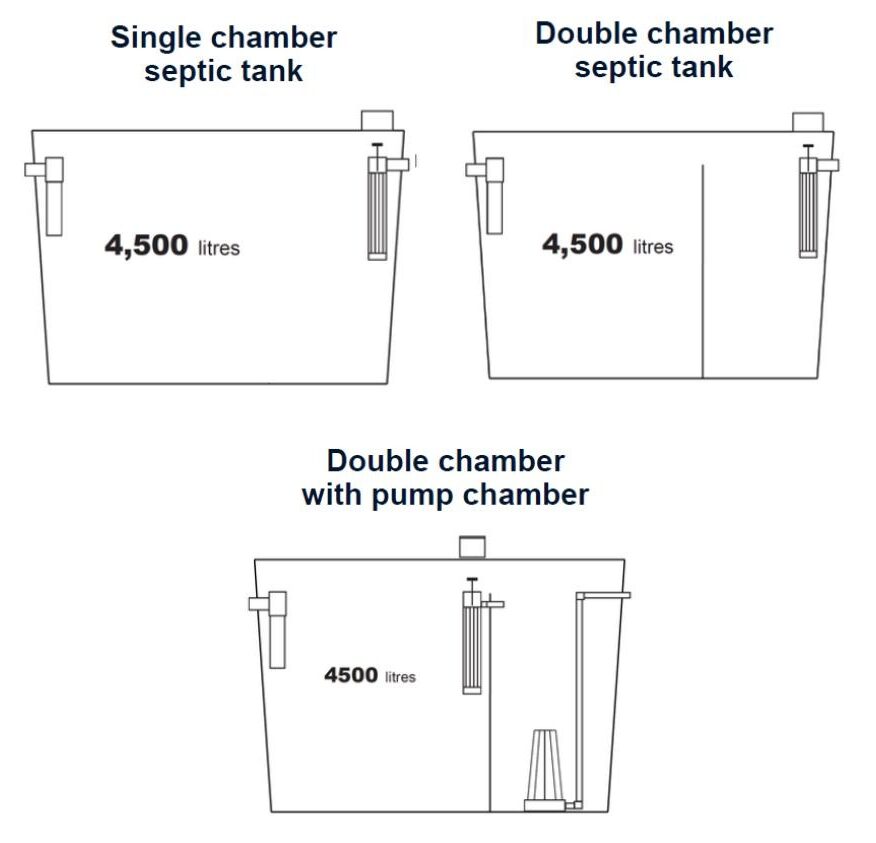

The 4,500L septic tank is available in three chamber configurations to suit different wastewater systems.
| Configuration | Description |
|---|---|
| Single Chamber | Standard single-chamber configuration for straightforward septic applications. |
| Double Chamber | Incorporates an internal dividing wall to provide an additional settling stage. |
| Double Chamber with Pump Chamber | Includes a separate pump chamber for systems where pumped discharge is required. |
Standard configuration

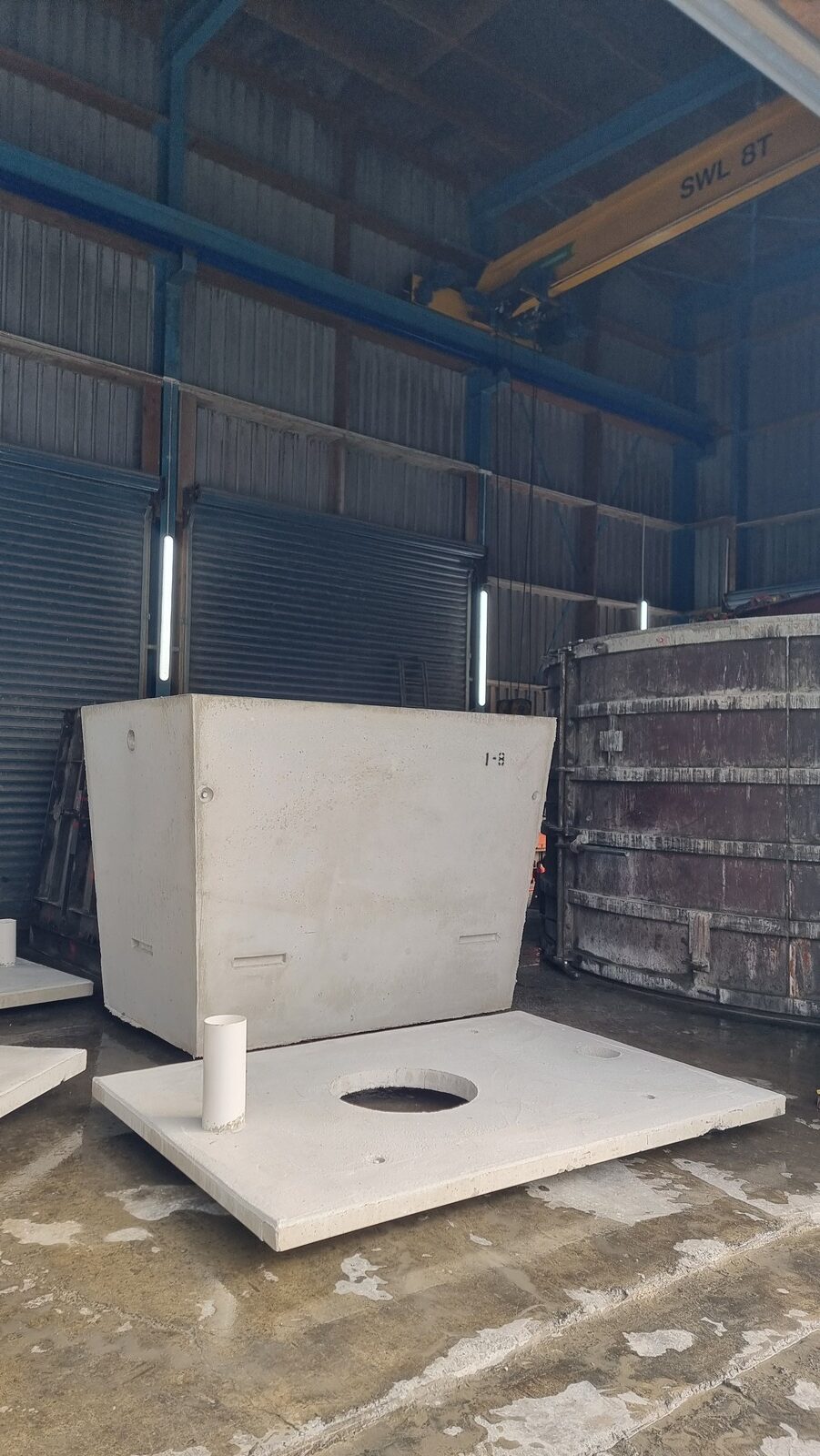

Supplied with a T1800 outlet Bio Filter and a standard non-trafficable precast concrete lid, suitable for up to 150 mm of soil cover.
Custom options
Speak to Wade about the requirements for your site and wastewater system.
| Nominal capacity | 4,500 litres |
|---|---|
| Length | 2,440 mm |
| Width | 1,700 mm |
| Tank height | 1,850 mm |
| Approximate total height with lid | 2,000 mm |
| Inlet height | 1,650 mm |
| Outlet height | 1,550 mm |
| Approximate total weight | 3.25 tonnes |
| Standard lid | Non-trafficable precast concrete |
| Maximum soil cover | 150 mm above the lid |
| Outlet filter | T1800 Bio Filter included |
| Available configurations | Single chamber, double chamber, or double chamber with pump chamber |
The septic tank must be installed in accordance with the approved wastewater system design and relevant local authority requirements.

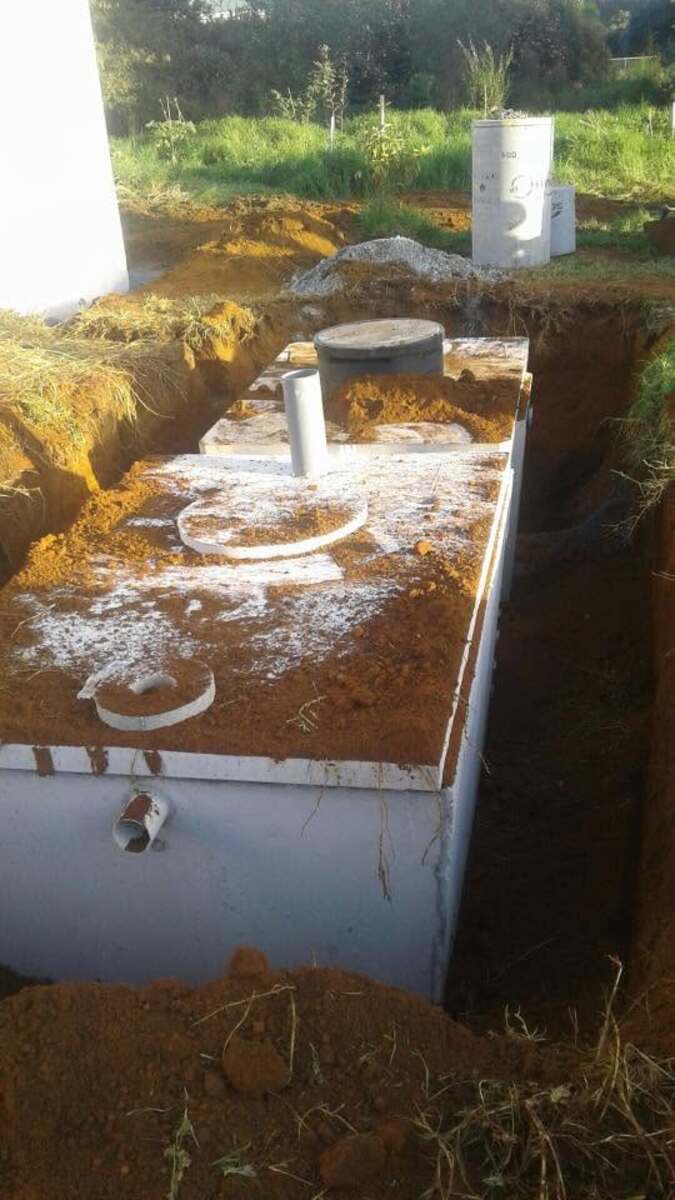

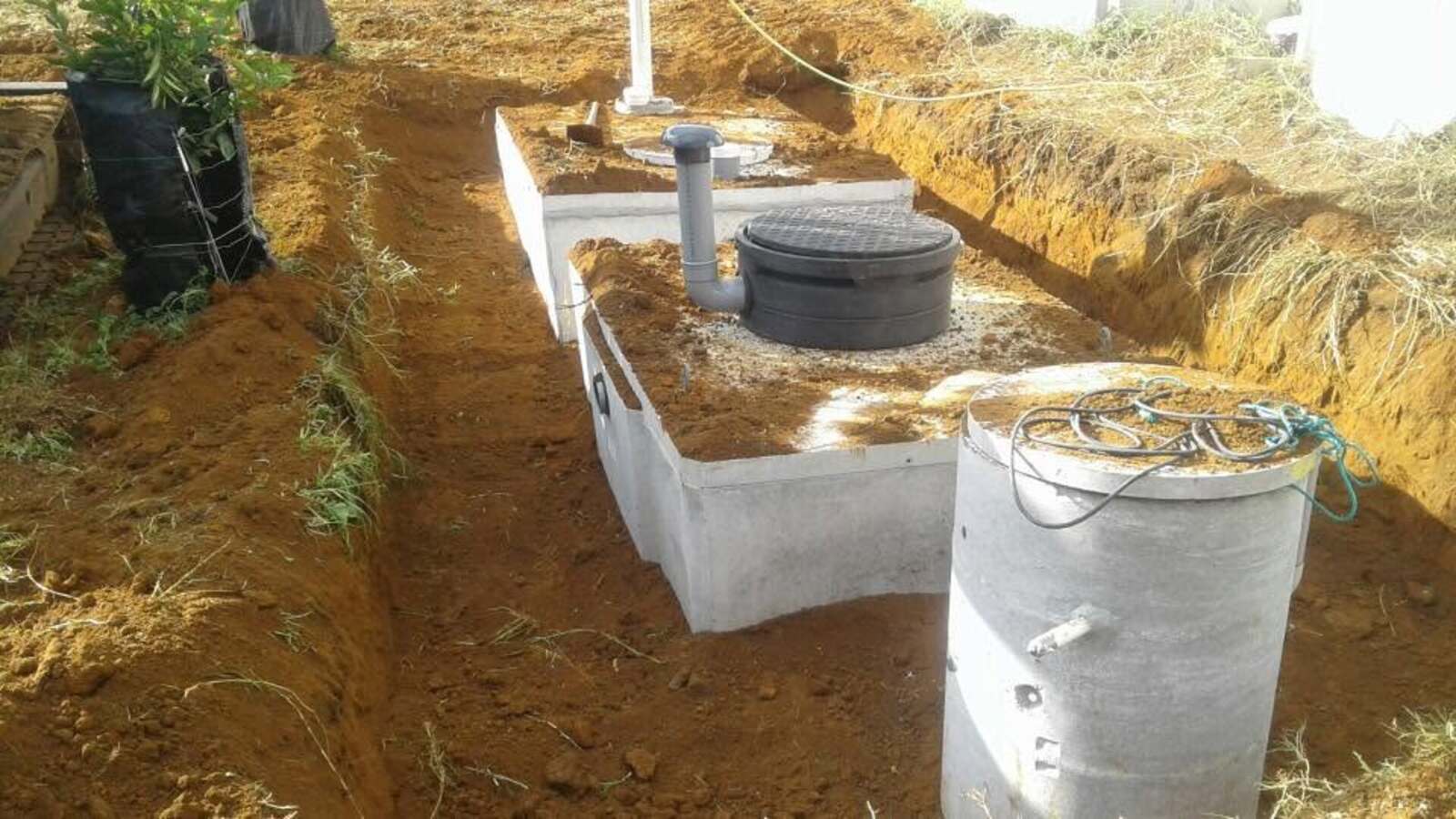

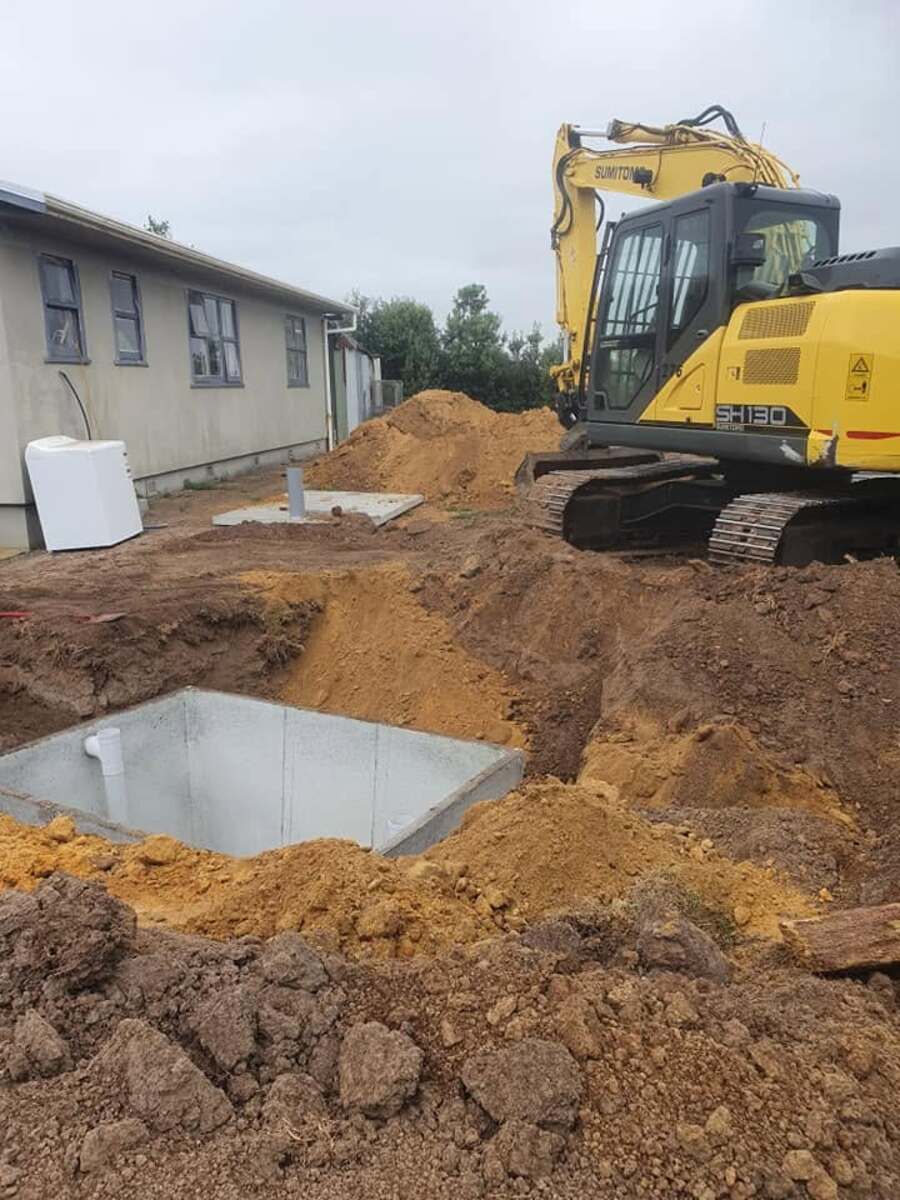

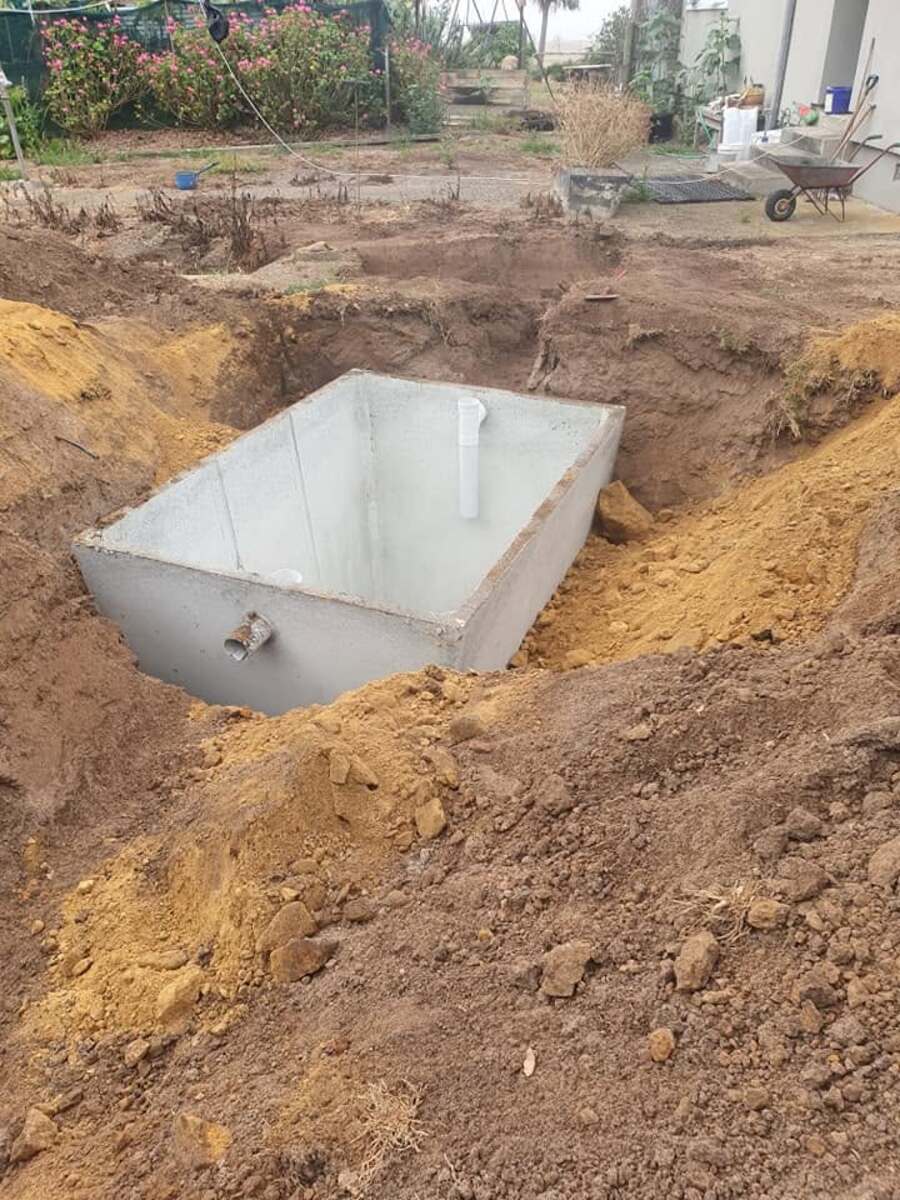

Install the tank level on a properly prepared, stable base, divert stormwater and surface water away from the tank and disposal field, and make sure the tank remains accessible for inspection, filter cleaning and pump-out.

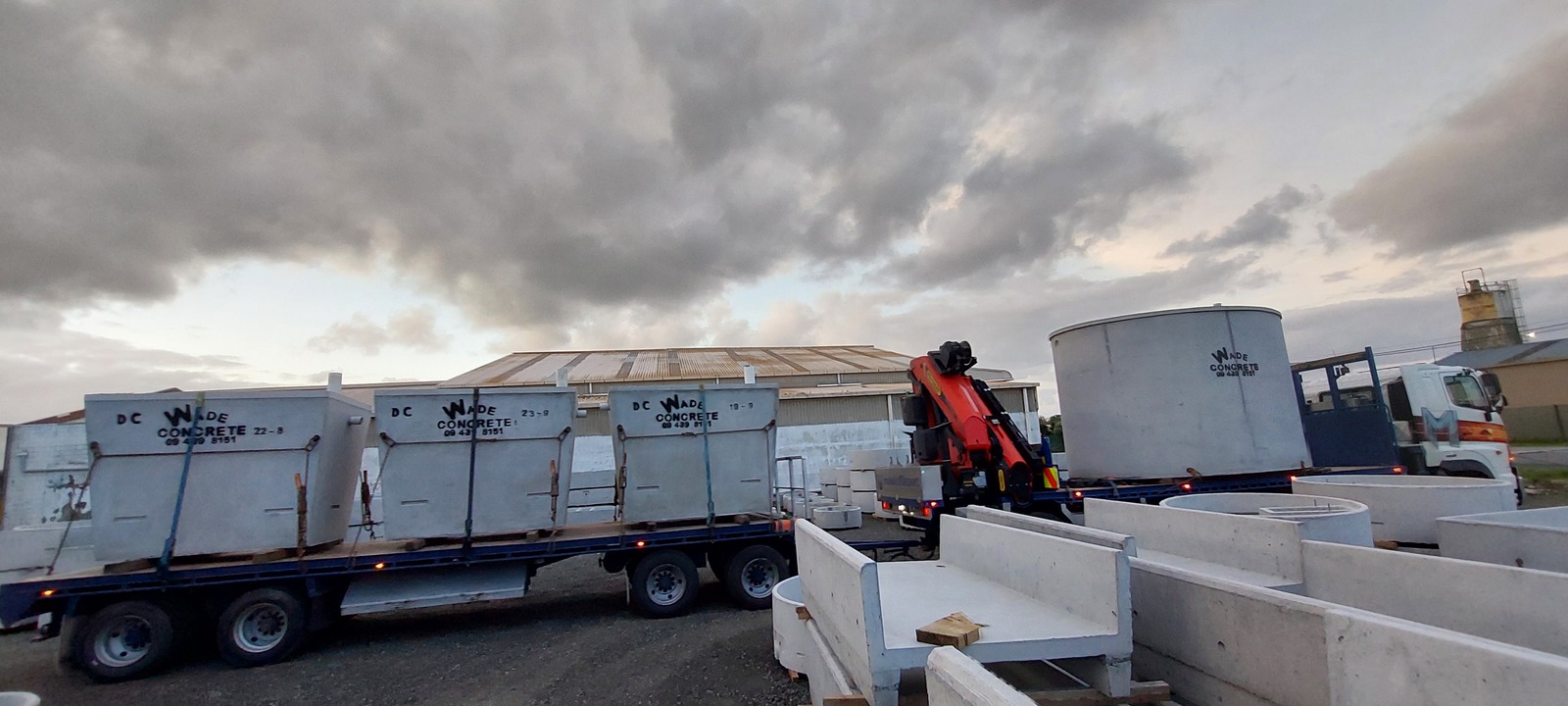

Placement is handled by the customer’s suitably equipped contractor. Wade can recommend experienced local contractors where required.
The standard tank is supplied with a non-trafficable concrete lid and can have up to 150 mm of soil cover above the lid.
Do not position the standard tank beneath driveways, vehicle accessways or areas subject to vehicle or other heavy loads. A bespoke trafficable lid can be supplied where required.
Have the tank emptied approximately every three years, or sooner if required, and inspect and clean the T1800 Bio Filter every six months.
Keep the access points clear and regularly check the disposal field for signs of wet or saturated ground.
Talk to our team about suitability, delivery and pricing for your site.
